Metal Cladding - Primo Soffit Panel | Morin Corp.

  • Use

    Exterior metal cladding
  • Applications

    Rainscreen wall panels, rear-ventilated facades, cladding, metal walls
  • Characteristics

    Customizable finish, heavy gauge metal panels
  • Sizes

    Panel Depth: 1” (25mm) | Cover Width: 12” (305mm) no reveal or 1” reveal option | Lengths: 5’ (1.52m) to 15’ (4.572m) standard. Shorter and longer lengths available

1 Catalogs and Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Morin Corp.

More about this product

Morin Corporation is specialized in roll forming of architectural heavier gauge single skin metal wall and metal roof systems. They manufacture over 100 profiles of architectural panels for any size project. Alongside metal panels, Morin Corporation offers a complete suite of metal finishes which include perforations, corners, coordinated louvers and fasteners, and custom extrusions.

Primo soffit panel is designed to compliment Morin's range of metal wall and metal roof systems.


Surface Options Smooth surface, 2 ribs, or vented
Galvalume / Zincalume Painted Steel Options

22 GA (.76mm)(non-vented) / 24 GA (.60mm)

Aluminum Options .032 GA (.80mm) / .040 GA (1mm)
Zinc Options .7mm and .8mm

Air flow specs

5.376 Square Inches per Linear Foot based on the following formula:

  • 14 perfs per ft. X 4 rows X (.06” depth x .4” long x 2 open sides) X 2 perf dies within the panel.


No reveal One reveal
Primo | Morin Corp. Primo | Morin Corp.

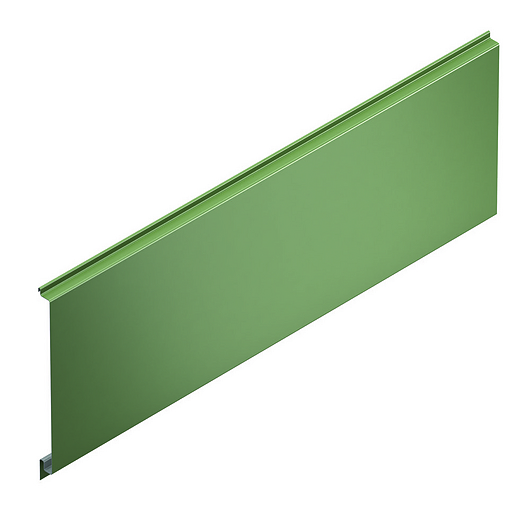

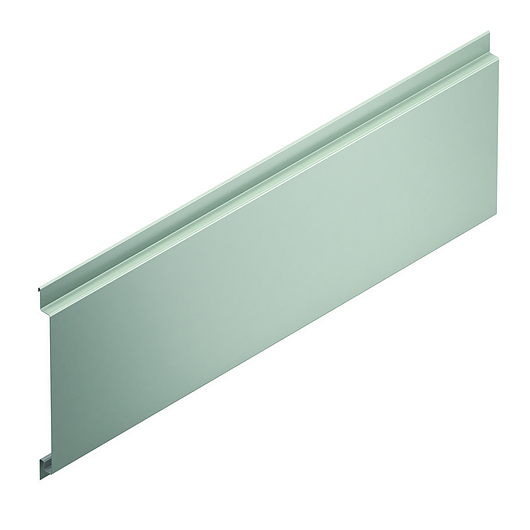

PS-12-F (Smooth) PS-12-F-1 (Smooth)
Primo | Morin Corp. Primo | Morin Corp.

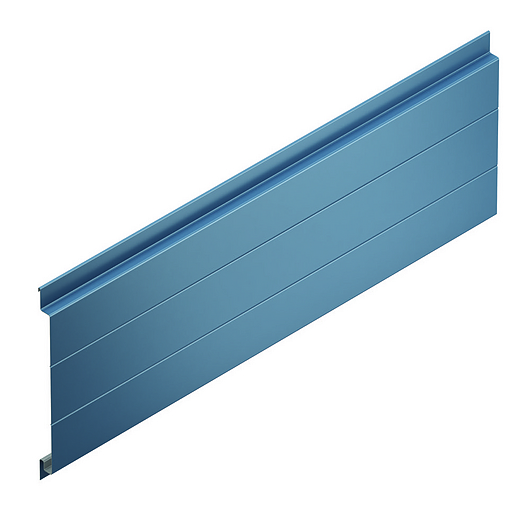

PS-12-R (2-ribs) PS-12-R-1 (2-ribs)
Primo | Morin Corp. Primo | Morin Corp.
PS-12-V (Vented) PS-12-V-1 (Vented)

Color and Finish Options
Aluminum and Steel

  • Standard (Fluropon® PVDF – Kynar 500®)
  • Premium Colors MICA (Fluropon Classic® II PVDF)
  • Premium Colors METALLIC (Fluropon Classic® PVDF)
  • MorinCorp custom color matching services
  • Other finishes available

Click here to request a product sample
