UseWall and ceilings
ApplicationsCultural, public, education, hospitality, corporate, music halls and auditoriums
CharacteristicsAcoustic absorption, choice of textile finishes, patented tensioning mechanism, customizable panels
SizesBespoke: Min. 200 mm / Max. 6000 mm | Panel depth: 49mm
CertificationContributes to environmental building certification schemes: DGNB, LEED, BREEAM and HQE, CE mark, US Fire Class: ASTM E84, Greenguard and Greenguard Gold certifications on textiles
Guarantee10-year product warranty
Soft Cells are acoustic panels from Kvadrat Soft Cells, primarily used as building components, they are also suitable for post-fitting. Made with recycled aluminum and with a textile finish the acoustic panels are tensioned to withstand humidity and temperature conditions. They can be re-upholstered and their components reused as often as required.
Soft Cells Broadline panels incorporate acoustic padding behind a textile layer. Typically, this model offers Class A broadband sound absorption, as per ISO 11654.
Sound conditioning: 125-5000 Hertz
- Spaces with severe to moderate sound reverberation problems and noise
- Spaces with limited free wall or ceiling surface for acoustic regulation
- Lowering overall reverberation due to broadband absorption

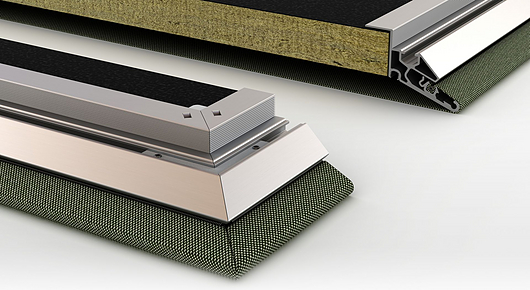

- Aluminum frame
- Front fabric
- Acoustic Padding
Soft Cells feature a patented mechanism to keep the fabric under constant tension by suspension springs, creating a drum-skin effect. This prevents sagging.
Textiles and colors
Soft Cells are available in a comprehensive selection of textiles, which come in a wide variety of colors and styles. Soft Cells can be specified to perfectly match other textiles in an interior project, as Kvadrat offers premium quality curtains and upholstery textiles too. All fabrics have been tested for sound absorption according to EN ISO 354.
|Textile name||NRC |
Installed at 55mm
|Acoustic class||NRC |
Installed at 200mm
