Ceiling and Wall Panels - Fusion | ASI Architectural

  • Available in

  • Use

    Interior walls and ceilings
  • Applications

    Residential, commercial, corporate
  • Characteristics

    Lightweight, impact resistant, rigid, various finish options, acoustically absorptive
  • Format

    Panels
  • Sizes

    3/4″ thickness 2′ x 2′, 2 x 4′, 2′ x 6′, (Nominal) 2′ x 8′ | Available in custom sizes up to 4′ x 8′
  • Certification

    Fire Rating: Class A, may contribute to LEED® credits
ASI Architectural Logo

Contact manufacturer

ASI Architectural

ASI Architectural Logo

Contact manufacturer

ASI Architectural

More from ASI Architectural

Website Phone

More about this product

Fusion acoustic ceiling and wall panels from ASI Architectural feature wood veneer face-covering lightweight MDF or Particleboard. Panels can be flat or with a variety of perforation options. Acoustical backer can be installed above a Fusion ceiling or behind Fusion wall panels.

Features

  • Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
  • Panels are custom programmed to have a uniform margin around the perimeter of the panel
  • Custom sizes available to fit irregular installations

Types

Panel


Attaches to HD 15/16” T-bar grid with clips for 100% accessibility

Lay In


Lays in to HD 15/16” T-bar grid for 100% accessibility

Tegular Lay In


Lays in to HD 15/16” T-bar grid for 100% accessibility

Perforation Diameter

Standard perforations are available in 4mm, 6mm, and 8mm diameter holes spaced 16mm or 32mm on center in both square and diamond patterns. Custom diameter, spacing, and patterns are available, as well as slotted designs.

Core materials

  • Class A Fire Rated Particle Board
  • Class A Fire Rated MDF

Acoustical absorption

When perforated, the ASI Architectural panels are acoustically absorptive, the NRC varies based on the hole pattern. For further acoustic absorption, Soundtex can be applied to the back of perforated panels in 1″ and 2″

Mounting

  • Ceilings: Lay-in or tegular lay-in; torsion spring
  • Walls: Z-clip / Z-bar

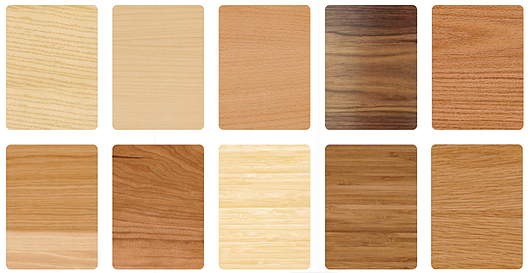

ASI Architectural Wood Finishes

  • Clear lacquer top coat
  • Stained to match
  • Touch-up finish available for field application
