Load Bearing Facade Systems | Island Exterior Fabricators

Share in Whatsapp
  • Use

    Building Envelope & Structure (Exterior Glazing & Cladding), Façade & Structural System (Pre-fabricated / Unitized)
  • Applications

    Corporate, Residential, Institutional, Educational, Hospitality, Healthcare and Cultural
  • Characteristics

    Shop-welded CFMF studs, exterior-grade sheathing, integral punched windows, fully-gasketed aluminum panel-to-panel joinery, AVB membrane coverage, complete with outboard-insulated rainscreen finishes.
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I agree to the Terms of use and the Privacy Policy.

More about this product

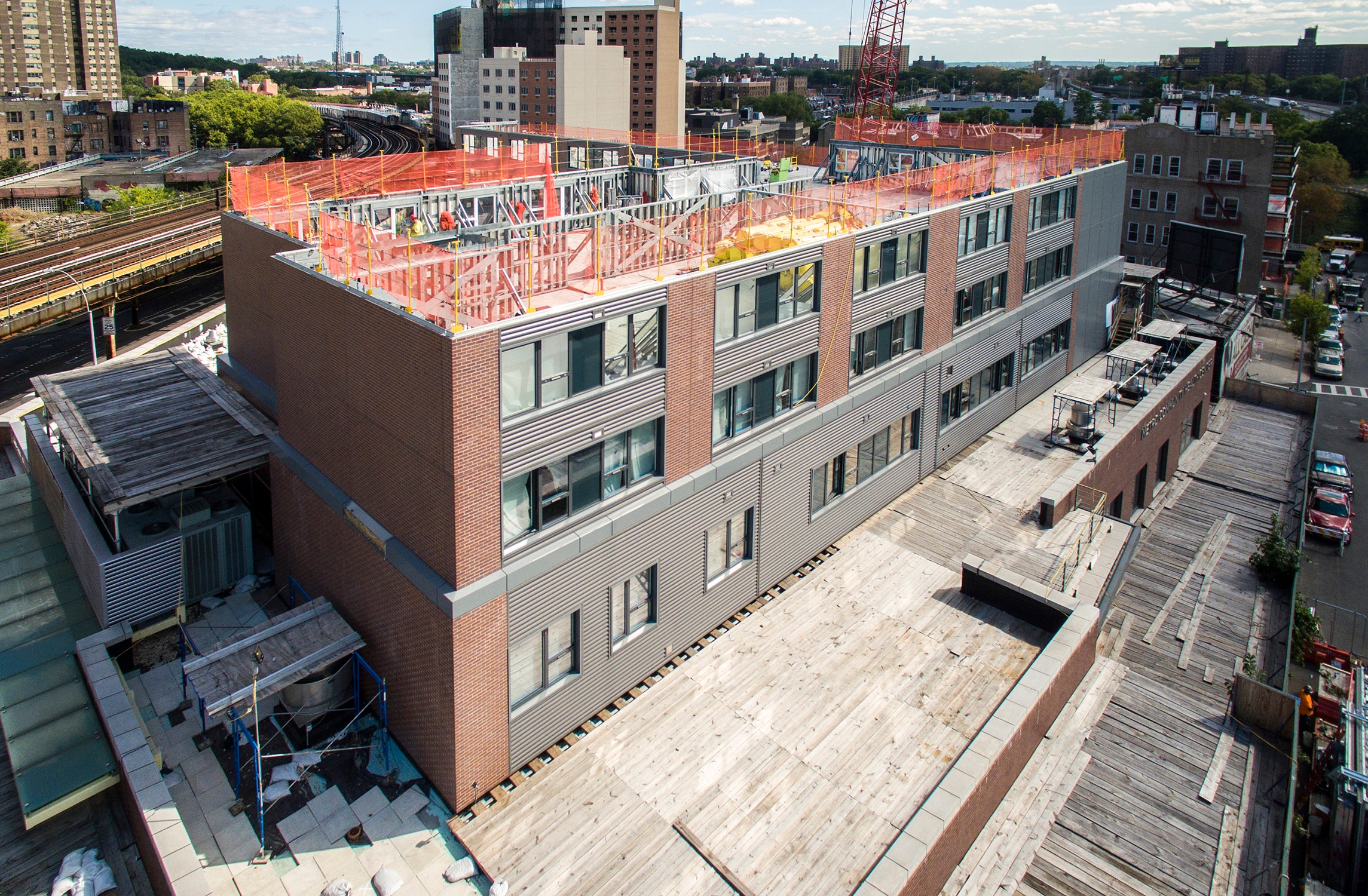

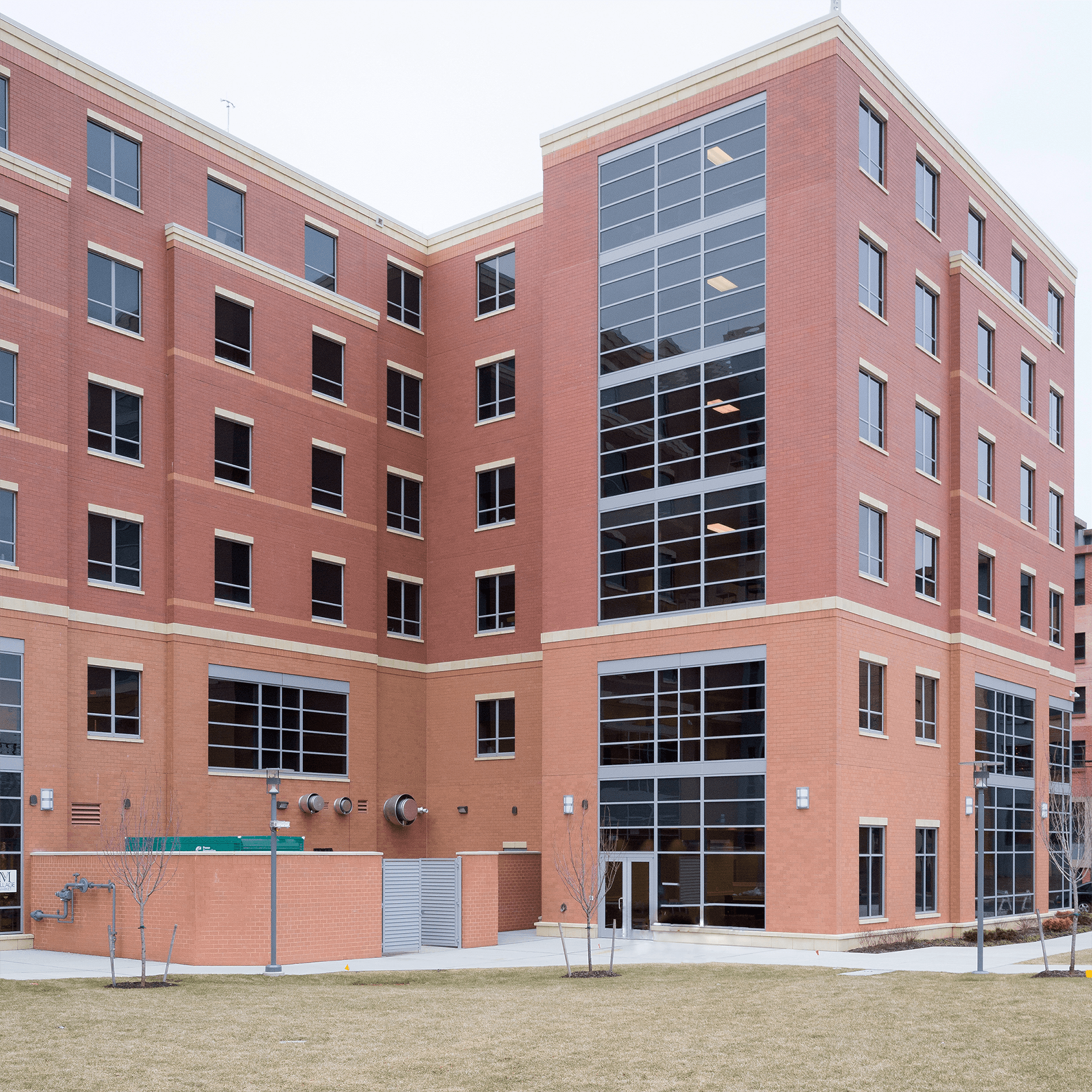

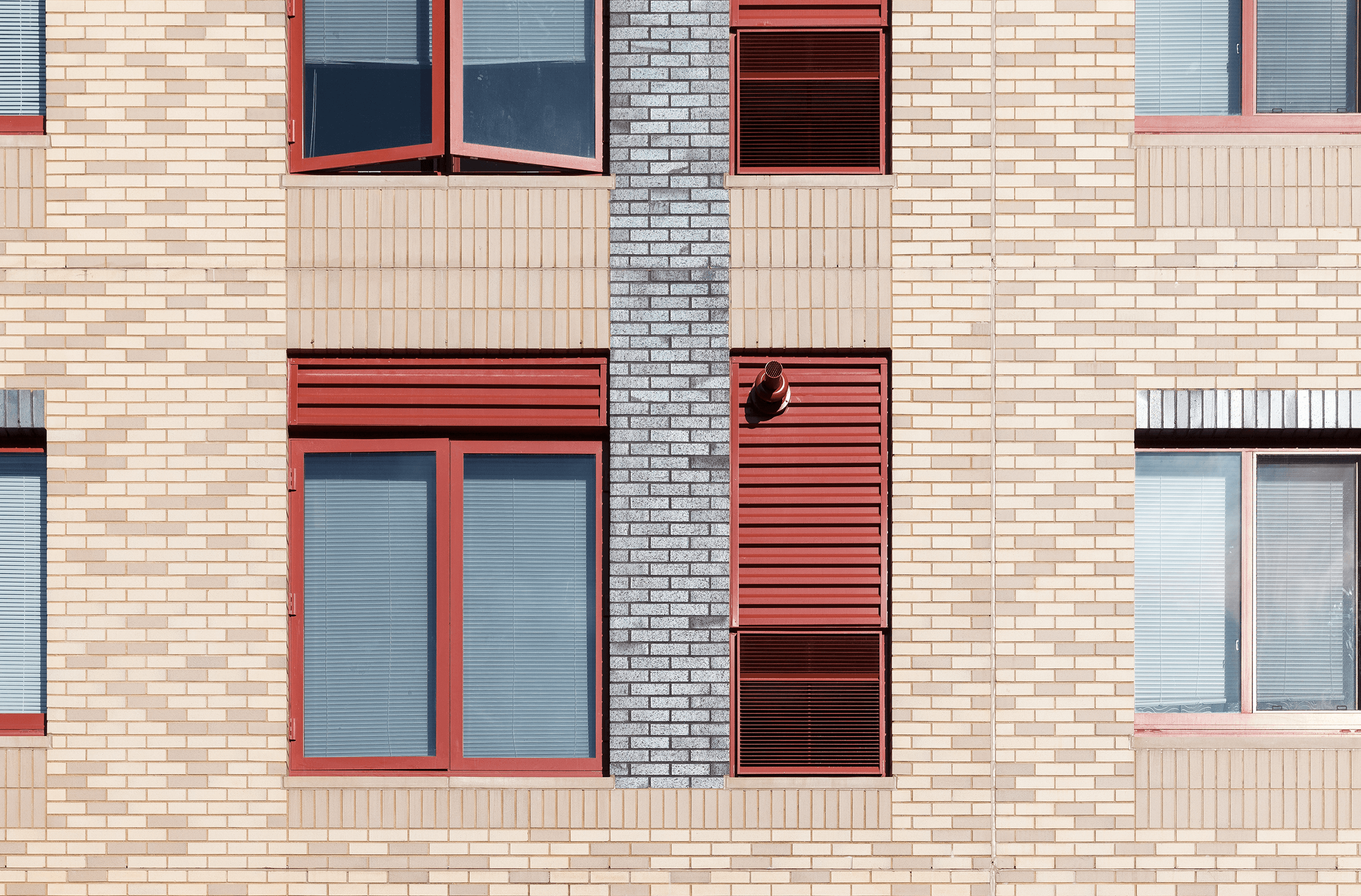

Island's loadbearing system takes the mega-panel façade assembly one step further, by integrating the steel framing with pre-cast concrete to provide a complete building structure. Exterior façade assemblies are finished and glazed over a loadbearing steel frame, while interior shear-wall panels accept drywall finishes and allow for the concrete plank to span over each floor. With this multi-trade fabrication and installation approach, it becomes crucial to identify engineering efficiencies while simultaneously detailing complex intersections of façade and structural systems. Island works with key subcontractors to coordinate the installation of concrete floor slabs and egress cores, creating a highly unique “kit-of-parts” building methodology.

undefined

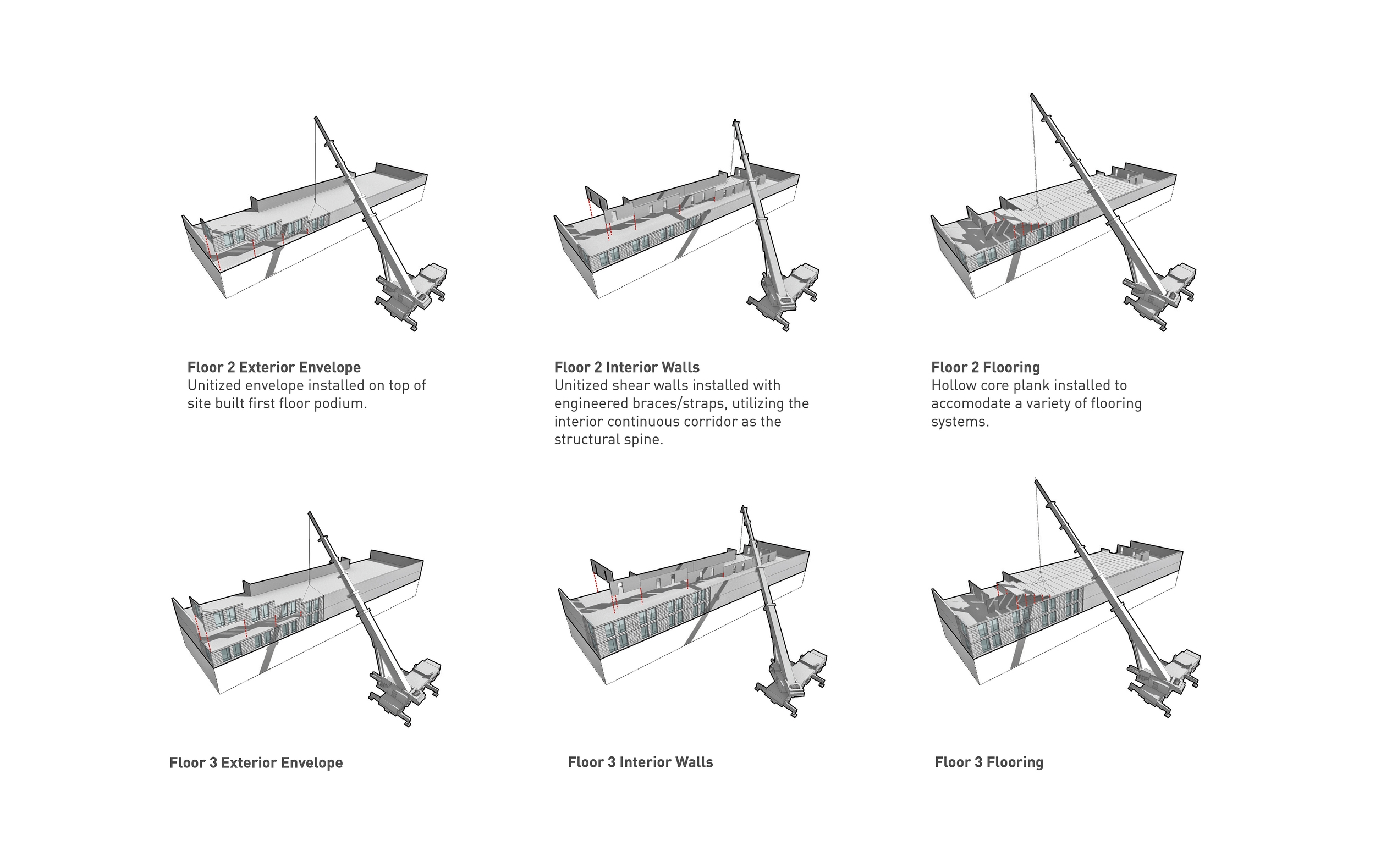

Diagram of typical Load Bearing System assembly process.

Island Exterior Fabricators - load bearing system

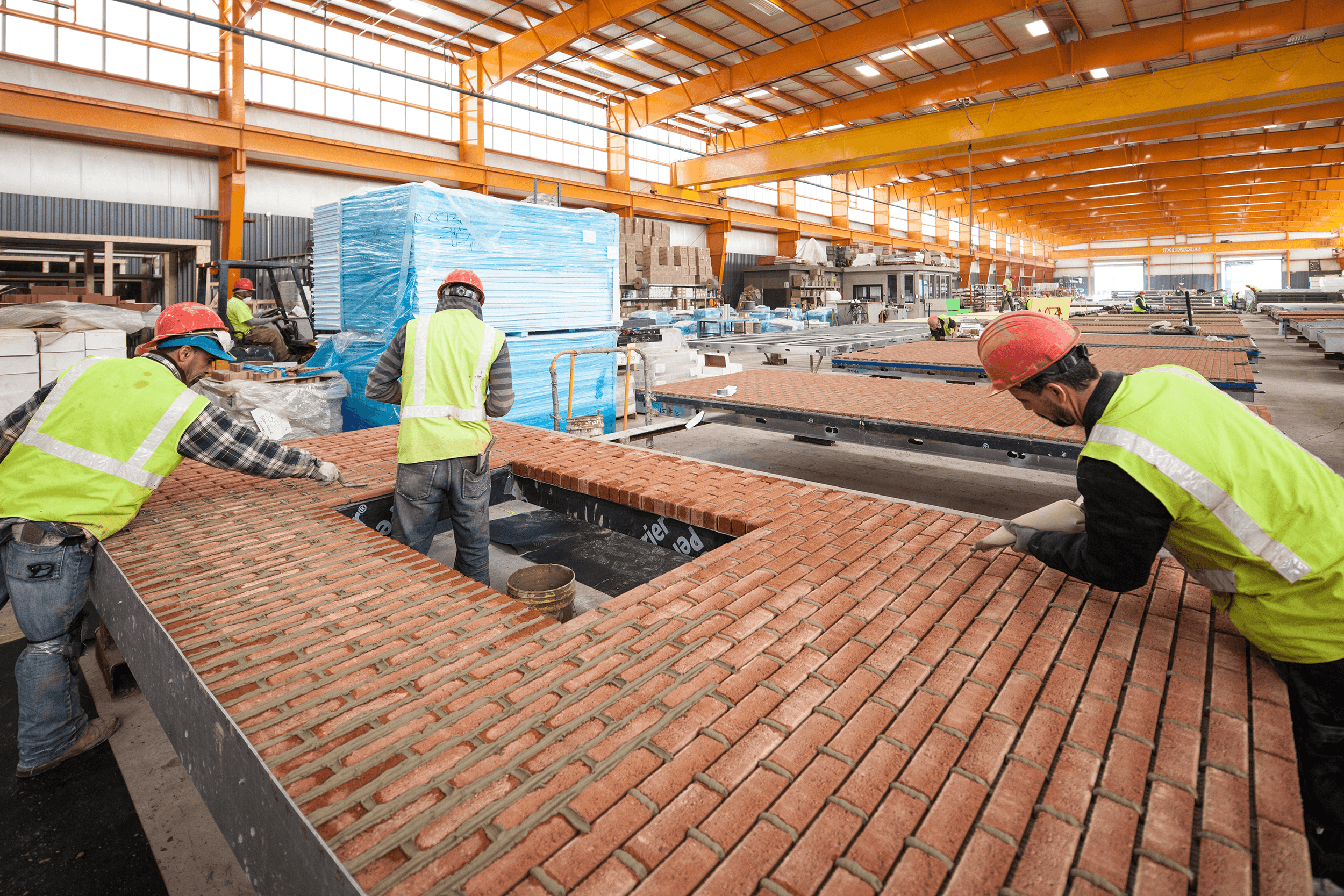

Fabrication of Load Bearing Facade System in Island’s facilities in Calverton.
