Panel Fastener for Drywall - Low Profile Range | Fastmount®
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Hidden Joints
  4. Panel Fastener for Drywall - Low Profile Range

Panel Fastener for Drywall - Low Profile Range | Fastmount®

Share in Whatsapp
  • Use

    Wall panels
  • Applications

    Architectural, marine, aviation and recreational vehicles
  • Characteristics

    Require less depth, lateral movement in female clip half, the clips are interchangeable within the range, install into various materials, ideal for drywall paneling, 5kg pull out load per clip, hidden fixing, easy panel removal, designed for use with drywall structure

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I agree to the Terms of use and the Privacy Policy.

More about this product

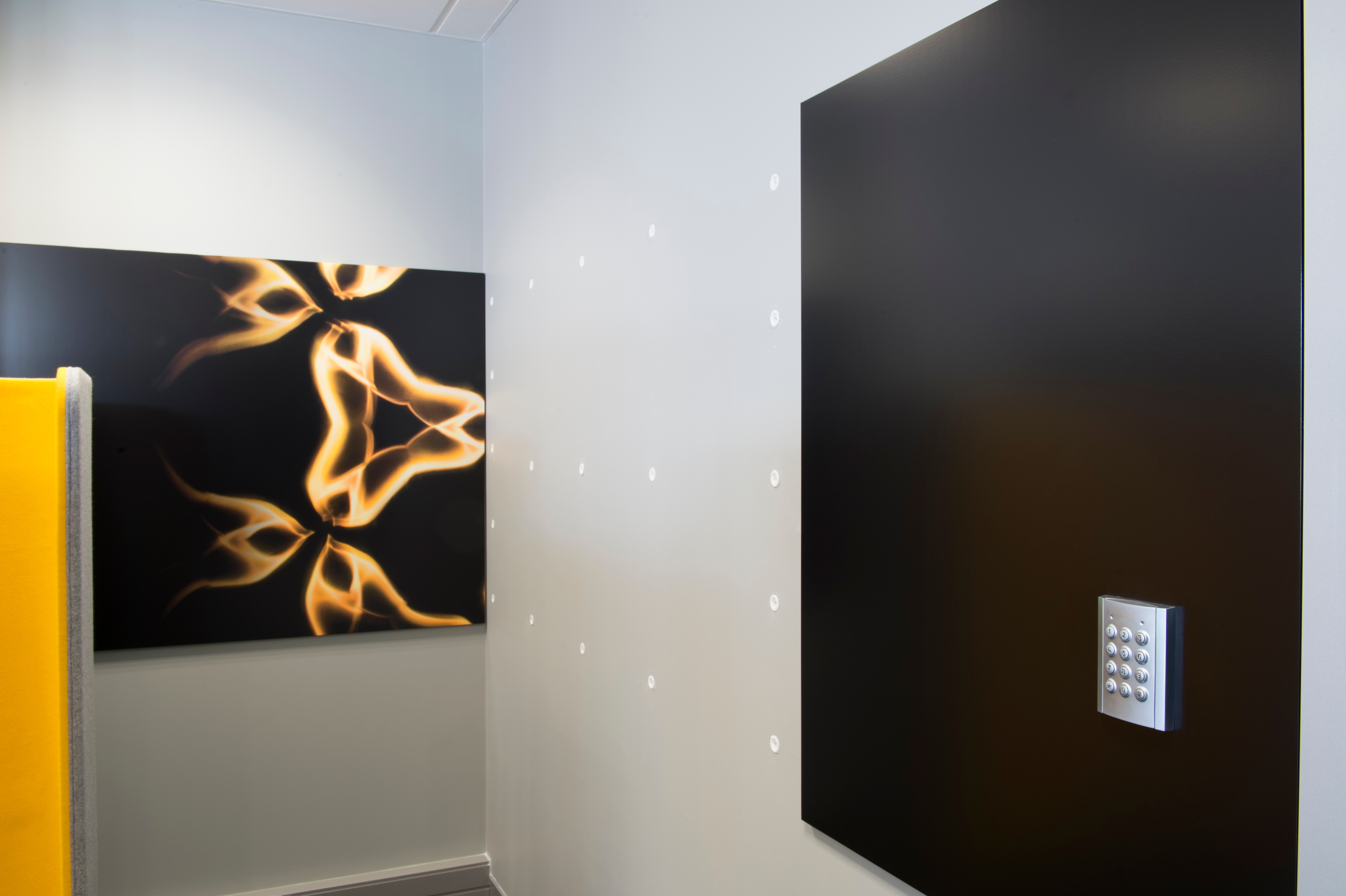

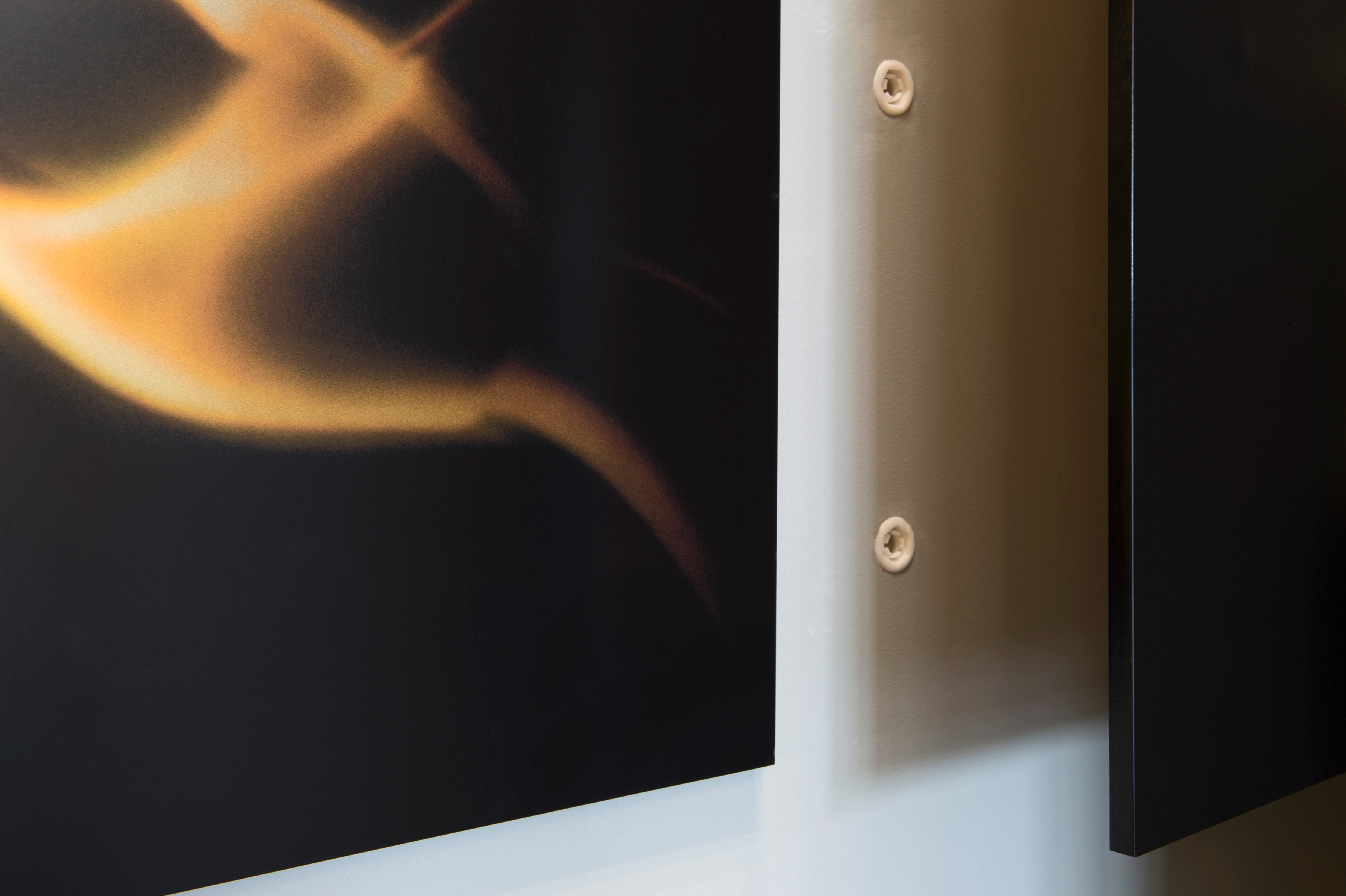

Fastmount™ Low Profile Range is ideal for applications that require less depth compared to the Standard Clip range,with lateral movement in female clip half. Interchangeable within the range. Installs into various materials such as MDF, drywall and foam core panels. Ideal for removable wall panels, acoustic panels, bedheads, thin walled panels and curved panels. Supplied with installation and removal tools.

undefined

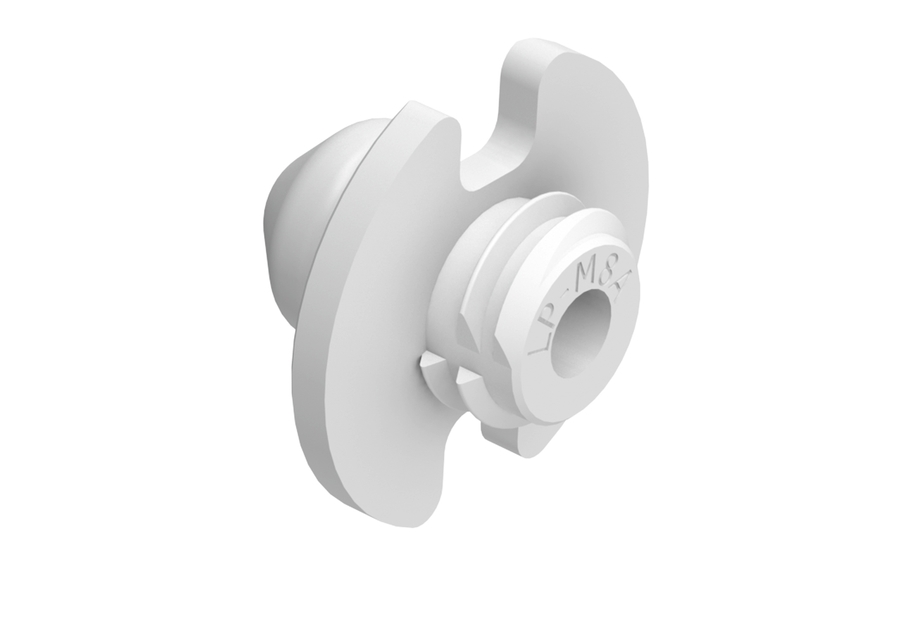

LP-M8A. Self tapping male
Fastmount™'s male self tapping low profile clip is ideal for plywood and MDF type boards, mounts into LP-F8 and LP-DF8 and has a 5kg pull out load per clip. It screws into 10mm hole with CT-09 and is installed with CT-10.

Benefits

  • Invisible fixation
  • Self-tapping in wood (10mm minimum thickness)
  • Perfect alignment of the panel and secure fixation in all circumstances
  • Removing and installing the panel without constraint
  • Resistance by clip: 5kg
  • Insensitivity to bending or dilation of panel and support
  • Material: White acetal copolymer

Applications

  • Suitable for painted panels,lacquered or dressed
  • Acoustic panels
  • New construction or renovation
  • Headboards, works of art
  • Composite panels and thin panels
  • Use with: LP-M8A and LP-SM8AS.

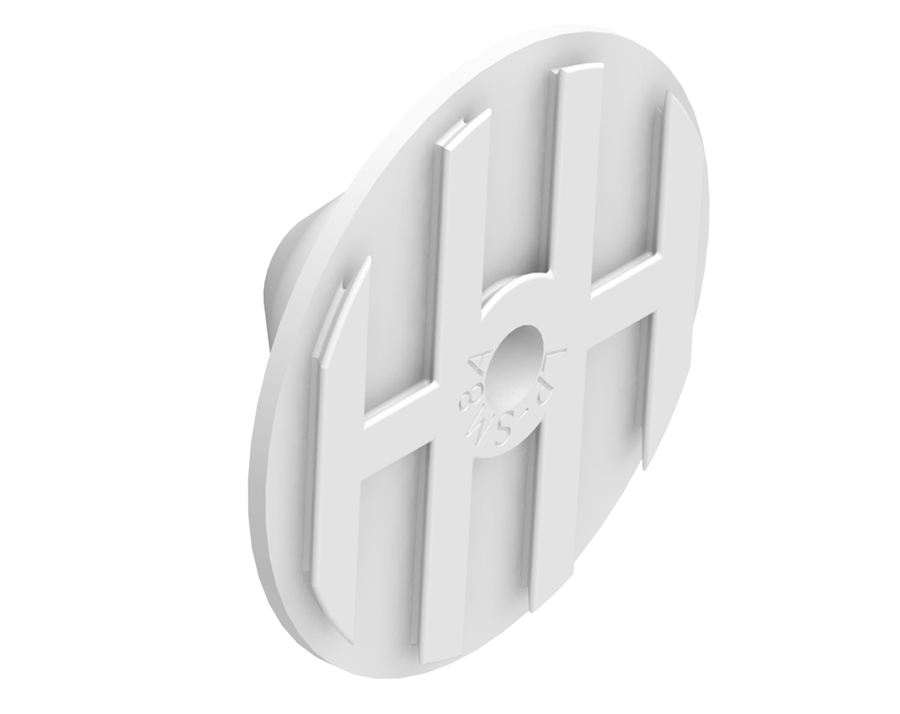

LP-SM8AS. Surface mount male
Male low profile surface mount clip with SuperGroove base for thinner panels. It mounts into LP-F8 and LP-DF8 and has a 5kg pull out load per clip. Screw fix with countersink 4 gauge screw or fix with Fastmount Supergroove Adhesive or other suitable epoxy glue. No special tools required for installation. Perfect for applications with less depth.

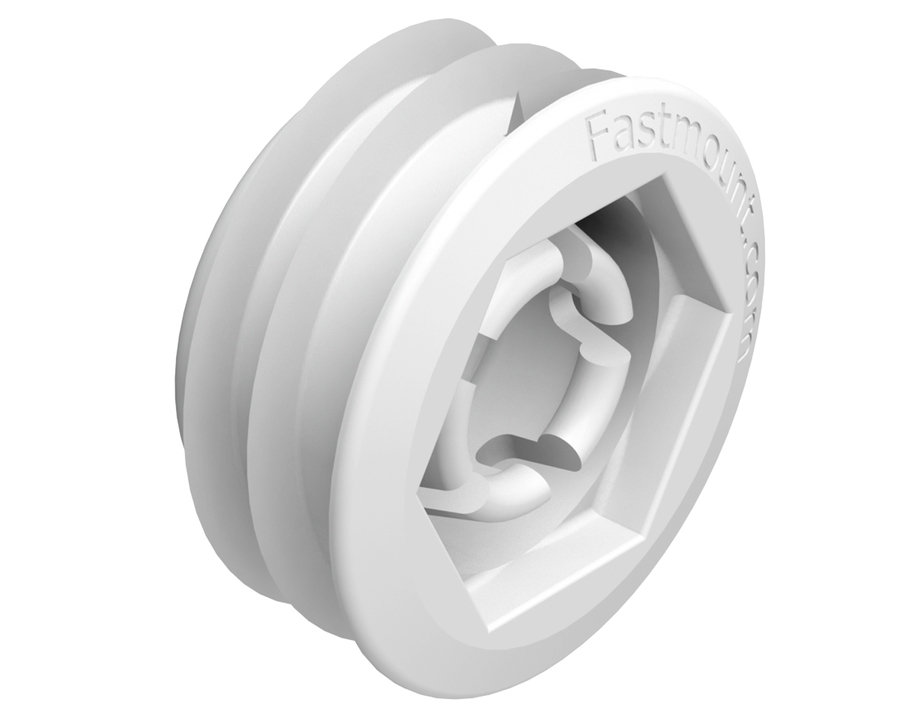

LP-DF8. Self tapping coarse thread female
Low Profile clip LP-DF8 is designed for soft core material, self taps into plasterboard (drywall) and is used with male Low Profile clips, centre point and install tools.

undefined

Benefits

  • Hidden fixing
  • Self taps into drywall plasterboard min. 10mm thick
  • Perfect panel alignment with secure mounting every time
  • Remove and refit panels in any sequence multiple times
  • 5kg pull out load per clip
  • Allows for flexing and expansion of panel
  • Material: White acetal copolymer

Applications

  • Covered or painted and prefinished panels
  • Acoustic panels
  • Refits and upgrades of existing installations
  • Bed heads, artwork
  • Use with: LP-M8A, LP-SM8AS.

For more information see Fastmount™'s catalogue.
