Concrete Facade - formparts | Rieder Group

Share
  • Use

    Facades; as a refined visual and for sun protection
  • Applications

    Educational, commercial, hotel, culture and corporate applications
  • Characteristics

    Single pieces with low weight, quick assembly, sustainability, and fire protection
  • Colors

    Available in 12 colors
  • Sizes

    Max. unrolling width 1500 mm | Max. length: 5000 mm
  • Certification

    ISO 9001 & ISO 14001 certifications / A1 “non-combustible” as per DIN 4102.
You will be contacted by Rieder Group at:
The product has been saved to the folder: My Downloaded Products

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

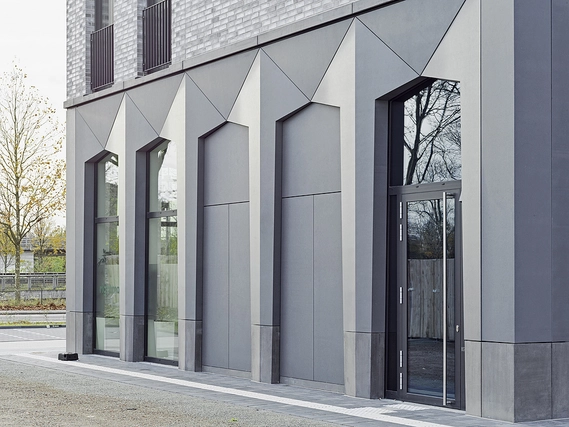

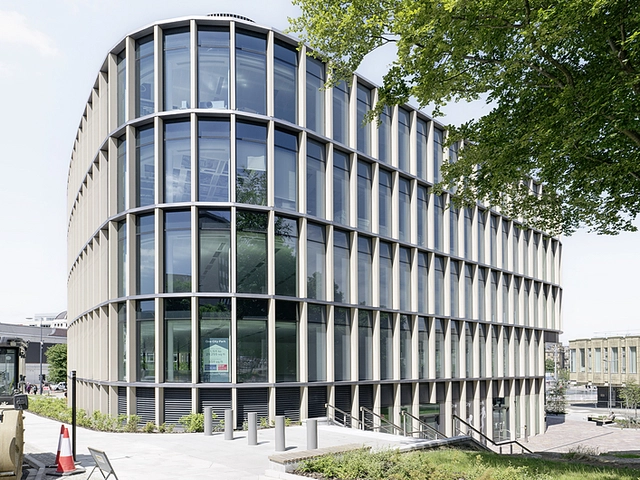

As monolithic concrete fins, formparts offer a high degree of flexibility and a wide range of design options for architectural concrete. The folded concrete elements with an optimized fastening system enhance glass facades and serve as a refined visual and sun protection. You can choose between two different versions: formparts.fab and formparts.mono.

formparts.mono

formparts.mono are shaped concrete elements, which are produced from a slab using folding molds. This results in the characteristic edge radius, which is between 3 and 15 mm. They are available with L- or U-cross section, as round arch, and as special shapes.

formparts.fab

The sharp-edged formparts.fab are assembled from several parts. With this method, the edges can be formed with a chamfer of 3 mm (+/- 1.5). The maximum unwinding width is larger, which means more combinations of different formed parts can be created. In addition, more surfaces and textures are available.

Due to the low weight of the formparts and their large spans, less substructure is required. Pre-assembly in the factory, independent of weather conditions, ensures a high-quality standard and quick assembly on site. The elements are simply mounted and then fine-tuned on site.

Glassfibre reinforced concrete is a natural material. Its natural raw materials create a special, concrete-like surface.

The formparts datasheet describes the various options for profiles in detail.

Colors

The authentic colors blend well into landscapes and correspond with nature and the environment. Color variations within a color tone are intended and enhance the liveliness of the building material, concrete. formparts can be easily combined with concrete skin.

undefined undefined
Color Chart Bricky Color Chart Greyscale
undefined undefined
Color Chart Timber Color Chart Pietra
