Aamchit Courtowers / Hashim Sarkis

  • 02:00 - 21 November, 2016
Aamchit Courtowers / Hashim Sarkis
Aamchit Courtowers / Hashim Sarkis , Courtesy of Hashim Sarkis
Courtesy of Hashim Sarkis

Courtesy of Hashim Sarkis Courtesy of Hashim Sarkis Courtesy of Hashim Sarkis Courtesy of Hashim Sarkis + 46

  • Architects

  • Location

  • Area

    1392.0 m2
  • Project Year

    2016
        • Team

          Hashim Sarkis, Boulos Douaihy (Project Coordinator), Rola Idris, Sandra Frem, Wissam Chaaya, Samir Bitar, Pablo Roquero, Cynthia Gunadi, Penn Ruderman, Christopher Johnson, Charif Tabet, Helena Briones.
        • Construction Management

          Polygon, sal.
        • Structure

          Rudolphe Mattar
        • Mecanical

          Roger Kazopoulo
        • Electrical

          Roger Njeim HORTICULTURE: Exotica
        • More Specs Less Specs
        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

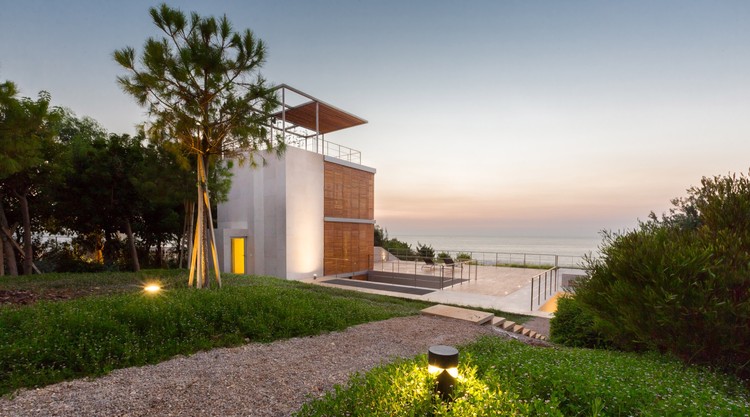

        Text description provided by the architects. The project consists of four single-family houses on the coast of Aamchit, Lebanon as well as the rehabilitation of the existing landscape and old houses.

        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis
        Site Plan
        Site Plan
        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

        The site slopes west towards the Mediterranean, its angle allowing for embedding the houses in the landscape in such a way that the front is open to the view and breeze whereas the other sides of the house are protected by earth. Each house consists of a double-layer wall that retains the earth from the east and slopes with the land north and south.

        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

        The framing/retaining wall is doubled to create insulation and service passage against the soil’s humidity and to draw in cool air into the house. The double perimeter wall also works as a structure and is used for all the services of the house, leaving the ground floor open. A courtyard is inserted in the back to enhance cross ventilation and create a microclimate in the extreme days of summer and winter.

        Section
        Section

        A tower that houses the bedrooms is placed at the southeastern side of the courtyard to provide shading. It works as a chimney to release the heat from the courtyard and the bedrooms. The stair and bathrooms are located at the east and south side to provide a thermal mass against the summer heat while the northwest corner is completely clear of structure, turning the bedrooms into balconies when the windows are open. The combination of the courtyard and tower produces a new house typology that is used with degrees of variation on the site as the development grows around its common facilities and the sea.

        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

        Landscape
        The general landscape strategy consists of creating a xeriscape that sets a transition from the ‘beach’ to the ‘mountain’. This is mainly achieved by the ground covering and associated plants and trees (ferns, weeds, flowers and olives). Along with the ground covering design, the site plan revives the old eucalyptus road as a pedestrian spine for the new houses.

        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

        Relying on a cut and fill strategy that preserves all the fill on site, the houses are placed in such a way as not to block each other by lifting the back houses on fill. Emphasizing the path network, shrubs are planted to enhance the experience of approaching the sea.

        Courtesy of Hashim Sarkis
        Courtesy of Hashim Sarkis

        View the complete gallery
