Circulo Mercantil Industrial Sports Center / Manuel Quijano Vallejo

  • 17:00 - 12 June, 2015
Circulo Mercantil Industrial Sports Center / Manuel Quijano Vallejo
Circulo Mercantil Industrial Sports Center / Manuel Quijano Vallejo, © Javier Orive
© Javier Orive

© Javier Orive © Javier Orive © Javier Orive © Javier Orive + 35

  • Technical Architect

    Alejandro Pallares Manrique
  • Calculation Structure

    Calconsa
  • Delineation

    Rafael Maguillo Gago
  • Works Director

    Manuel Quijano Vallejo
  • Execution Director

    Alejandro Pallares Manrique
  • Project Management

    Estudio GAAS. (Francisco Gamboa Antiñolo- Javier Gómez Ramallo)
  • Construction

    UTE Circulo Mercantil Eiffage-Inabensa
  • More Specs Less Specs
© Javier Orive
© Javier Orive

Text description provided by the architects. This Project is the outcome of many works, asked by Sevilla´s Circulo Mercantil Industrial, being carried out on its sports area.  These installations, which were inaugurated back to 1970, had hardly had any improvements through all these years. Therefore, the managing board agreed to scheme a plan to modernize this essential area within the club.

© Javier Orive
© Javier Orive

The project includes not only a new planning for the north parcel but also a multipurpose building construction. Previously, this north parcel was occupied by both a wasteland area and various unrelated and obsolete buildings which were located away from the river. This new project seeks to establish a building parallel to the river which creates a space looking out onto the river.

Ground Floor Plan
Ground Floor Plan

Due to its different requirements (i.e. new Club access, administration area, multipurpose rooms, sports and social areas), the building cannot be constrained by any recognized architectural typology. The final design is the consequence of dealing with parcel´s conditions, location and scheme for development.

© Javier Orive
© Javier Orive

It is designed as a rationalist architectural project avoiding any superfluous embellishment and prevailing simple geometric forms which convey practicality and functionality.

© Javier Orive
© Javier Orive

Its location, between the Guadalquivir banks and facing Maria-Luisa Park, is an essential factor to the approach of this new design.  Therefore, the new edifice is completely open towards the river thanks to an impressive glass façade.

© Javier Orive
© Javier Orive

On the first floor of the north façade, above parcel´s enclosure height and emulating Andalusia architecture with the typical “cierro” construction, an outstanding oriel is designed with views towards the unique Seville’s city Centre.

© Javier Orive
© Javier Orive

The transition between the new building and the current social one, has been worked out by placing the highest area close to the north median and stepping down through different decreasing enclosures until they reach the existing construction.  This action would allow us to take advantage of the numerous terraces featured along the building connected through external staircases.

© Javier Orive
© Javier Orive

One of the main project´s aims is to be environmentally friendly with an outstanding energy conservation.  The building is covered with components which enable the construction to provide an excellent thermal isolation.  The vast glass surfaces are located on the north and south, except for the east façade.  Solar protections are designed according to regulations.

Longitudinal Section
Longitudinal Section

A special design is incorporated concerning the air-conditioning installation and hot water production provides the building with a highly efficient energy conservation.  Geothermal is used in the air conditioning through two wells, extraction and injection, reaching out phreatic level. This facility will permit us to not use any machinery on the floor, leaving all space available for the club members´ enjoyment.

© Javier Orive
© Javier Orive

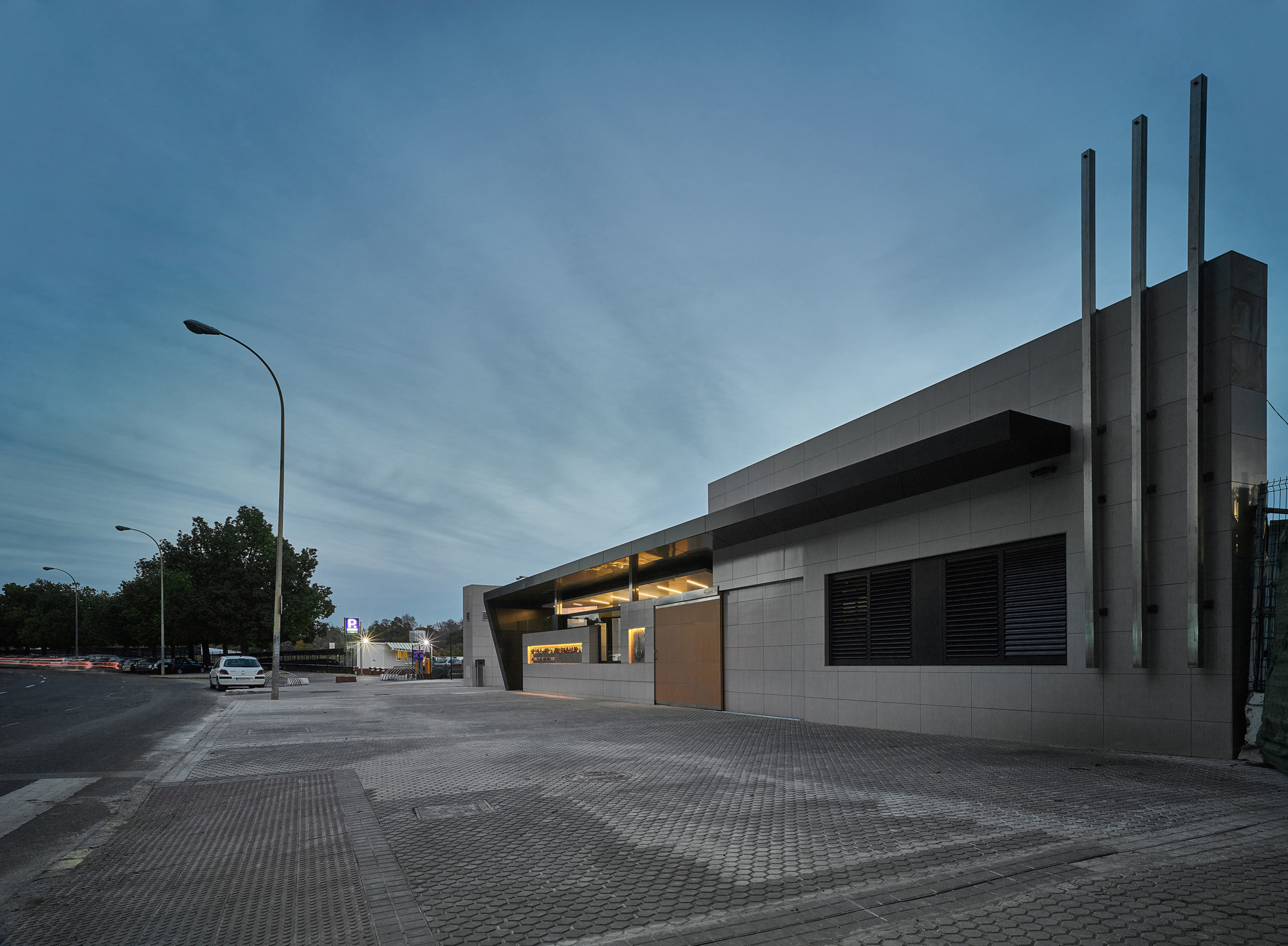

The new entrance to the club is designed as a unique piece conveying a powerful image easily recognizable from Presidente Adolfo Suarez Avenue.  In order to fulfill this idea, a stunning porch is built with a horizontal plane flying over the façade line and leaning on one corner of the Management Edifice while the other is folding itself to seek ground support. This entire block is covered with dark grey composite panel which is further echoed in other building areas.

© Javier Orive
© Javier Orive

Concerning the façade implementation towards the river, the new building is integrated by providing a modern architectural image, not only because of its correct scale within the environment but also with both its simple forms and light colors, almost white, all over the placated facade.

Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Circulo Mercantil Industrial Sports Center / Manuel Quijano Vallejo" 12 Jun 2015. ArchDaily. Accessed . <https://www.archdaily.com/640190/circulo-mercantil-e-industrial-de-sevilla-manuel-quijano-vallejo/> ISSN 0719-8884
