Single Family House with Garden / DTR_Studio Arquitectos

  • 01:00 - 20 November, 2014
Single Family House with Garden / DTR_Studio Arquitectos
Single Family House with Garden / DTR_Studio Arquitectos, © Javier Callejas
© Javier Callejas

© Javier Callejas © Javier Callejas © Javier Callejas © Javier Callejas + 18

  • Architects

  • Location

    Granada, Spain
  • Architect in Charge

    Jose Miguel Vázquez , Jose María Olmedo
  • Architects Collaborators

    Claudia Gutierrez, Alba Márquez
  • Area

    287.0 sqm
  • Project Year

    2014
  • Photographs

© Javier Callejas
© Javier Callejas

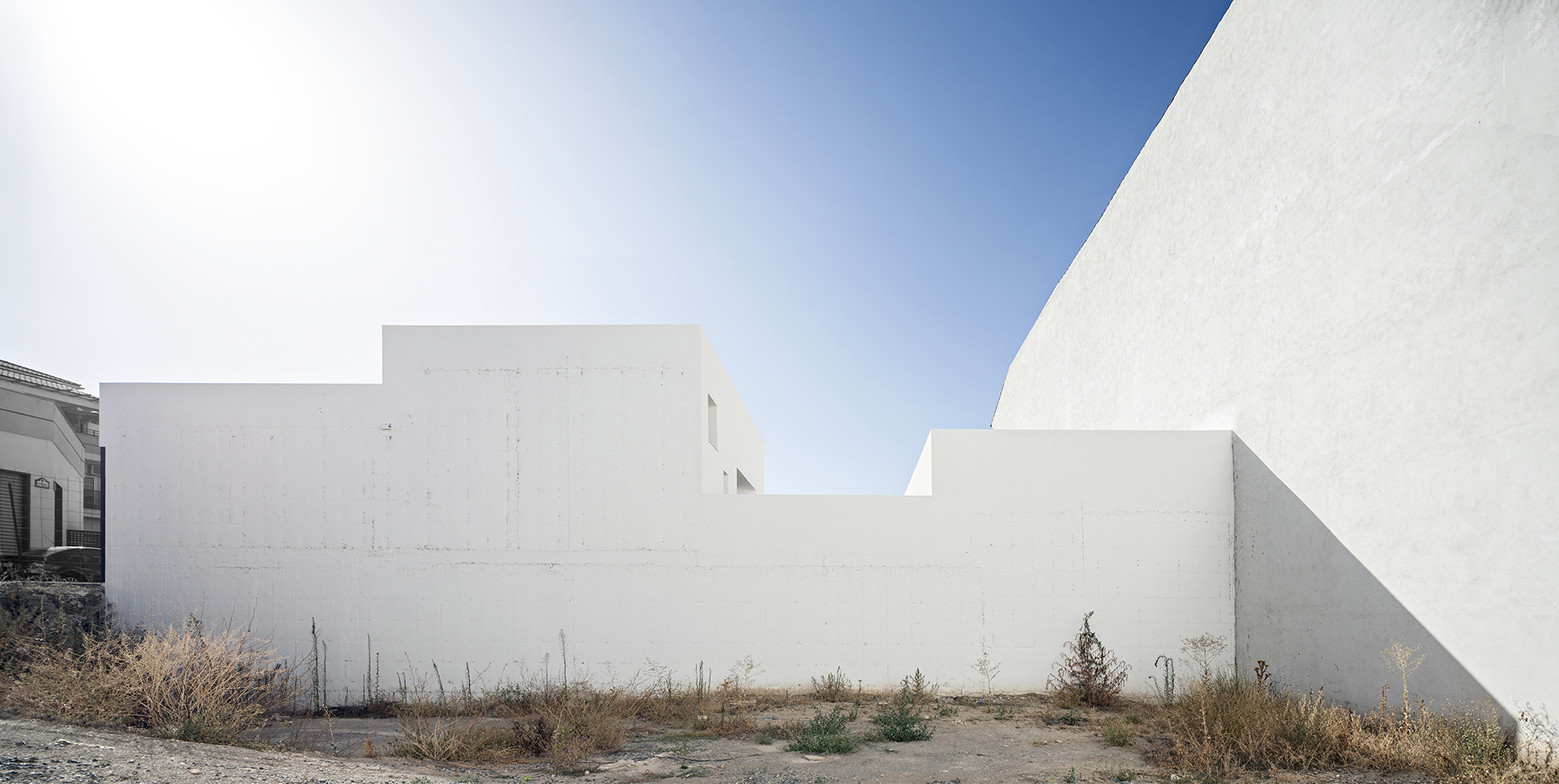

Text description provided by the architects. It is a single family detached house. The irregular plot has one side facing the street and another facing the field (in the future it will be a street) The other two sides are facing the neighbor’s walls .

© Javier Callejas
© Javier Callejas

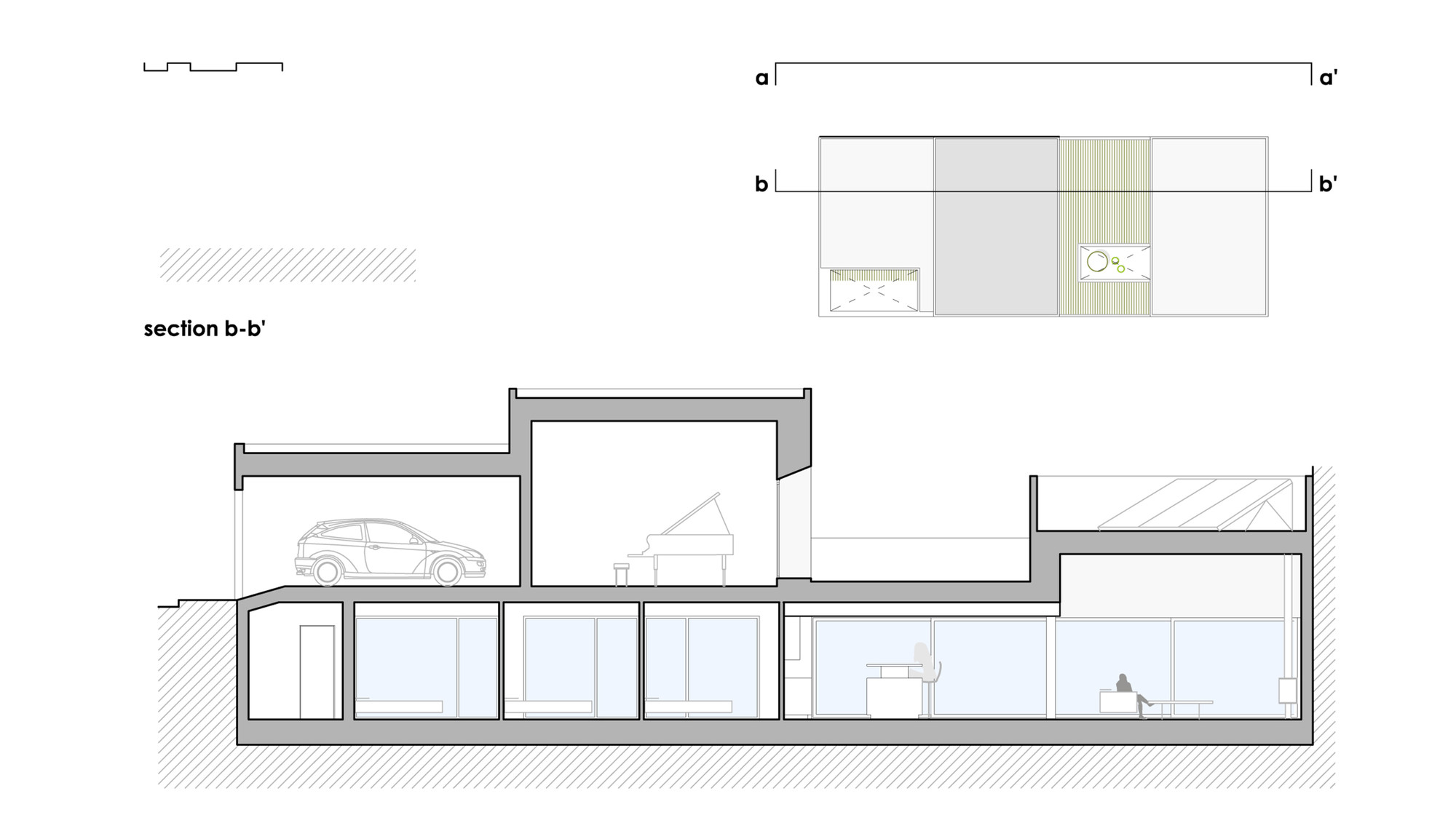

Section
Section

These two different contacts will be the generator of the project: boundary wall and meadow (Vega)  Our house doesn’t want to compete with the boundary walls, so we try to camouflage the house with them.  On the other hand the Project tries to respect the existing level of the meadow as our ground level, so we have the living area and the garden at the same height, avoiding dysfunctional stairs.

© Javier Callejas
© Javier Callejas

The building, with two floors, has been designed as a lineal compact object that occupies all the longitudinal side of the plot and is open to the garden and the field. The façade to the street is only a one floor building, and tries to go unnoticed next to the rest of the houses .

© Javier Callejas
© Javier Callejas

The ground level scheme looks for clarity and simplicity. There are two areas, divided by a patio: the day area designed as an open space concept, including living room, dining room and kitchen and the night area including three bedrooms and two bathrooms. Both areas are open to the garden with a continuous  window at the same height and set back two meters from the façade to get shadow .

Floor Plan
Floor Plan

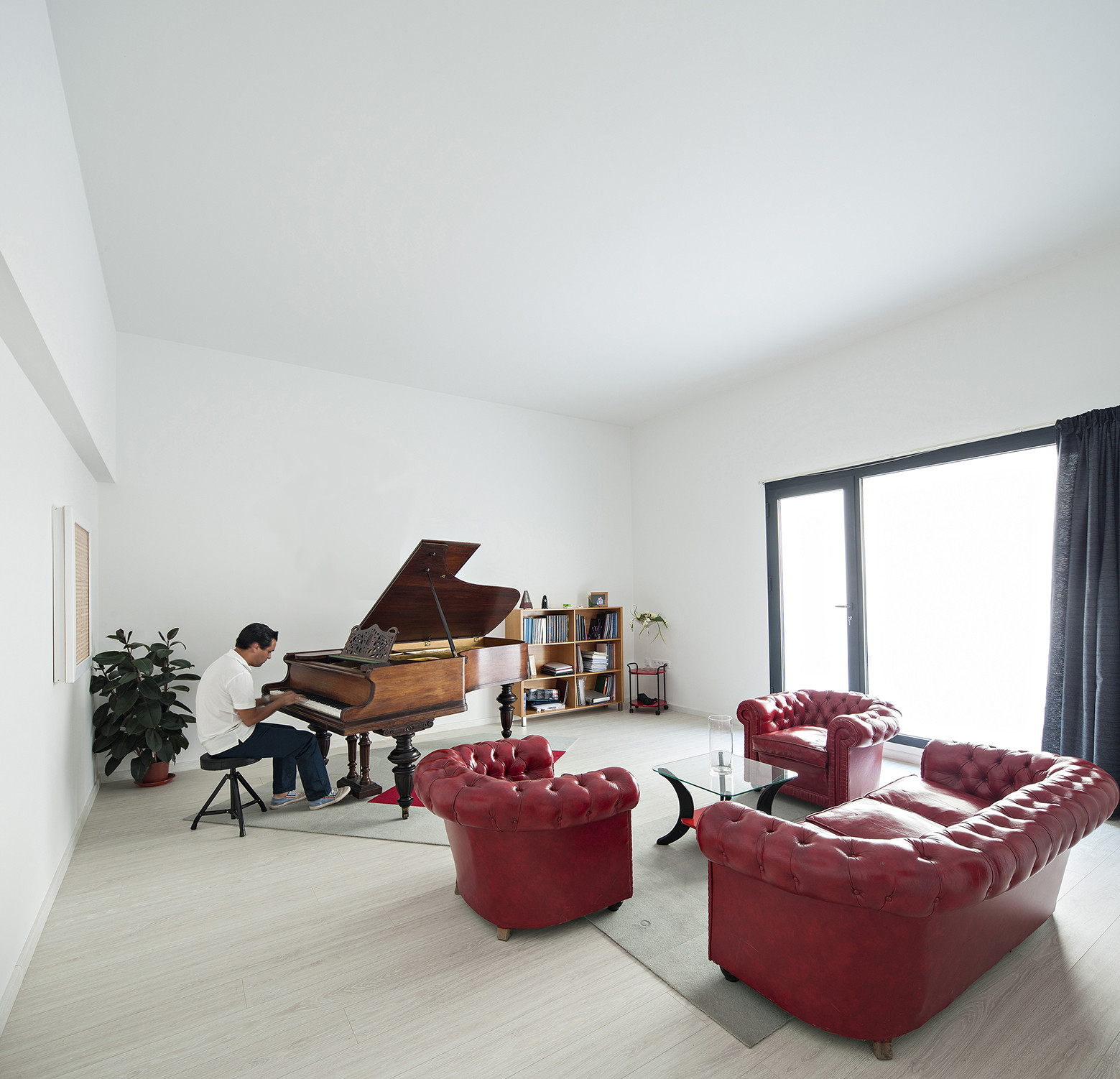

The upper level includes the pedestrian entrance, the car park and a big room as a Rehearsal room for the owner (an Opera singer). The finish of the house comes from the generator idea: white mortar as the boundary walls , grey steel sheet as the shadows and soil in the garden as the Meadow .”

© Javier Callejas
© Javier Callejas
Cite: "Single Family House with Garden / DTR_Studio Arquitectos" 20 Nov 2014. ArchDaily. Accessed . <https://www.archdaily.com/569163/single-family-house-with-garden-dtr_studio-arquitectos/> ISSN 0719-8884
