Falatow Jigiyaso Orphanage / F8 architecture + Gérard Violante

  • 01:00 - 27 August, 2014
Falatow Jigiyaso Orphanage / F8 architecture + Gérard Violante
Falatow Jigiyaso Orphanage / F8 architecture + Gérard Violante, © Vanja Bjelobaba
© Vanja Bjelobaba

© Vanja Bjelobaba © Vanja Bjelobaba © Vanja Bjelobaba © Vanja Bjelobaba + 27

  • Contractors

    EGENEB-TP (General contractor) / SEEBA (water supply, photovoltaic panels)
  • Client

    Association SEMAF Bamako – Association Falatow Jigiyaso (user)
  • Client's Consultant

    AMSCID (Association Malienne de Solidarité et de Coopération Internationale pour le Développement)
  • Cost

    308 000 000 F CFA (469 000 €)
  • More Specs Less Specs

Text description provided by the architects. The story of Falatow Jigiyaso orphanage begins in Bamako. In 1978, Fatoumata Goundourou found an orphan baby in the street and brought him home. From now on, her house will become a shelter for no less than 30 children of all ages.

© Vanja Bjelobaba
© Vanja Bjelobaba

In 2010, the mayor of the city of Fresnes (south of Paris) – Jean-Jacques Bridey – was told by some of his citizens of Fatoumata’s story. Then he went to Mali to meet Fatoumata and decided to build a proper orphanage in Dialakoroba (50 km south of Bamako).

Ground Floor Plan
Ground Floor Plan

The orphanage offers housings for children and staff, a small medical centre, administration offices, toilet and shower blocks, a kitchen and a dining hall. Classrooms and terraces are located on the first floor for children’s activities. The blocks are arranged around a central yard in the fashion of traditional Malian and West-African architecture.

© Vanja Bjelobaba
© Vanja Bjelobaba

On this project, located in the subsahelian area, we faced extreme weather conditions. Moreover, for practical, environmental and economic reasons, we choose not to use air conditioning units or even simple fans. For those reasons, the whole design of the orphanage is based on three principles that would guarantee a good comfort in the building.

© Vanja Bjelobaba
© Vanja Bjelobaba

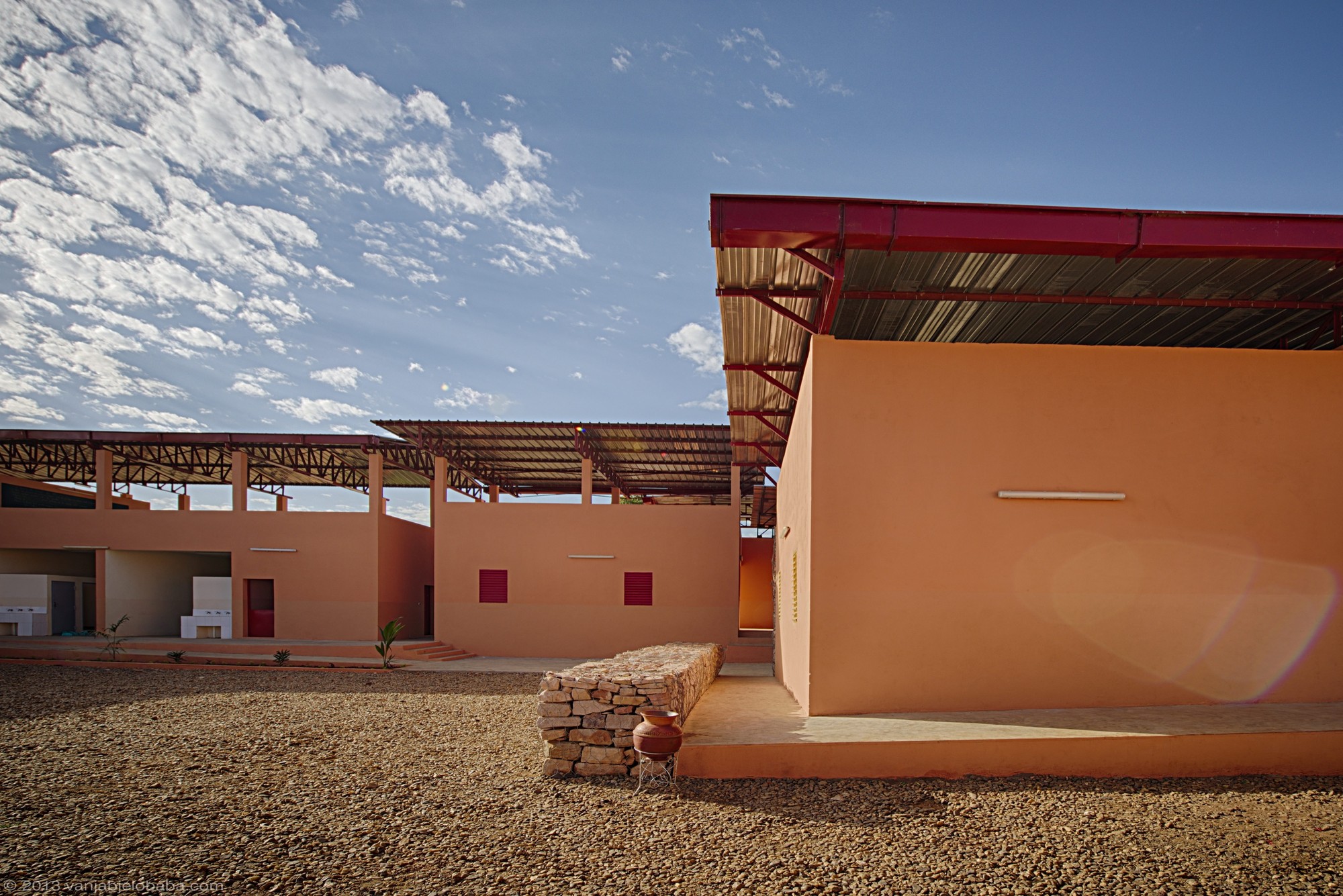

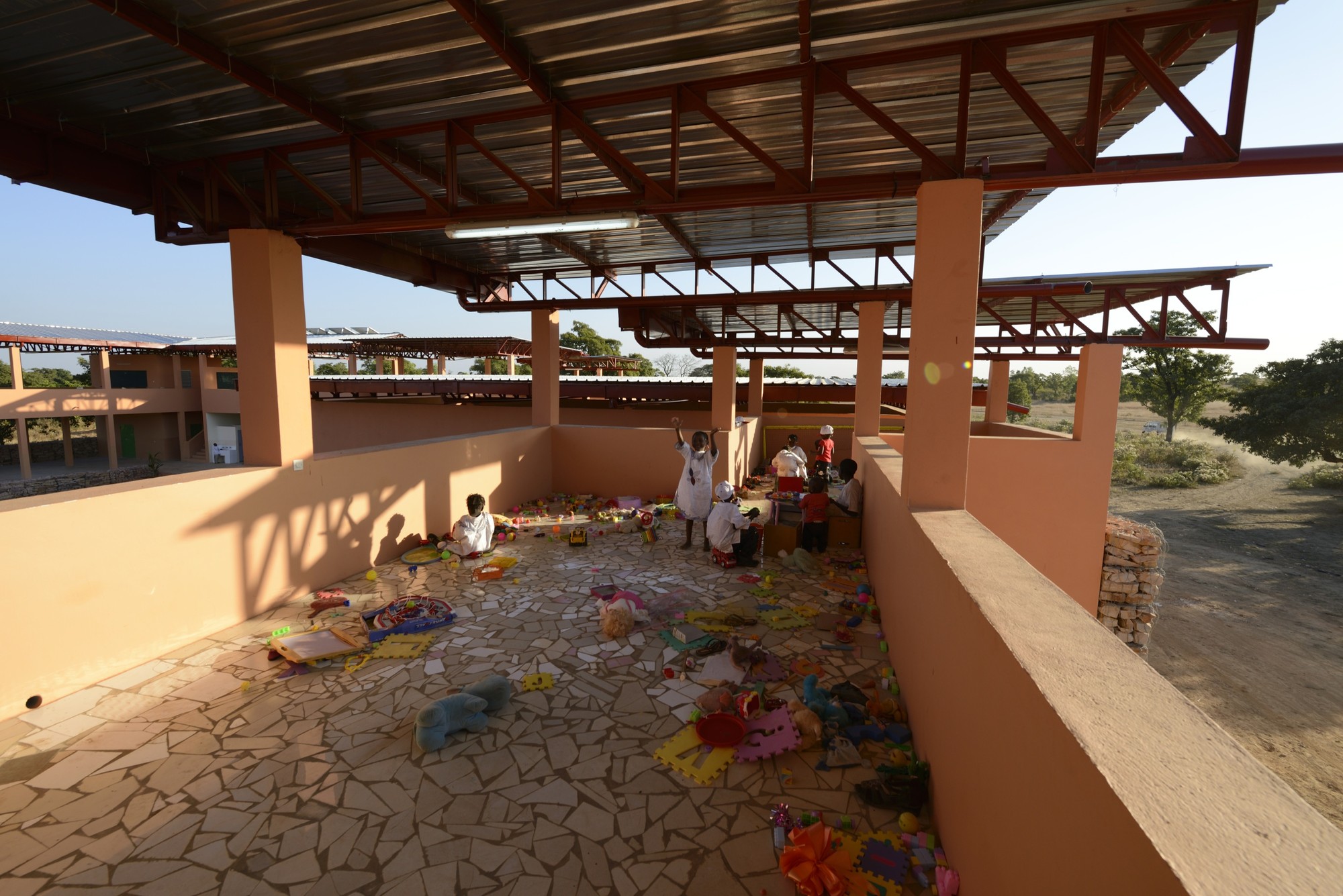

The first principle is the reduction of solar heat gain.To do so, an additional roof is placed above the blocks. Those roofs that go over the blocks’ edges protect the rooms from direct solar gain. Moreover, those extra roofs protect the terraces located on the first floor and used for children activities.

© Vanja Bjelobaba
© Vanja Bjelobaba

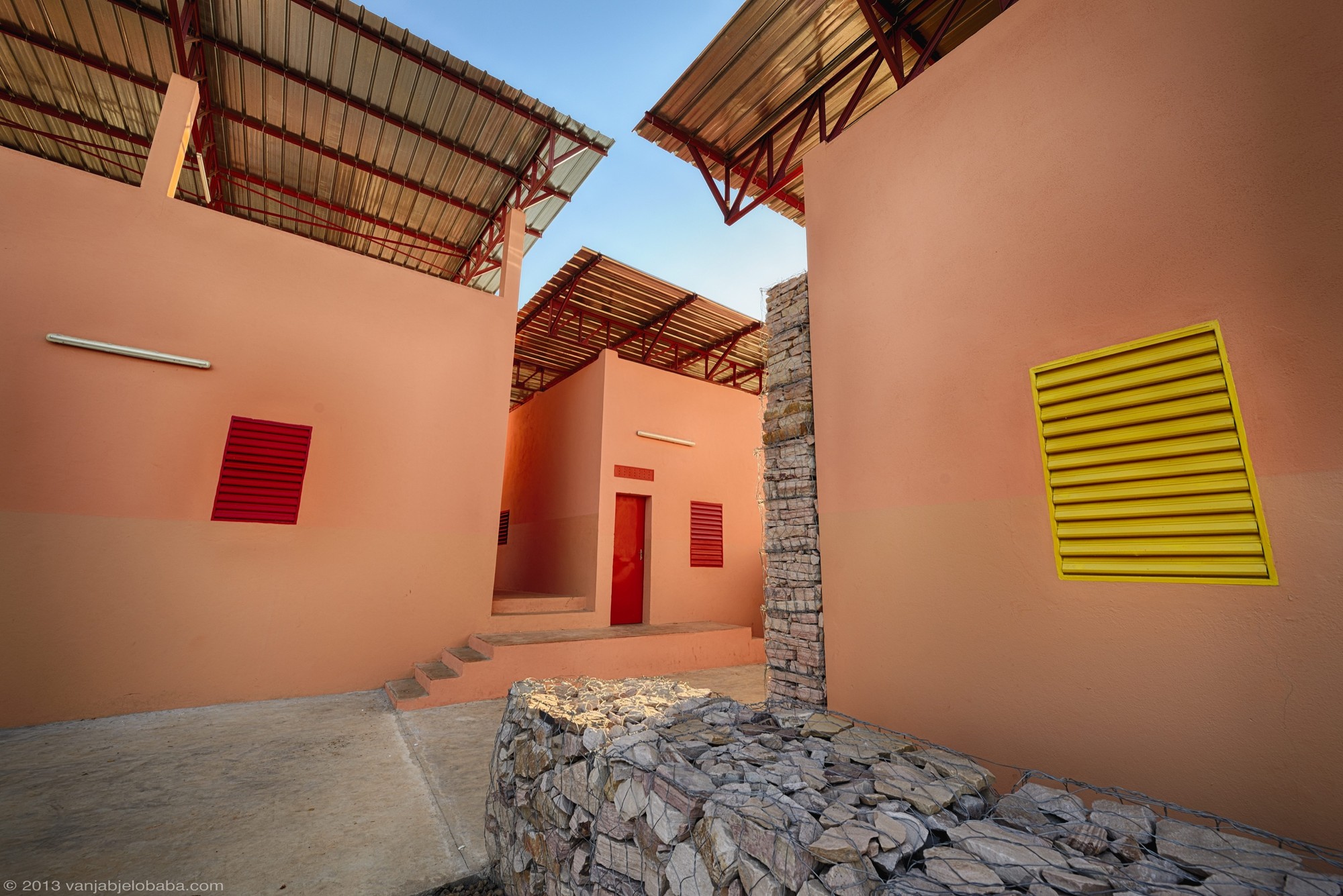

The second principle was to improve the thermal mass of the walls. All the walls are made of “H”-shape concrete blocks. Then, the hollow centres of the blocks are filled with Banco: a recipe of mud and grain husks. Banco is easily found in Mali and is well-known for its strong thermal properties. Finally, gabion cladding is used on the most exposed façades.

The last principle was about natural ventilation. On the scale of the whole orphanage, the layout of the blocks tends to improve air circulation. On a small scale, each block features vent grills in order to allow natural ventilation and passive cooling.

© Vanja Bjelobaba
© Vanja Bjelobaba

During the warm season in April, we measured an indoor-outdoor temperature difference of more than 20°C. This result tends to prove the benefits of the specific design developed on this project.

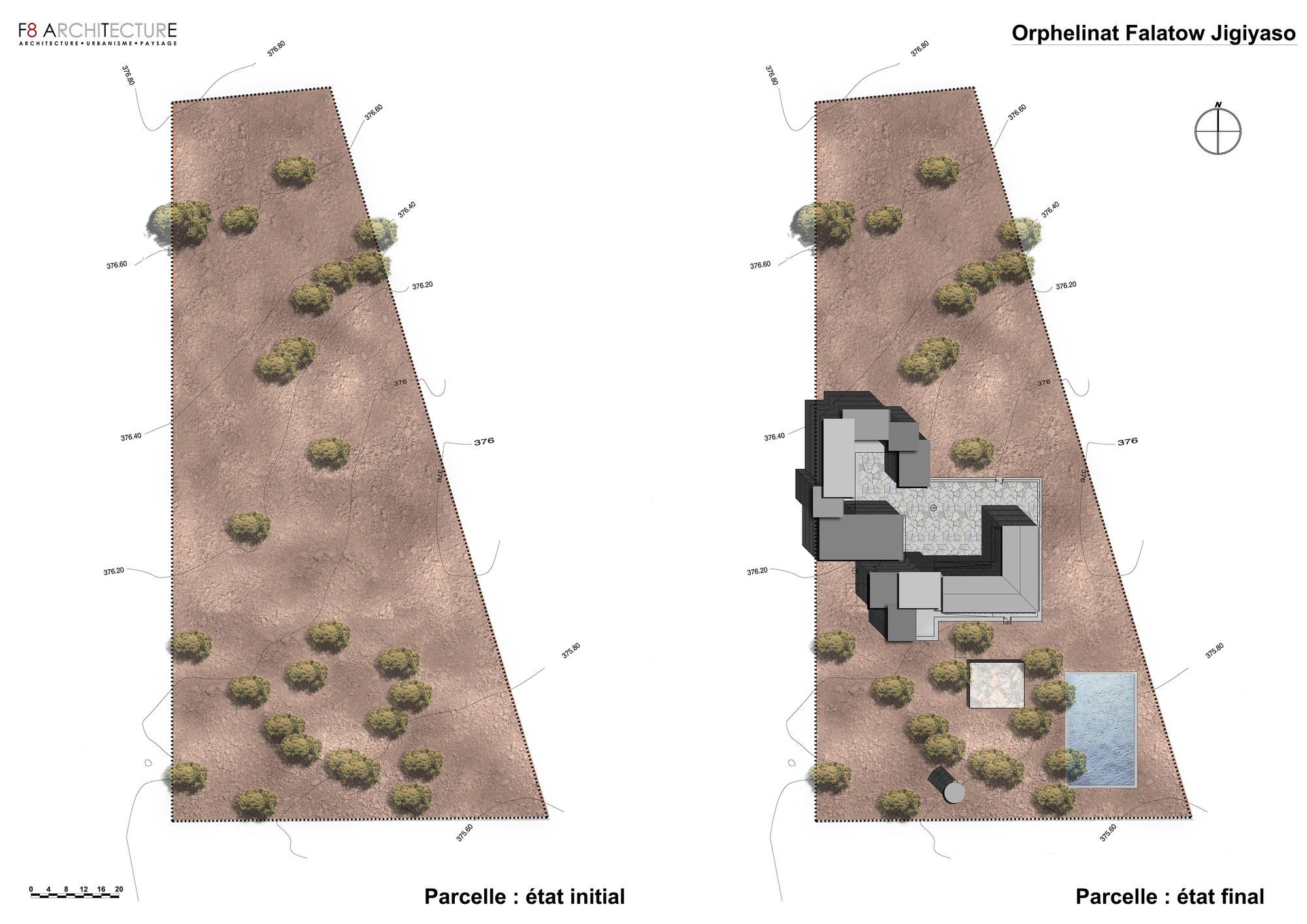

Site Plan
Site Plan

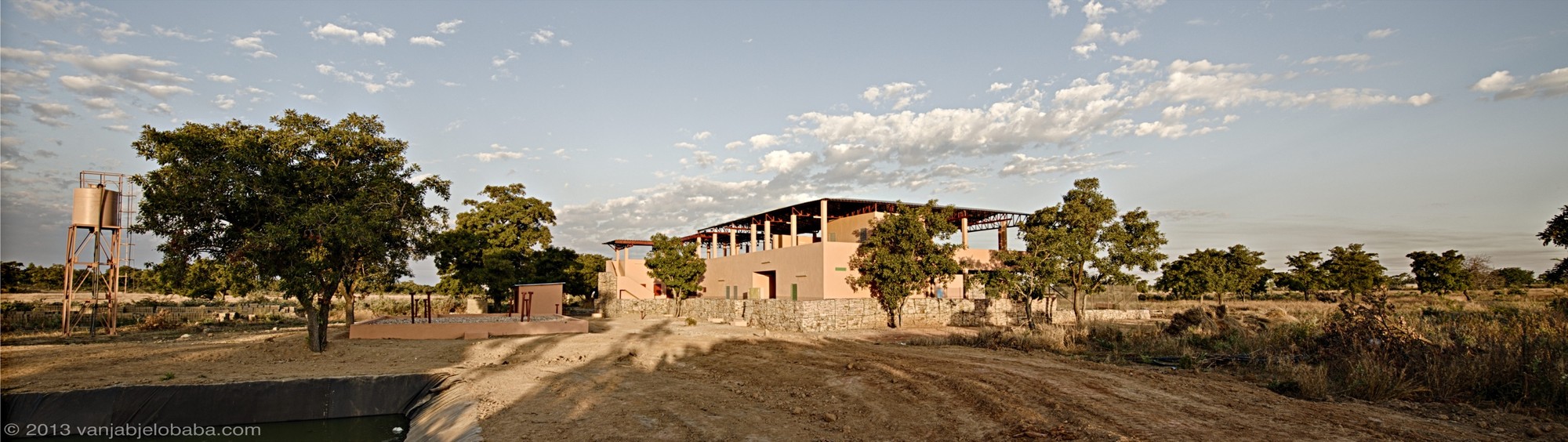

As the orphanage is located outside the village of Dialakoroba and far from the services, we had no choice but to make it self-sufficient. Photovoltaic panels are placed on the roof to produce electricity. Groundwater is pumped in a 70m depth well.

© Vanja Bjelobaba
© Vanja Bjelobaba

Another important aspect of the project is waste water management. As Mali faces great water issues, we believed it was particularly relevant to imagine a second life for the water used in the building. Therefore, waste water are collected and processed through an extensive treatment system. The first component of this system is a digester making possible the settlement of suspended solids. The second component is a biofilter where anaerobic bacteria are fixed on sand beds in order to purify the water. When depolluted water exits this device, it flows to an opened pond used for fish farming. The overflowing water – around 4 m3 a day – is then used for agriculture (especially market gardening) allowing several harvests a year instead of one.

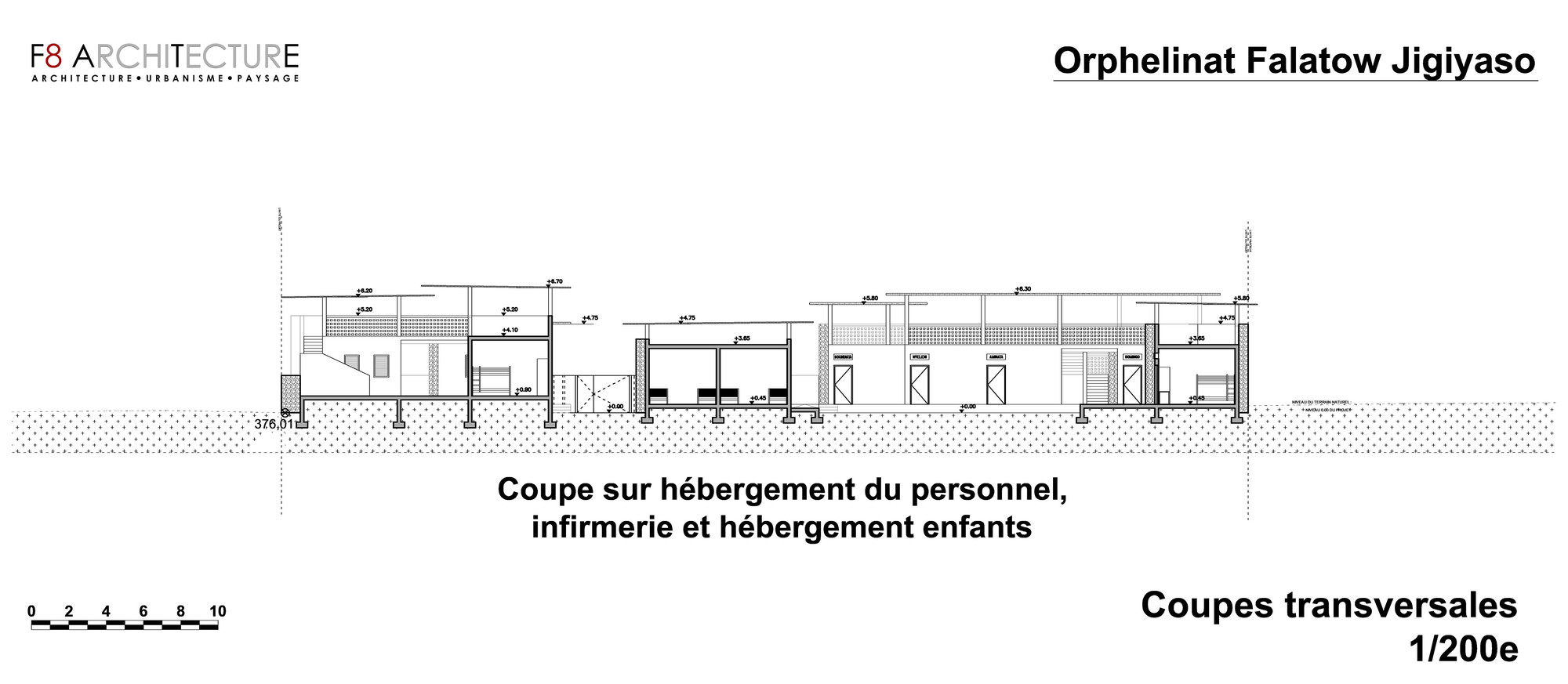

Section
Section

This system not only provides food for the orphanage but also provides education for the children in the fields of market gardening and fish farming. Finally the orphanage outdoes its primary function of giving a shelter to the children and takes a part in their education and fulfillment.

© Vanja Bjelobaba
© Vanja Bjelobaba

This project was marked with knowledge and know-how exchanges. This can be simply illustrates with two examples. The idea of using “H”-shape concrete blocks that is a very relevant compromise between a complete concrete masonry design and a complete mudbrick solution was given by a Malian engineer. The extensive wastewater treatment process design by our friend Gérard Violante, a French engineer, was implement for the first time in Mali and should find other applications elsewhere.

Second Floor Plan
Second Floor Plan

As a conclusion, this whole adventure will be always remembered by our team not only because of the nature of the project but also thanks to the quality of the exchanges we experience with people. This first project will be also remembered for bringing our team together to create our architecture firm.
