High School Thazin / Ackermann+Raff

  • 01:00 - 7 August, 2014
High School Thazin / Ackermann+Raff
High School Thazin / Ackermann+Raff, © Julia Raff
© Julia Raff

© Julia Raff © Julia Raff © Julia Raff © Julia Raff + 31

  • Architects

  • Location

    Ngwesaung, Republic of the Union of Myanmar
  • Cost

    90.000 USD, financed by donations
  • Area

    500.0 sqm
  • Project Year

    2014
  • Photographs

© Julia Raff
© Julia Raff

Text description provided by the architects. The new high school project was developed in cooperation with the German NGO Projekt Burma. It is financed by donations and all participants involved are volunteers except the workers on site. The aim was to design a new building, which is not like the common school standard but more creative with a sustainable concept, which can be adapted by the locals.

© Julia Raff
© Julia Raff

The new school building creates space for seven class rooms and a faculty room. An important design idea is the central pavilion which links together the existing elementary school, the library, the headmaster house and the new high school building. The pavilion creates a courtyard, which can be used by the whole village after school hours for common activities such as cultural events, village assemblies, open-air cinema, dance performances etc.

© Julia Raff
© Julia Raff

The two-storey building is based on a simple floor plan typology. The architectural language is developed from the traditional way of construction. The attempt is to build with local materials in order to embed the new building carefully into the surrounding area. It has been crucial to build sustainable with ecological materials and at the same time to ensure a strong and durable structure in order to use the building as cyclone shelter.

© Julia Raff
© Julia Raff

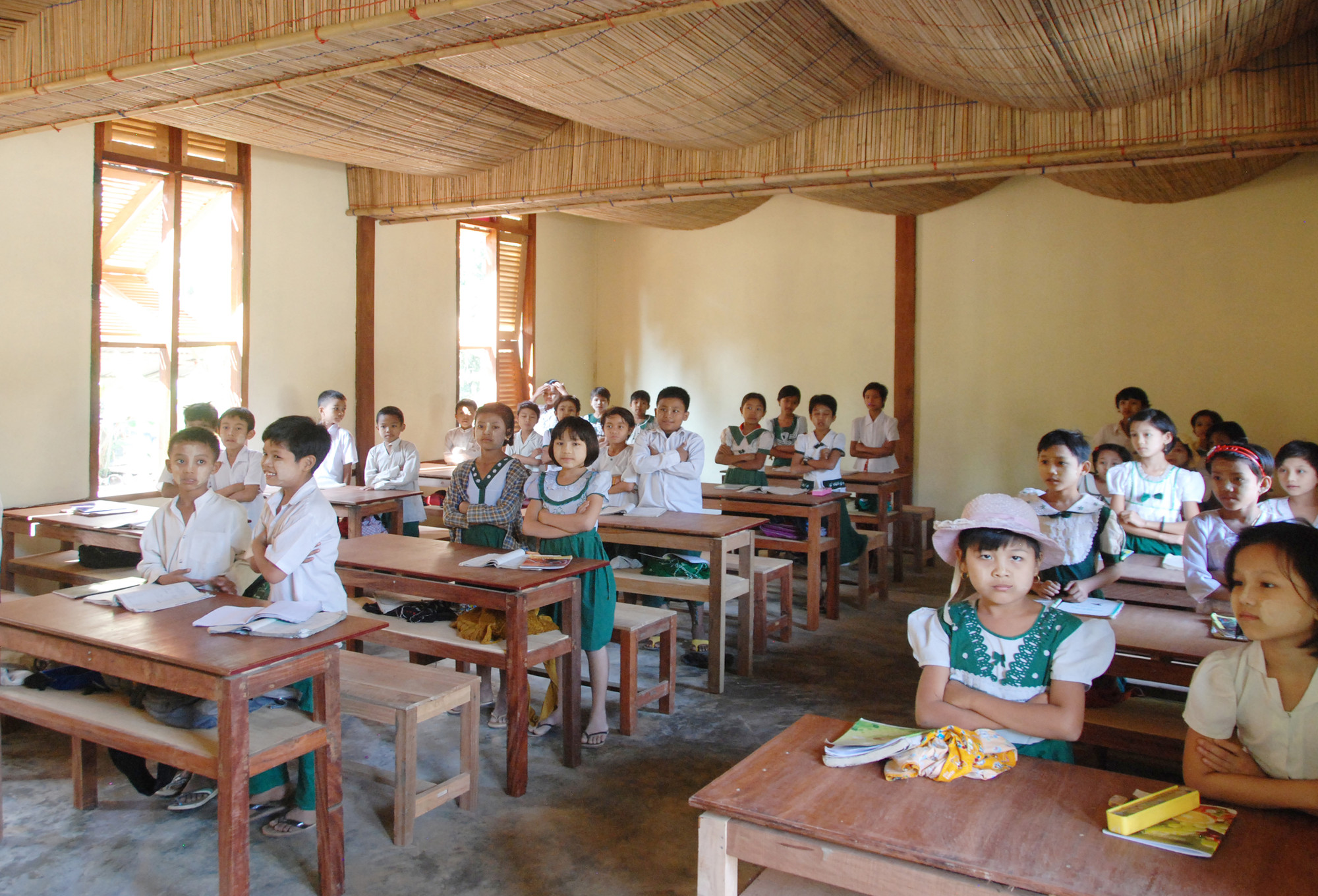

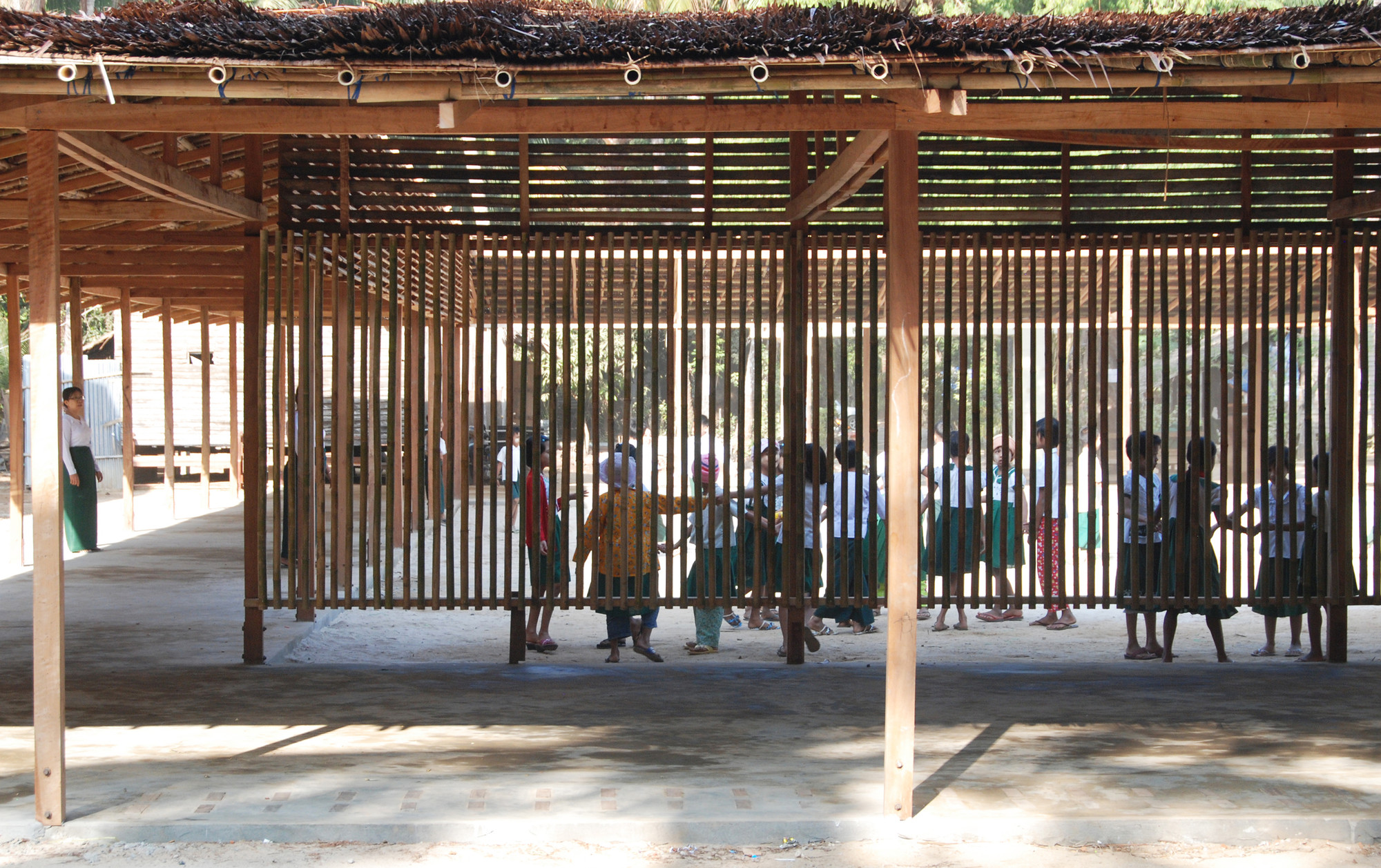

The school is constructed with the traditional 'brick noggin structure', a timber frame construction with brick masonry infill on a solid concrete base. The pergola is designed with an ornamental bamboo mesh, which serves as sun protection. Suspended ceilings made of bamboo and glass wool provide good acoustics and create a warm and comfortable atmosphere within the classrooms.

© Julia Raff
© Julia Raff

Due to the climate there is no need for glass windows, only for shutters serving as rain protection. With their fold- out mechanic they function as well as sun protection. The timber louvers within the shutters and underneath the roof ensure an excellent air ventilation and prevention against overheating.

© Julia Raff
© Julia Raff

All timber of the previous school is reused for the new wooden framework, for furniture and the pavilion. All bricks are manufactured locally, bamboo and wood work is produced on site. The coloured pigments for doors and windows are from Pathein, a nearby city, which is famous for its umbrella production. The pigments are used for the ornamental umbrella painting.

© Julia Raff
© Julia Raff

The project also tried to strengthen the local economy. Only a few highly qualified workers are engaged from Pathein and Yangon. The majority are local workers who are trained on site during the building process.
