Centre for Photovoltaics and Renewable Energy / Henn

  • 01:00 - 5 December, 2013
Centre for Photovoltaics and Renewable Energy / Henn
Centre for Photovoltaics and Renewable Energy / Henn, © HG Esch
© HG Esch

© HG Esch © HG Esch © HG Esch © HG Esch + 12

  • Architects

  • Location

    Russische-Orthodoxe Diözese des orthodoxen Bischofs von Berlin und Deutschland, Hofbauernstraße 26, 81247 Munich, Germany
  • Area

    12420.0 sqm
  • Project Year

    2013
  • Photographs

© HG Esch
© HG Esch

Text description provided by the architects. Since 1991, Berlin Adlershof has developed into one of the most successful high-tech sites in Germany. It is here that the Centre for Photovoltaics offers up-and-coming companies the opportunity to lease various combinations of laboratory, technical and office space suitable for their particular needs. Eighteen units are spread out over nine similar modules equipped to identical standards for research, the design of new processes and product development.

© HG Esch
© HG Esch

On the ground floor is a workshop with an overhead travelling crane as well as a shared-use technical centre, above which are three similarly sized two-storey modules for offices and laboratories. The tenants have the use of a restaurant, which extends the range of dining options in the neighbourhood. The roof of the foyer is covered with large photovoltaic testing areas for energy generation. Between the blocks, pedestrian roof gardens optimise the microclimate of the building and offer employees space to relax for a while.

© HG Esch
© HG Esch

Vertical ground loops in boreholes are used for generating heat and cold energy. Ceiling concrete core activation in the offices as well as low-temperature underfloor heating in the atrium use regenerative energy to ensure comfort in this building. The project also has extensive green roofs, a rainwater cistern for grey water and a rainwater soakaway system for the whole of the site.

© HG Esch
© HG Esch

The connecting element is the building-height, light-filled atrium which can be viewed from all floors and has a sculptural spiral staircase that defines the space as it transitions into the solid bands of balustrade walls of the gallery-like circulation hall.

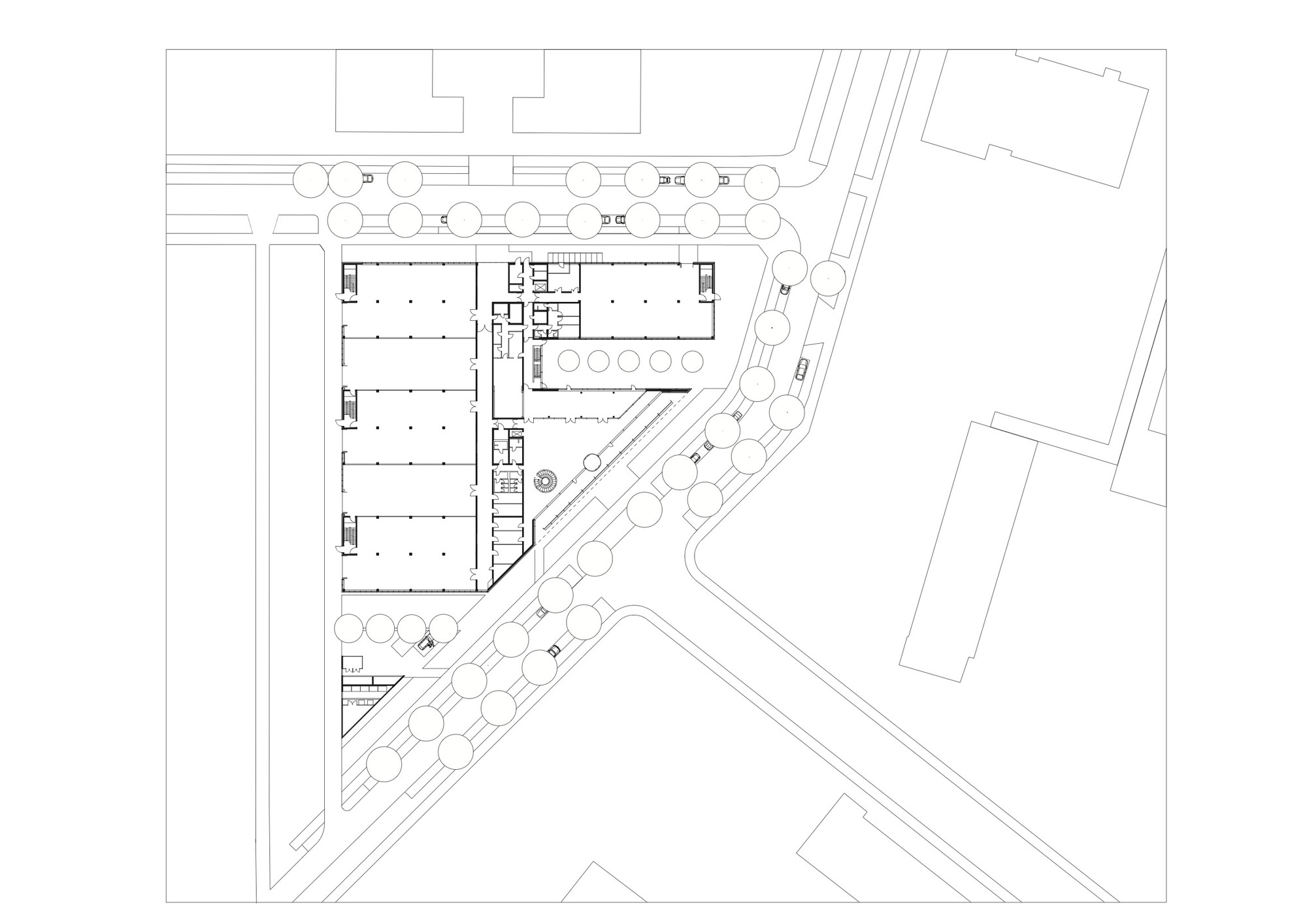

Floor Plan
Floor Plan
