Servef Center in Novelda / Calatayud-Navarro Arquitectos

  • 01:00 - 20 June, 2013
Servef Center in Novelda / Calatayud-Navarro Arquitectos
Servef Center in Novelda / Calatayud-Navarro Arquitectos, © Diego Opazo
© Diego Opazo

© Diego Opazo © Diego Opazo © Diego Opazo © Diego Opazo + 40

  • Architect Office

  • Location

    Novelda, Spain
  • Authors

    Carlos Calatayud Revert, Jesús Navarro Morcillo y José Ramón
  • Surveyors

    Javier Delgado Vallés y Juan José Navarro Martínez
  • Engineering

    Consulting de ingeniería ICA SL
  • Construction

    Castelló Construcciones e Infraestructuras S.L.
  • Client

    Servicio Valenciano de Empleo y Formación
  • Area

    1004.54 sqm
  • Year

  • Photography

© Diego Opazo
© Diego Opazo

Text description provided by the architects. A regular scheme, characterised by excessive site depth and featureless residential buildings, comprises the area of the site. Our site is located between walls, like the others, and is roughly square, about one hundred and sixty square feet. The street does not offer any features that invite our attention.

© Diego Opazo
© Diego Opazo

We propose a representative building in a not particularly favourable location, having its own scale, asserting its representative and institutional quality and benchmarking its suitability within the neighbourhood. The project is structured on three levels: customer services on the first, training on the second, and archiving on the upper level. This proposes a building structure representing a clearly arranged plan. We believe this grouping method favours the scale change we seek.

© Diego Opazo
© Diego Opazo

The configuration is set using two mass structures hosting the most significant parts of the project. Movement between these structures and the perimeter of the constructed building generates a series of interstices set as transitional spaces, which allow us not only to generate both the accesses and the patios, but also to highlight its autonomy.

© Diego Opazo
© Diego Opazo

The double height access is set at street level, and the stairs are at located the back with a courtyard behind. The lower prism hosts the public area. The upper prism has the archiving area. Between these two structures there is an open floor area intended for classroom training.

© Diego Opazo
© Diego Opazo

The metal structure is the basis of the work, predominantly dry. Precast concrete is ised for walls and floor slabs. The joints between elements are achieved by overlapping and splicing. Local stone is used heavily on the floors and on the front of the lower structure. The columns and beams provide precise lines of reference for finishing: flooring, carpentry, lighting, installations, panelling...

© Diego Opazo
© Diego Opazo

The result of the construction process offers a finish different from conventional construction, halfway between institutional and industrial. We believe this bestows on the building the character we intended.

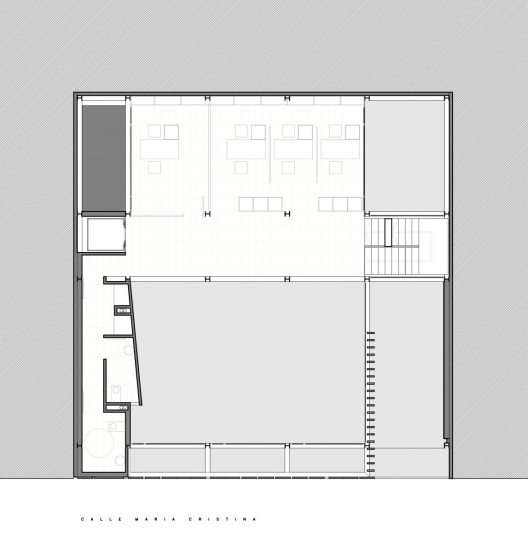

First Floor Plan
First Floor Plan
