ATZ Living / CRAFT Arquitectos

  • 01:00 - 8 June, 2013
  • Translated by Lorena Quintana
ATZ Living / CRAFT Arquitectos
ATZ Living / CRAFT Arquitectos, Courtesy of CRAFT Arquitectos
Courtesy of CRAFT Arquitectos

Courtesy of CRAFT Arquitectos Courtesy of CRAFT Arquitectos Courtesy of CRAFT Arquitectos Courtesy of CRAFT Arquitectos + 31

  • Architects

  • Location

    Mexico
  • Collaborators

    Alan Rahmane Azar, Michelle Cadena Chenge, Gerardo Gutiérrez, Mario Godínez, Jonathan Askenazi
  • Area

    200.0 m2
  • Year

    2009
  • Photography

    Courtesy of CRAFT Arquitectos

Text description provided by the architects. The proposed concept is based on the intention of generating 15 m² modules where each of the areas of the architectural project take place, and through which open and continuous spaces are generated. These modules provide to each family the possibility of adapting their house according to their needs, with the possibility of expanding in a clean, orderly manner with a low operating cost.

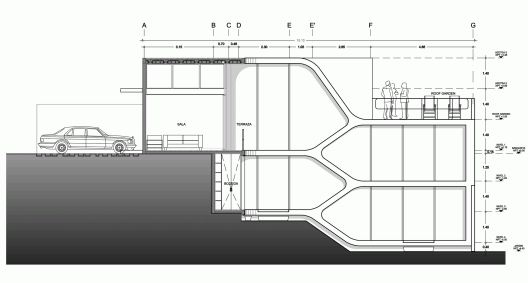

Longitudinal Section 1
Longitudinal Section 1

The house is perfectly adapted to the terrain. Due to a steep slope, we laid out half levels with a centralized vertical core. Thus, the modules are subtly settled on the contour lines suggested by the natural topography.

Courtesy of CRAFT Arquitectos
Courtesy of CRAFT Arquitectos

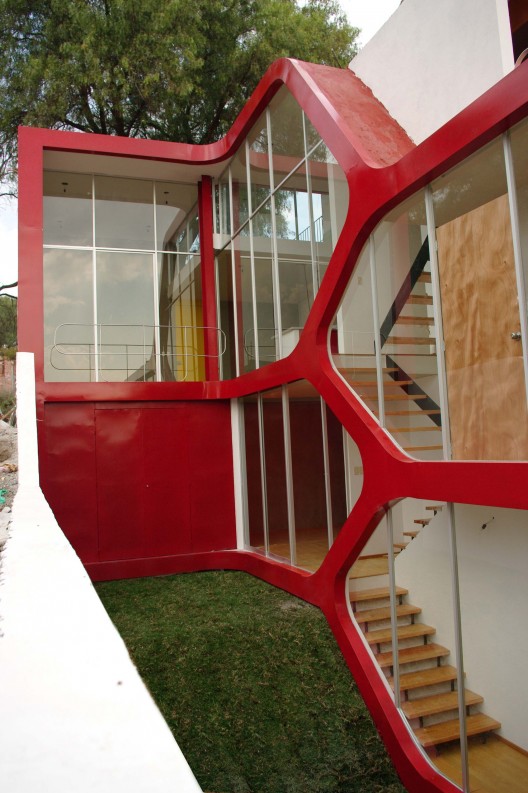

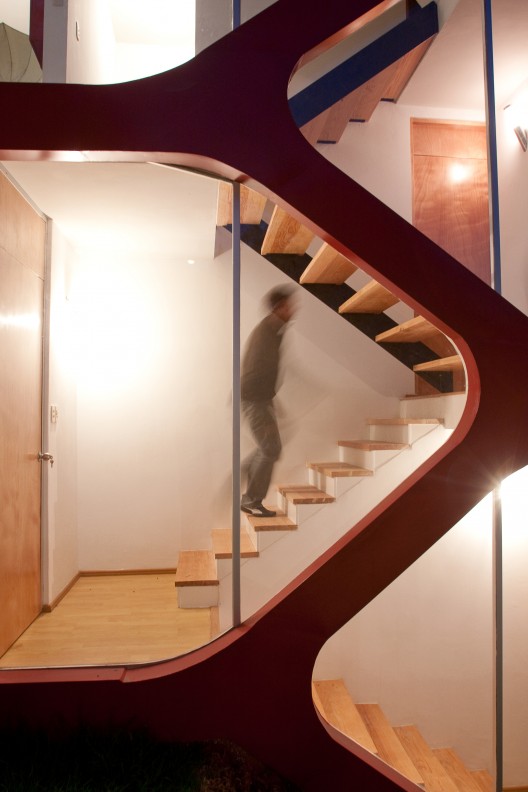

From a primary red metal structure, which structurally links each of the modules, large windows are generated which are lit and ventilated through a green area, which provides a quiet and secluded space. Based on the half levels, double height spaces and large windows are generated, as well as a roof garden that allows an overview of the surroundings.

Courtesy of CRAFT Arquitectos
Courtesy of CRAFT Arquitectos

The idea of creating continuous and open spaces gave us the opportunity to use few walls, these work to contain the washrooms proposed at the center of the project and make the building services more efficient, as well as generating a central core which adds stiffness to the whole structure.

View the complete gallery

Cite: "ATZ Living / CRAFT Arquitectos" [ATZ Living / CRAFT Arquitectos] 08 Jun 2013. ArchDaily. (Trans. Quintana, Lorena) Accessed . <https://www.archdaily.com/381555/atz-living-craft-arquitectos/> ISSN 0719-8884
