Cuauhtémoc, Mexico
  • Architects: TAE Arquitectos
  • Area Area of this architecture project Area:  200
  • Year Completion year of this architecture project Year:  2012
  • Photographs
    Photographs:Onnis Luque

Text description provided by the architects. The registration license No. 5/06/010/2009 dated May 18, 2009 of 132.75, property listed by the INBA, prevents the demolition of the existing building which once had a comercial purpose, but now it will be used as a residential place.

Zamora 63 / TAE Arquitectos - Beam, Column
© Onnis Luque

The house is built on one floor plan over an area of 200.00 m2 and developed on 3 levels.

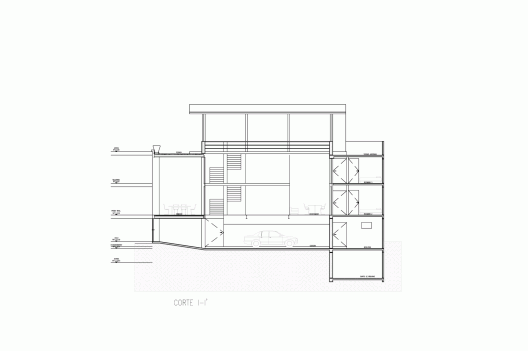

Corte 06

Level -0.45m floor plan; In an area of 156.53 m2 we find vehicular and pedestrian access, a three-car garage, library, living room, laundry, utility room, engine room and vertical circulation.

Zamora 63 / TAE Arquitectos - Windows, Brick, Facade, Beam
© Onnis Luque

Level +2.30m first floor plan; It is made up of 156.53 m2, has a dining room, kitchen, living room and a bedroom with bathroom and a dressing room, thus complemented with horizontal and vertical circulation.

Zamora 63 / TAE Arquitectos - Image 11 of 27
© Onnis Luque

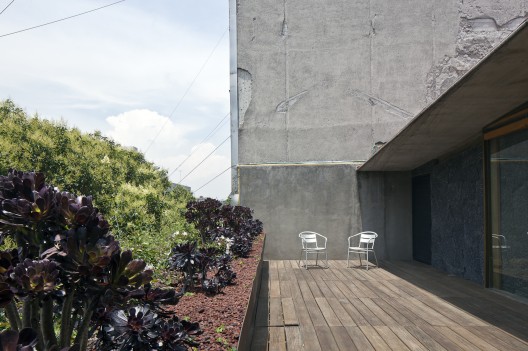

Level +7.80m second floor plan; It has an area of 83.74 m2 with a master bedroom, vertical circulation and a semi-covered terrace.

Zamora 63 / TAE Arquitectos - Shelving
© Onnis Luque

Roof plan; where the gas tank is located.

Zamora 63 / TAE Arquitectos - Handrail, Beam
© Onnis Luque

Because of its location, corresponds to a H/3/20/90 zone (housing, 3 levels, 20% of open area and a house of 90m2) and a maximum constructed area of 480.00 m.
