  • Architects: Olgooco
  • Area Area of this architecture project Area :  2050
  • Year Completion year of this architecture project Year :  2007

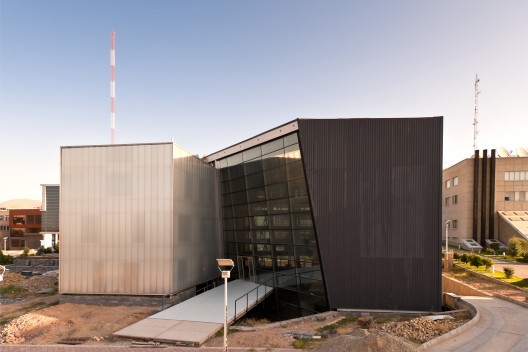

Text description provided by the architects. This four-level building is located in a 1720 square meters site and has a total area of 2050 square meters, which is built in the Pardis Technology Park. This building has two sections of administrative and R&D.

P.S.P Office Building / Olgooco - Beam, Steel, Handrail
Courtesy of Baraks Studio

Design concept for the administrative section taken from a dark box and a transparent kernel for the R&D section. The kernel is visible through a diagonal cut made in the box.

P.S.P Office Building / Olgooco - Windows, Facade, Concrete
Courtesy of Baraks Studio

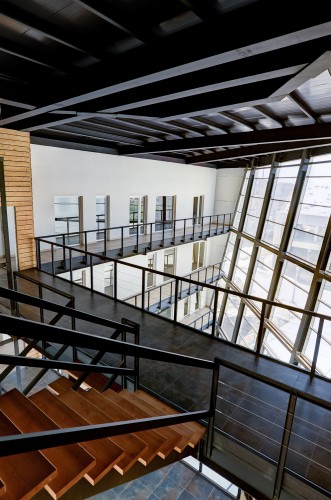

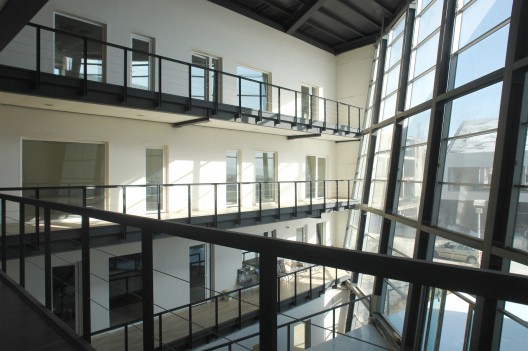

The cut splits the building into two parts and the center space becomes a greenhouse that contains the bridges between the two buildings and the lobby along side with the entrance bridge. This space set for the conditions like the heat in summer and humidity in winter.

P.S.P Office Building / Olgooco - Image 9 of 18
Courtesy of Baraks Studio

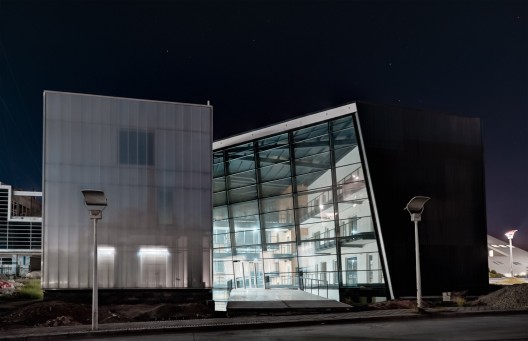

The R&D section has a translucent façade for the best lightening effect and has double skin to make a sustainable building.

P.S.P Office Building / Olgooco - Windows, Facade
Courtesy of Baraks Studio

In the west wing, for the outer layer of facade polycarbonate sheet with 8 cm thickness and for inner layer plaster panel with 15cm thickness is considered.

P.S.P Office Building / Olgooco - Facade
Courtesy of Baraks Studio

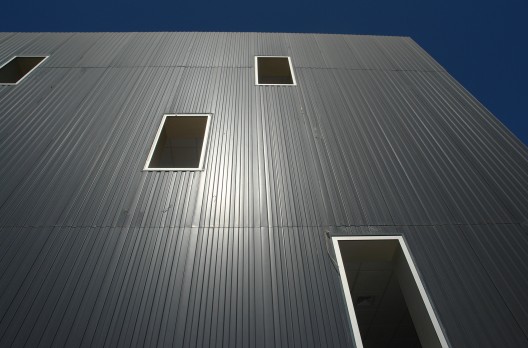

In the east wing, the outer layer is changed to sandwich panel that has a similar effect to west wing.

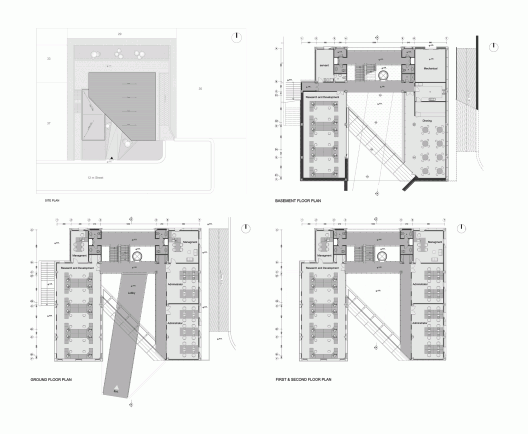

Plans

Project gallery

See allShow less

Project location

Address:Pardis Technology Park,Tehran, Iran
