Shadow Pavilion / PLY Architecture

  • 00:00 - 20 December, 2011
Shadow Pavilion / PLY Architecture
Shadow Pavilion / PLY Architecture, Courtesy of PLY Architecture
Courtesy of PLY Architecture

Courtesy of PLY Architecture Courtesy of PLY Architecture Courtesy of PLY Architecture Courtesy of PLY Architecture + 18

  • Architects

    PLY Architecture
  • Location

    University of Michigan Matthaei Botanical Gardens, Ann Arbor, Michigan, USA
  • Project Team

    Karl Daubmann & John Marshall assisted by Ngoc Thy Phan & Alex Timmer
  • Structural Advisor

    Andy Greco, SDI Additional
  • Construction Help Provided By

    Peggy Chong, Jessica Mattson, Katie Santer, Dwight Song, Alex Watanabe
  • Project Year

    2009

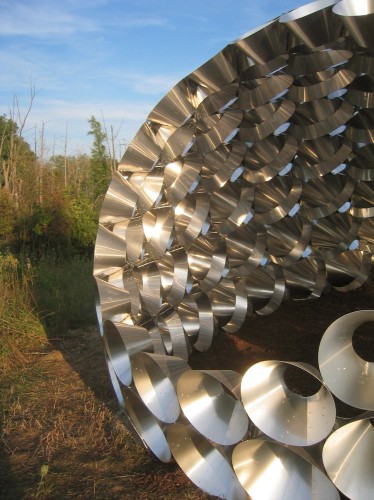

Text description provided by the architects. The Shadow Pavilion explores the paradox of a perforated structure where the removal of material makes a structure lighter and weaker. The Shadow Pavilion, designed for a site at the University of Michigan Matthaei Botanical Gardens, is both a structure and a space made entirely of holes. The pavilion surface is made with over 100 aluminum laser cut cones that vary in size. Beyond testing the limits of sheet aluminum, the cones will act to funnel light and sound to the interior space, offering visitors a space to take in the views and sounds of the surrounding landscape. Organizational schemes for the cones are explored, including the logic behind the concept of phyllotaxis. In botany, phyllotaxis describes a plant’s spiral packing arrangement of its elements. The organization of the cones may limit the form, but can strengthen the structure. The laser cutting process uses the digital design information to precision cut and finish the aluminum cones. The pavilion’s surface will maintain the natural aluminum finish and smooth edges resulting from the laser cutter.

Courtesy of PLY Architecture
Courtesy of PLY Architecture
