University of Tasmania School of Medicine / Lyons

  • 01:00 - 26 December, 2010
University of Tasmania School of Medicine / Lyons
University of Tasmania School of Medicine / Lyons, © Dianna Snape Photography
© Dianna Snape Photography

© Dianna Snape Photography © Dianna Snape Photography © Dianna Snape Photography © Dianna Snape Photography +26

From the architect. The new building for The University of Tasmania’s School of Medicine and the Menzies Research Institute supports these institutions aspiration to deliver leading edge world-class clinical research and medical training.

© Dianna Snape Photography
© Dianna Snape Photography

The conceptual basis for the project was to create a synergistic environment for these previously fragmented facets of the University. At the core of the concept is the creation of a ‘new culture’ reinforced through the building’s image and its social and functional planning.

© Dianna Snape Photography
© Dianna Snape Photography

As a public building of the city of Hobart, it invites the participation of the street: through its corner entry; large transparent windows and its interstitial atrium space between the new building and the heritage listed Hollydene House.

© Dianna Snape Photography
© Dianna Snape Photography

The building recognizes its role as a city landmark. One corner marks Liverpool and Campbell Street intersection, while, on the opposite side of the building, creates a dialogue with the landscape of the Domain and the vehicular movement of the Brooker Highway.

© Dianna Snape Photography
© Dianna Snape Photography

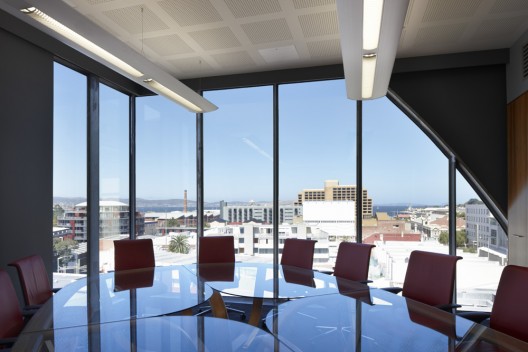

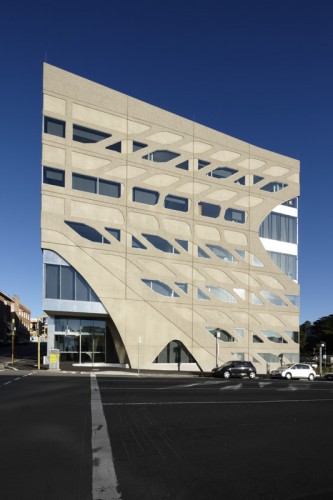

The image of the building, expressed through its fenestration is derived, abstractly, from the surrounding mountain ranges and Derwent River. The curvilinear form of the building is a reference to the nonexistent Park Rivulet which was influential in shaping the edge of the city grid, upon which the new building is tied. The shaped windows of the upper levels provide occupants with a means to see the spectacular landscape with new emphasis. On the street, the window ‘arch’ forms reference an already established local typology whilst abstractly symbolizing the mountain ranges which background Hobart city.

© Dianna Snape Photography
© Dianna Snape Photography

A collaborative team approach, requiring intensive co-ordination was required to achieve an outcome suitable for the varying needs of the building program. A range of other specialist allied disciplines were also required in the development of the design, including heritage, archeology and interpretive consultants.

© Dianna Snape Photography
© Dianna Snape Photography

The Contractor collaboratively engaged the design team with all the sub-trades to optimise buildability and create lateral design solutions. This was particularly relevant in respect to the facade, where the precast subcontractor assisted in design development and documentation to achieve a highly cost effective solution whilst still meeting the design aspirations.

© Dianna Snape Photography
© Dianna Snape Photography

Green Star 5 Star was used as a reference rating tool to establish the extensive environmental strategies for the building. These included; minimized VOC’s; concrete and recycled timber flooring; galvanized steel in lieu of aluminum; variable air volume systems and fume cupboards; run around coil heat recovery systems; building automation system; solar water system; extensive energy and water metering; daylight and artificial lighting control; high efficiency lighting.

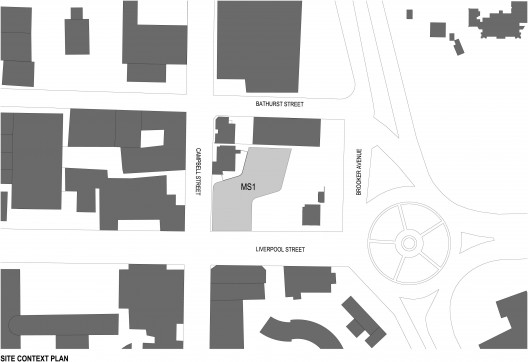

Plan
Plan
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "University of Tasmania School of Medicine / Lyons" 26 Dec 2010. ArchDaily. Accessed . <http://www.archdaily.com/98545/university-of-tasmania-school-of-medicine-lyons/>
