Plus-Energy House with Electromobility / ILEK

Visualization: © Stuttgart

ILEK at the University of Stuttgart has shared with us their winning proposal for the “Plus-Energy House with Electromobility” competition run by the German Federal Ministry of Transport. Learn more about this winning design and the ILEK after the break.

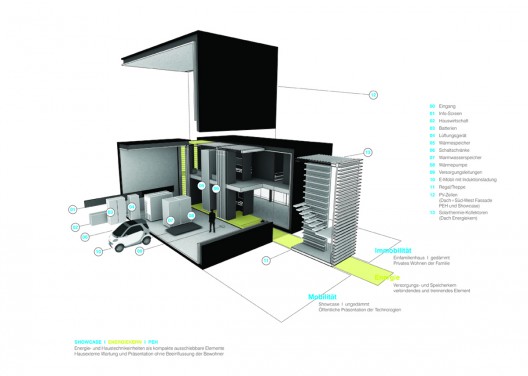

Exploded Diagram

ILEK TO BUILD HOUSE OF THE FUTURE IN BERLIN

The Institute for Lightweight Structures and Conceptual Design (ILEK) at the University of Stuttgart has won First Prize in the architectural planning competition “Plus-Energy House with Electromobility” issued by the German Federal Ministry of Transport, Building, and Urban Development. The proposed design, developed under the direction of Professor Werner Sobek, demonstrates the potential of actively coupling energy flows between the emerging fleet of electric vehicles and our built environment. This concept is architecturally embodied through a striking glass showcase in which all of the core technical systems are laid out prominently to form a full-scale living display.

The project not only illustrates the feasibility of building future single-family homes which generate a significant surplus of energy – enough to power the electric vehicles of their occupants – but also demonstrates how future buildings can be designed and built to allow for complete disassembly and recycling at the end of their life cycle. The holistic planning approach employed by the interdisciplinary design team takes the scope of “sustainable design” to a new level, incorporating energy and material concepts which surpass the standards set by previous milestone projects such as the SolarDecathlon competition.

The opening of the BMVBS research and exhibition prototype is planned for mid-2011.

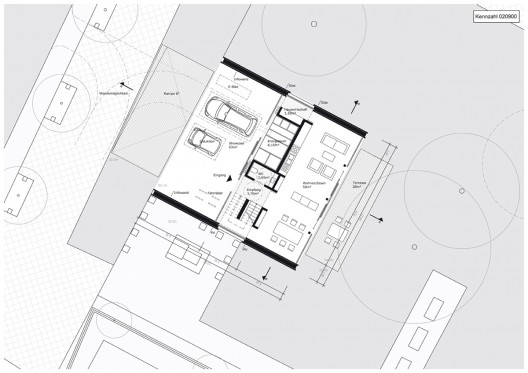

1st Floor Plan

ARCHITECTURE AND ENERGY

A glass-clad energy core serves as both an architectural interface and a building systems hub between the mobile and immobile living spaces of the occupants. Extending from the garden side of this core is a compact two-storey volume housing the private living areas, while on the street side a large open frame serves as a showcase for the public, providing real-time information about the house and its electric vehicles through a dynamic interactive display system. The focus of innovation in the development of the concept was on the coupling of energy flows and energy storage between living environment and electromobility, and this coupling is embodied in the design through the conscientious architectural layering in plan of the plus-energy house, the energy core, and the showcase. The layout of the interior spaces and the distribution of opaque and glazed cladding surfaces are optimized for minimal energy loss, maximum natural daylighting, and selective solar gain. This energy optimization combined with extensive building integration of photovoltaic and solar thermal systems allow the house to produce a net annual surplus of energy, more than is needed to supply the house and its electric vehicles. This net surplus is fed into the public electricity grid, and contributes to the renewable component of the total energy mix.

2nd Floor Plan

The highly flexible layout of the floorplan also allows the house to adapt to a wide variety of urban and suburban living situations, as well as to the changing needs of its occupants over the life cycle of the building. Without a basement or any permanent foundations, the design reflects this flexibility in its consciously ephemeral presence on site.

Mobility and Immobility
Due to both the freedom from emissions offered by electric vehicles and their need for a dispersed charging infrastructure within cities, future living and mobility concepts are bound to grow more and more intertwined. This interdependency is addressed and explored in the ILEK prototype at the architectural, energy, and above all at the user levels. To bring these ideas across to the general public, a dynamic exhibition concept integrated in the showcase will allow visitors to receive real-time information about the project and interactively explore the technology and architecture behind it. Centred on its glistening energy core, flanked both in function and in concept by the next generation of mobility and living, the plus-energy house presents a bold new vision of the future.

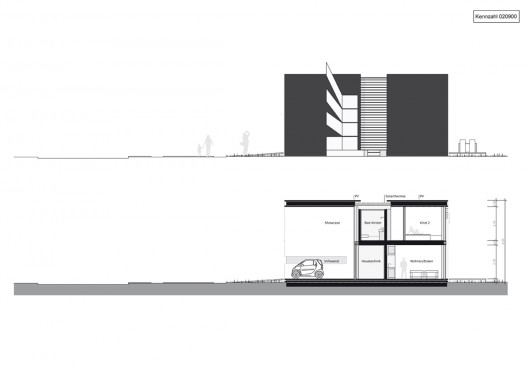

Elevation - Section

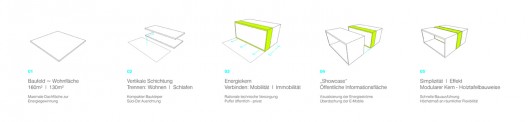

Design Evolution Diagram

ABOUT THE ILEK

In both its research and its teaching activities, the Institute for Lightweight Structures and Conceptual Design (ILEK) at the University of Stuttgart merges the architectural subject areas of design and form with the engineering fields of analysis, construction, and material science. Following a highly interdisciplinary approach, the institute focuses on the conceptual and cross-material development of all types of building technologies and structural systems. The scope of work spans from textile and glass construction, to new possibilities in steel and pre-stressed concrete design, to ultra-lightweight structures using adaptive systems. From the individual details to the overall system, the aim is to optimize form and structure with respect to energy and resource consumption, durability and reliability, recycling potential and environmental sustainability. Vital to the success of this approach is the integration of the institute in an active international network with other leading research and teaching institutions, as well as collaboration with numerous industry partners.

In 1994 Werner Sobek assumed the chair of Frei Otto, and in 2001 added that of Prof. Dres. Jörg Schlaich. Both professors contributed fundamentally to the worldwide reputation of the University of Stuttgart and advanced its high level of recognition both for lightweight and concrete structures. By merging both chairs in a symbolic act in 2001, Werner Sobek reunited two disciplines, architecture and engineering, which have become increasingly separated over the last two centuries. In 2008, Werner Sobek additionally accepted a call to become Mies van der Rohe Professor at the Illinois Institute of Technology (IIT) in Chicago. Balthasar Novák works as an Associate Professor at the ILEK. Research studies in the field of lightweight structures are coordinated by Dr. Walter Haase. Part of the ILEK (Pfaffenwaldring 14) is housed in the famous tent structure, originally erected as a prototype to test the construction and assembly procedure of the German Pavilion for the World Expo 1967 in Montreal. Today, the building is widely regarded as an icon of modern architecture.
