VillAnn / Wingardh

  • 00:00 - 13 December, 2008
VillAnn / Wingardh

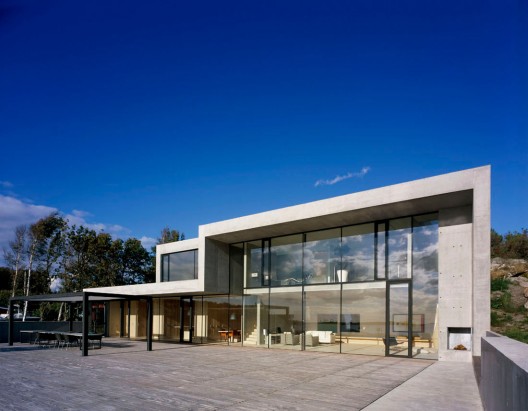

VillAnn / Wingardh, © James Silverman
© James Silverman

© James Silverman © James Silverman © James Silverman VillAnn / Wingardh +8

  • Architects

    Wingårdh Arkitektkontor
  • Location

    Särö, Sweden
  • Architects In Charge

    Gert Wingårdh, Joakim Lyth, Danuta Nielsen, Karin Wingårdh
  • Photographs

  • Area

    346.0 sqm
  • Project Year

    2005
  • Construction

    Elu Konsult AB, Göteborg, Paul Palmqvist
  • Landscape

    NOD, Natur Orienterad Design
  • Interior Wood

    Tranekaer-Teknik, Denmark
  • Client

    Private
  • More SpecsLess Specs

From the architect. I've been wanting to design this house for a long time. The obvious design, with a series of rooms arranged along a line. My client wanted to be sure that it was possible to construct a good house on the site before he went ahead and bought it. This meant that time was critical one autumn day in 2003.

The first design is very close to the real thing. The house's bulk extends over the whole of the permitted building width and has been placed as far back on the site as possible. A long, narrow pool has been built at the end of the site closest to the sea. The house thrusts into the slope in sections, while the pool is lifted and framed by two concrete walls. Villa Ann has an extremely simple plan. It has three rooms and a kitchen. These consist of a living room on the ground floor and two separate bedrooms upstairs. All generously proportioned.

© James Silverman
© James Silverman

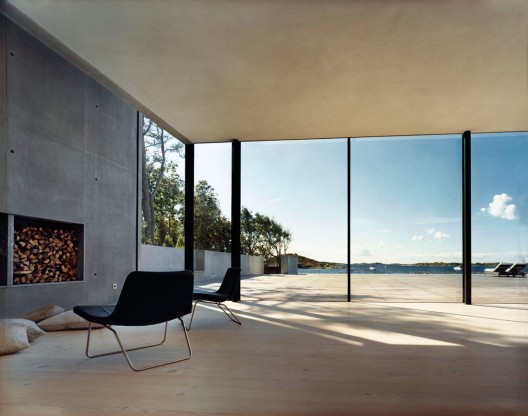

VillAnn is extremely oriented towards the sea in the west. All that separates the outside from the inside is a whole, thin glass membrane. (Well, comparatively thin - it consists of a 10 mm outer tempered glass pane that didn't even shake when hurricane Gudrun struck.) The house is made of concrete that has been cast on site. Thick sections made it possible to vibrate the concrete between the reinforcement bars to the smooth form plywood. The contrast is maximal - thick and thin, closed and open, man-made and natural.

© James Silverman
© James Silverman

Brushed and lightly white-glazed Douglas fir dominates the floors, joinery and tables inside the house. The floor boards are 30 centimetres wide and as much as 14 metres long. The pool has been cast in black concrete and the water runs over the edge on the western side. A steel frame with a fabric covering stands above a long, concrete table on the greying wooden decking, providing welcome shade.

© James Silverman
© James Silverman

The grounds in front of the house facing the sea have been designed by NOD. Zig-zagging steel girders define the outline of the parterre, which is suggestive of exaggerated waves of sand. There are different biotopes on each side. The parterre screens the inside of the house from the public road, which, via an easement, rather unfortunately separates the house from the sea.

Cite: "VillAnn / Wingardh" 13 Dec 2008. ArchDaily. Accessed . <http://www.archdaily.com/8941/villann-wingardh/>
Read comments

14 Comments

Frank Form · February 27, 2015

the two floor villa is well designed and the view is amazing!!! www.solidform.co.uk

mmmh... · February 13, 2012

Simple plan | VillAnn / Wingardh | http://t.co/rqc7hNZf via @archdaily #architecture #interiordesign

Magnus Strom · April 19, 2011

RT @designboom wingårdh: kuggen http://bit.ly/hx0aai
OH DEAR OH DEAR. What possessed him when he can do greatness? http://bit.ly/g1iP4P

power balance bänder kaufen · December 23, 2010

This is a very cool blog, thanks a lot for this! I've read a lot about this topic within the past and I agree with you.

Ramiro Shapiro · December 18, 2010

Good site.. I am going to take some time to examine your stuff..

Sol Riechman · December 08, 2010

Very efficiently written article. It will be beneficial to anybody who utilizes it, including me. Keep up the good work - i will definitely read more posts.

tebonin · November 20, 2010

TY for the great post! I wouldn't have found this myself!

tebonin · November 20, 2010

Can I reference some of this on my site if I include a backlink to this page?

tebonin · November 20, 2010

Thanks a ton for writing this, it was unbelieveably informative and showed me tons

cfrart · February 24, 2010

..egyszerü,szép..

meangene · December 15, 2008

More photos please.
Looks great.

Alex (CorbusieLer) · December 14, 2008

Veri beautiful house.

peppy · December 14, 2008

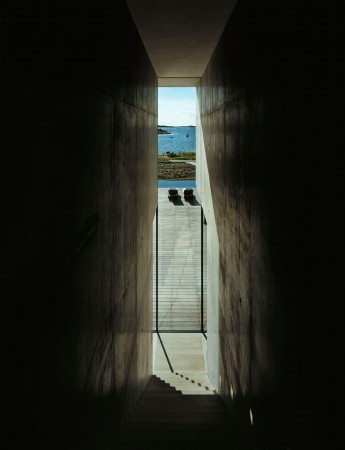

I like the view from the stair, the experience of descending it is so intense...
