Tianjin Elementary School / Vector Architects + CCDI

© ShuHe

Architects: Vector Architects +
Location: Tianjin, Xiqing,
Design Architect: Gong Dong
Partners of Vector Architects: Gong Dong, Chien-ho Hsu
Collaborating Architects of CCDI: Qiang Lv
Project Architect & Site Architect of Vector Architects: Nan Wang
Client: County Government
Project Area: 18,000 sqm
Project Year: 2010
Photographs: ShuHe

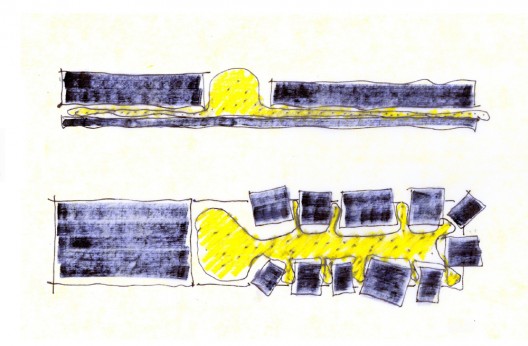

concept diagram

Our goal is to establish a unique place within the school that encourages interaction between the students and teachers through their daily learning and teaching life. The basic program consists of 48 classrooms, a number of special program classrooms, cafeteria, training gymnasium, administration areas and an outdoor exercise field.

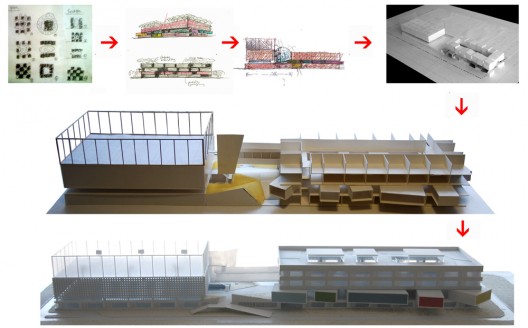

process models
© ShuHe

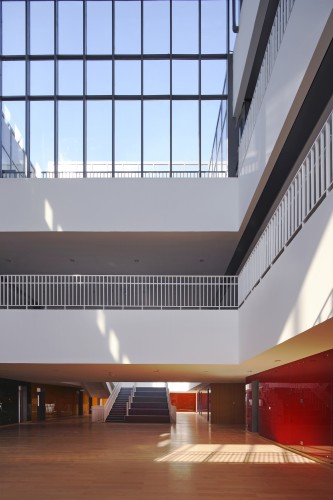

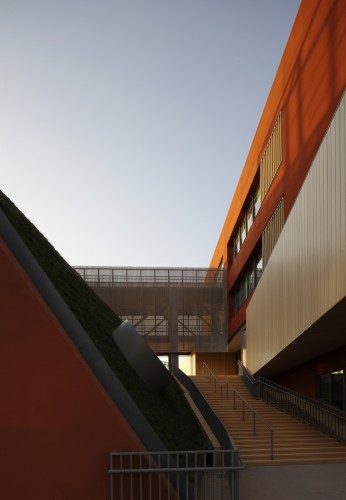

The design process starts with an analytical research of the spatial pattern of interactive activities, both in plan and in section. A series of physical study model were built along the process, in order to seek the most reasonable spatial and programmatic layout. Eventually the best location of the primary interactive space is discovered to be on the 2nd floor, sandwiched by regular classroom floors, and connected to the skylight through the central atrium, where natural ventilation were maximized. The space is defined by the surrounding special program classrooms, and extends itself to a green roof deck at the south side, which is also the pivot point of the site arrangement. The deck connects to the main school entrance, the outdoor fields, and different parts of the building at different heights by stairs, ramps and bridges. Such a “Platform”, consisting of indoor space and outdoor deck, not only generates and amplifies energy of interactions, also adds visual characters to the exterior building appearance because of the application of distinctive materials and space modules.

© ShuHe

A series of green technologies are proposed in this project, such as geothermal system, storm water management, green roof, permeable landscape, passive ventilation, maximized natural daylight, recycled material and etc.

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Tianjin Elementary School / Vector Architects + CCDI" 27 Sep 2010. ArchDaily. Accessed 18 Jun 2013. <http://www.archdaily.com/79227>
