Between the Waters: The Emscher Community Garden / Marjetica Potrc and Ooze

Jul 2010

By Nico Saieh — Filed under: Art ,Structures , Germany, Marjetica Potrc, Ooze

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Marjetica Potrc and Eva Pfannes & Sylvain Hartenberg, Ooze (Paris & Rotterdam)
Location: Sturmshfo, Essen-Altenessen, ‘Emscherinsel’ at the previous ‘Mathias Stinnes Hafen’, Germany
Team: Florian de Visser, Shilesh Hariharan
Areas: 1000 m2
Budget: 200,000 EUR
For the event: Emscherkunst.2010
Use: Art installation: Autonomous water treatment
Client: Emschergenossenschaft
Design Period: 8 months system & community gardens
Construction Period: 2 months
Completion Construction: May 2010
Photos: Roman Mensing, Ooze, Florian de Visser

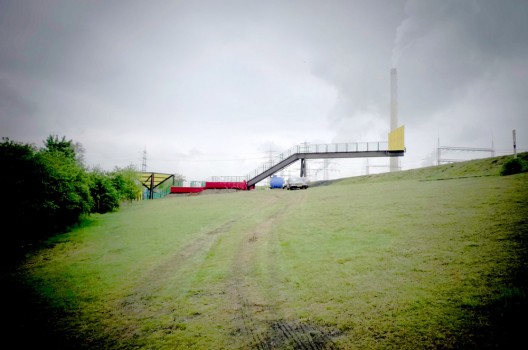

The project Between the Waters: The Emscher Community Garden is located at one of the narrowest points on Emscher Island, between the Emscher River and the Rhine-Herne Canal. The walk through the project starts next to the Rhine-Herne Canal, with visitors entering the Community Garden; it then leads uphill beside the fully exposed water supply and treatment installation. The walk ends on an elevated platform above the Emscher River dyke. Here visitors can view the challenging topography of the landscape and see for themselves how the highly polluted (and for this reason fenced-off) Emscher River is elevated above the nearby towns, which have sunk as a result of mining activity in the previous century. Looking down the slope towards the Rhine-Herne Canal, they have a clear view of the complex water processing installation, which works with the water on the site between the two waterways.

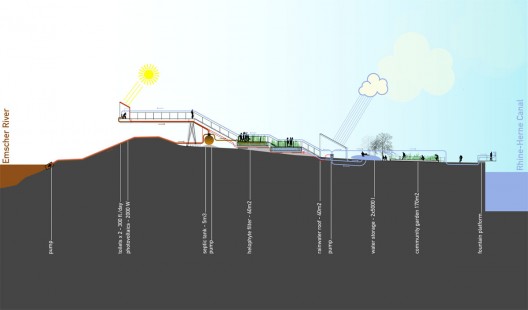

concept section

The project is a complete and sustainable water-supply system. It uses only water from the immediate area: the Emscher River, the Rhine-Herne Canal, rainwater and waste water. The main elements of the water supply and treatment installation are two toilets located above the Emscher River, a pump that draws water from the river into a septic tank, a constructed wetland (a helophyte filter), a rainwater-harvesting roof, water storage bags (?pillow tanks?), and a fountain located above the Rhine-Herne Canal that offers visitors water of drinkable quality. In addition, the system provides water for irrigating the Community Garden. The project teaches visitors about the various stages of the water supply system ? usually hidden underground in their everyday environment ? and engages them in such issues as the conservation, treatment and use of water.

Between the Waters: The Emscher Community Garden shows it is possible to reclaim and restore the natural habitat by using low-tech processes to construct a high-tech system. Although designed for this particular site, this is a mobile system that can be replicated in other localities. Equally important, through the Community Garden the project demonstrates the importance of local residents? involvement with sustainable practices relating to water, including water conservation and local food production. The project underscores nature?s ability to restore itself and the power of local communities to make this happen.

The opening of the art installation took place on the 29th of May, until 5th of September.

: © Courtesy of Potrc and Ooze

: © Ooze

: © Ooze

: © Ooze

: © Ooze

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Ooze

: © Roman Mensing

: © Roman Mensing

: © Ooze

: © Roman Mensing

: © Florian de Visser

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: © Roman Mensing

: concept section

: © Potrc

: Concept

: concept

: concept
