Valdemorillo House Extension / Padilla Nicás Arquitectos

May 2010

Uploaded by Nico Saieh — Filed under: Houses ,Refurbishment ,Selected , Padilla Nicás Arquitectos, Spain, Wood

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Padilla Nicás Arquitectos – Francisco José Padilla & Juan Manuel Nicás
Location: Urbanización El Paraíso, Valdemorillo, Madrid, Spain
Collaborator: Isabel Colino
Structure: Alejandro Bernabéu & Jorge Bernabéu
Project Area: 180 sqm
Design Year: 2004-2005
Construction Year: 2006-2008
Photographs: Padilla Nicás Arquitectos

The project is an extension of a single family home located next to the Valmayor reservoir with a small pavilion and terrace oriented towards the water.

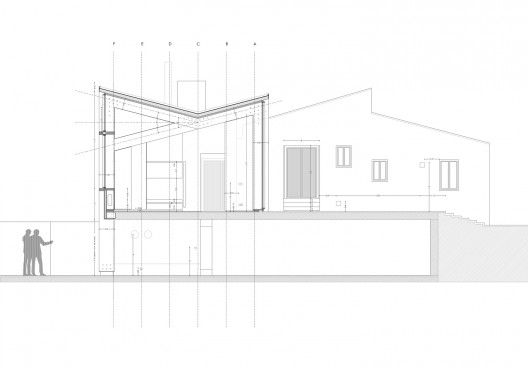

section 04

The integration of the new building with the existing comes as a result of the sloping roofs, while the laminated wood structural frames distinguish it as different. This ‘light’ construction seeks to make a transition between the original house and the surrounding landscape.

The project is hardly visible from the entry walkway, except for the gables that project slightly, finally becoming apparent from the interior of the parcel.

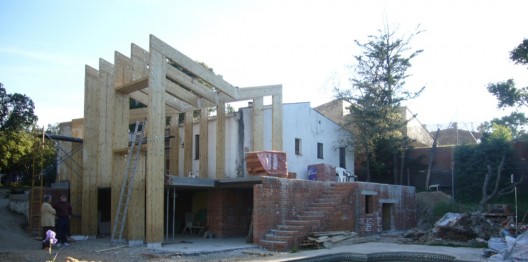

The structure consists of prefabricated laminate wood frames. They were assembled on site and painted white to blend with the exisiting house. The assembly at each joint employs a steel plate sandwiching the web of each frame and bolted from the exterior.

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: © Padilla Nicás Arquitectos

: level 00 plan

: level -01 plan

: section 01

: section 02

: section 03

: section 04

: structure

: detailed section

: details
