La Trobe Institute for Molecular Science / Lyons

  • 05 Apr 2013
  • Educational Featured Selected Works
Courtesy of

Architects: Lyons
Location: La Trobe University, , Australia
Year: 2013
Photographs: Dianna Snape, Michael Evans, and Nils Koenning

Courtesy of Lyons

The La Trobe Institute for Molecular Science (LIMS) is a major new building on La Trobe University’s Bundoora Campus, which will meet the University’s long-term needs in terms of student learning and research in the science disciplines. Lyons were appointed following a design competition sponsored by the Australian Institute of Architects. An integral part of the brief was for the project to have a ‘transformative’ effect in terms of the architecture and identity of the campus, which had previously been built within the strict guidelines for materials and heights.

Courtesy of Lyons

The building is designed around the University’s specific model for creating a pathway for students in science; an environment where students can develop into student researchers and ultimately into lead researchers.

Courtesy of Lyons

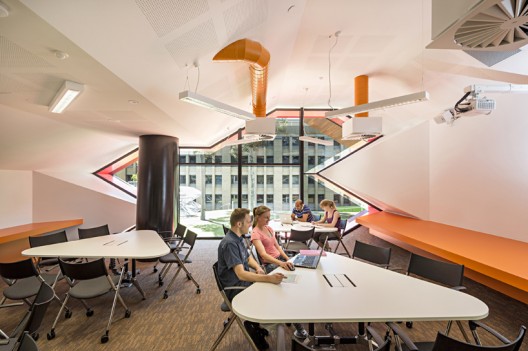

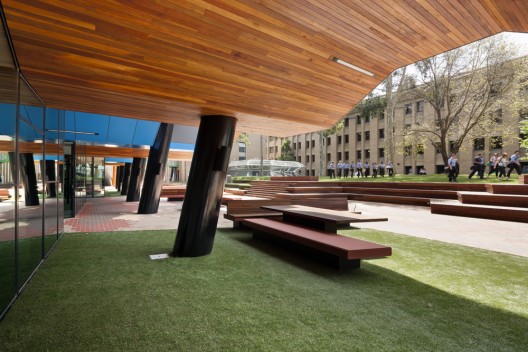

The lower levels of the building accommodate first to third year undergraduate learning spaces – with large open flexible labs (accommodating teaching cohorts for 160 students) connected with ‘dry’ learning spaces. This allows students to move between laboratory based project work, to digital and collaborative learning activities within the adjacent spaces. At ground level, these learning spaces breakout to new landscaped spaces, extending the idea of placing students at the centre of outside social and learning areas.

Courtesy of Lyons

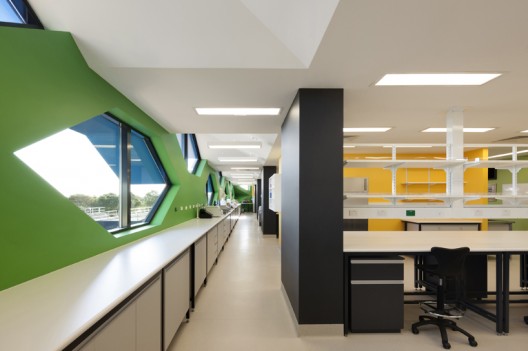

The upper three levels of the building are research focused and based around a highly collaborative model. All laboratories are large open flexible spaces where teams are able to work together, or expand and contract according to research funds. These large ‘super labs’ are located immediately adjacent to write-up spaces, allowing a very direct physical and visual connection between all research work areas.

Courtesy of Lyons

A series of further shared spaces, including a major conference room, staff ‘college’ lounge and informal meeting spaces, are also located on the research levels. The design is fully integrated with the adjacent existing building, which accommodates a number of other LIMS research staff and laboratories.

Courtesy of Lyons

The project design also responds to the unique attributes of the University’s Bundoora Campus, with its elevated ‘concourse’ at the first level. The primary reception to the building is, in fact, located at this concourse level at a ‘cross roads’ of the campus circulation in a north/south direction.

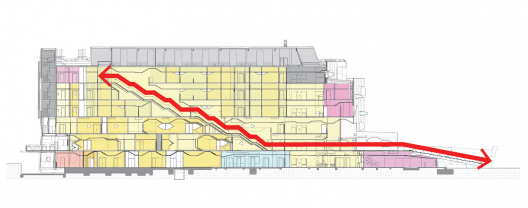

Section

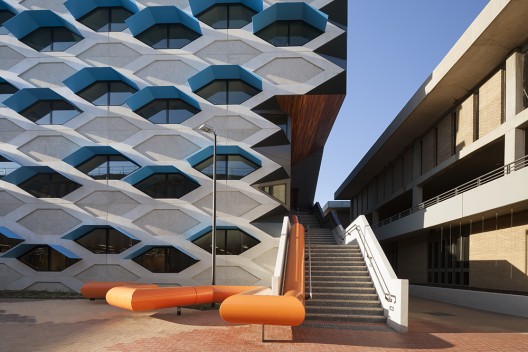

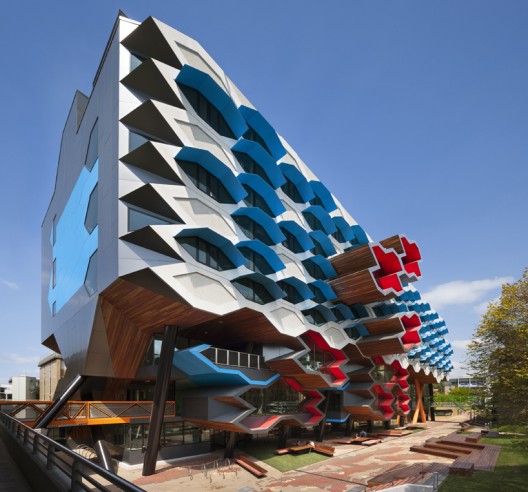

A major stairway rises through the centre of the building, connecting the student and research levels – as a form of representation of the ‘pathway’. The cellular exterior of the building is derived from ideas about expressing the molecular research that is being undertaken within the building, and is adjusted via the materiality of the building itself. The walls are primarily precast concrete, with the cells providing a ‘lower’ and ‘upper’ window into the various spaces, aiding the penetration of daylight. The cellular concept also creates a framework for a number of distinctive spaces for students to occupy or for research staff to meet and collaborate.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "La Trobe Institute for Molecular Science / Lyons" 05 Apr 2013. ArchDaily. Accessed 25 Apr 2014. <http://www.archdaily.com/?p=355680>
