A year and a half ago, OMA unveiled the first images for a project in , on  schematic design phase. Basically it was a set of stacked low-rise blocks.

Today OMA sent us an update on this project, The Interlace, and more details appear.

The project is located on a green belt outside the capital city, and consists on 31 stacked apartment blocks, each six-stories tall and identical in length, resulting in 170,000sqm of gross floor area for 1,040 apartments.

What is interesting about the project is how these stacked volumes achieve a high density, while still maintaining privacy and long-range views as you can see on the renderings.

The second result of this “stacked” strategy, are the common spaces filled with tropical green. By looking at the plan view of the complex, a series of inner courtyards appear on the empty spaces between the blocks. The project  turns then into a rich vertical community, apart from the single tower projects seen in the area. Extensive residential amenities and facilities are interwoven into the lush vegetation and offer opportunities for social interaction, leisure, and recreation.

Above-ground vehicular circulation is minimized, liberating large green areas within the development. The Interlace incorporates sustainability features through careful environmental analysis of sun, wind, and micro-climate conditions on site and the integration of low-impact passive energy strategies.

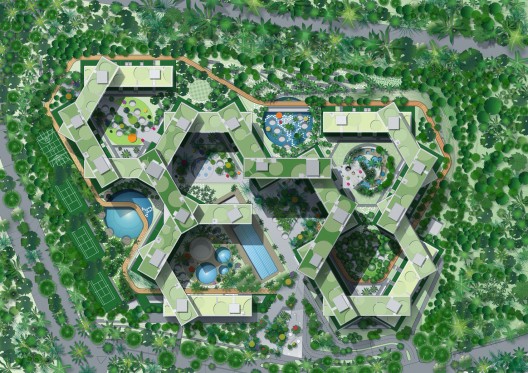

MASTERPLAN 7
© OMA

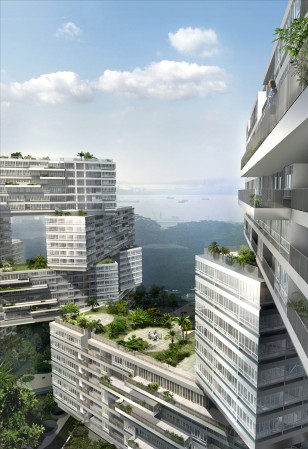

1252088758-v7mr
© OMA

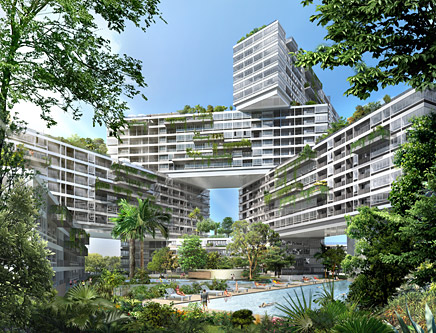

1252094161-v8
© OMA

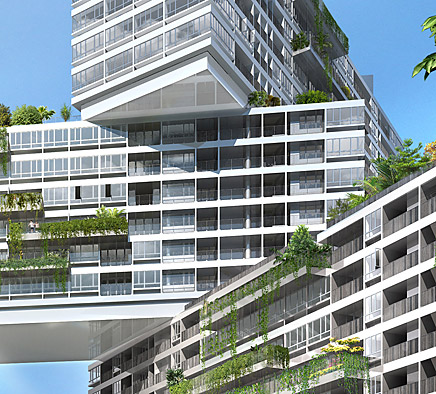

1252093941-v6-blocks
© OMA

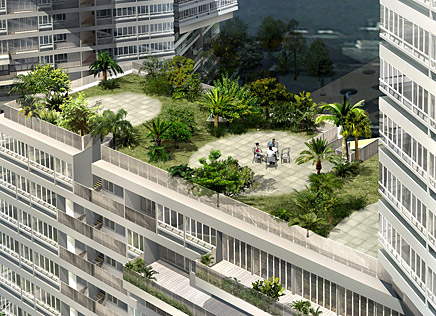

1252093937-v5-inner
© OMA

The design is led by Ole Scheeren together with Eric Chang, Associate of OMA.

Developer: A CapitaLand-led consortium comprising CapitaLand Residential Singapore Pte Ltd, Hotel Properties Limited and a third shareholder.
Lead Designer: Ole Scheeren, Office for Metropolitan Architecture (OMA) Beijing
Project Architect: RSP Architects Planners & Engineers (Pte) Ltd
Landscape Architect: ICN Design International Pte Ltd
Quantity Surveyor: Davis Langdon & Seah Singapore Pte Ltd
Type of Development: Condominium comprising 1,040 units with extensive clubhouse facilities and retail storefronts
Unit Types: A range of two-, three- and four-bedroom apartments, penthouses and duplex garden units. Areas will vary from 75 square meters for a two-bedroom unit to 586 square meters for a penthouse with private roof garden
Site Area: Approximately 81,000 square meters (871,884 square feet)
Gross Floor Area: Approximately 170,000 square meters (1.8 million square feet)
Floors: 24 stories above ground with one level of basement parking

Cite: Basulto, David. "The Interlace / OMA" 04 Sep 2009. ArchDaily. Accessed 24 Nov 2014. <http://www.archdaily.com/?p=34142>
