High Line 23 / Neil M. Denari Architects

Jul 2009

By Amber P — Filed under: Housing , Mixed Use, Neil M. Denari Architects, New York, USA

Architect: Neil M. Denari Architects
Location: New York, USA
Principal in charge: Neil Denari
Project Architect: Duks Koschitz
Project Designer: Stefano Paiocchi
Project team: Carmen Cham, Alex Janowsky, Philipp Traexler, David Aguilo, Steven Epley, Paola Vezzulli, Joe Willendra
Collaborating Architect: Marc Rosenbaum Architects
Structural engineers: Desimone Consulting Engineers
Lighting design: TWS & Partners
Façade Consultant: Front
Interior design: Thomas Juul-Hansen
Lighting design: Lighting Design Alliance
MEP Engineering: Ambrosino, DePinto & Schmieder Consulting Engineers
Construction Management: Bovis Lend Lease LMB
Land area: 352.5 sqm
Constructed area: 3,642 sqm
Status: Under Construction
Images: Neil Denari Architects

The West Side High Line in New York City is a continuous elevated bridge structure that will become, over the next ten years, a unique linear urban park. Designed by Field Operations and Diller Scofidio + Renfro, the High Line Park will advance a merger between various urban ecologies both found and implanted. By definition, the High Line has created new relationships between building mass and, in certain local situations, has engendered new forms of urban infill, far different than simple mid-block party wall scenarios. Where the High Line passes through the Chelsea Arts District at 23rd Street, one of these unique site conditions exists. It is here that NMDA has been commissioned by developer Alf Naman to produce a slim-fit, 14 story building for ground floor galleries and 12 condo-lofts rising next to the High Line. This structure is precisely shaped by a confluence of forces, that also like the High Line Park, are a combination of both found and implanted ecologies.

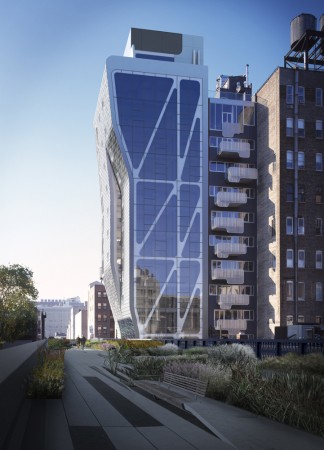

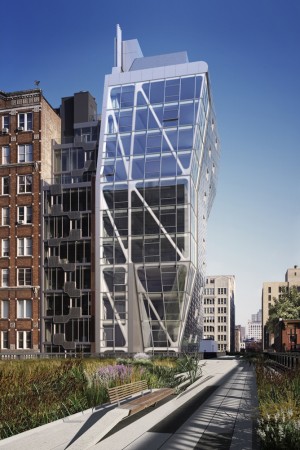

Consisting of one condominium per floor, the main living areas and views are oriented toward the south, while the east façade facing the high line is formed as a sculptural surface with smaller windows allowing privacy and framed views across Manhattan. A curtain wall of glass and stainless steel panels hangs on a complex cantilevered steel frame, generating expression within systematic economy. Since the building sits in the middle of the Arts District, it attempts to deliver a commercially viable, highly crafted object that can take its place among the art shown in the nearby galleries.

HL23 is seeking a LEED-certified gold rating.

: plans 01

: plans 02

: elevations

: sections

: details

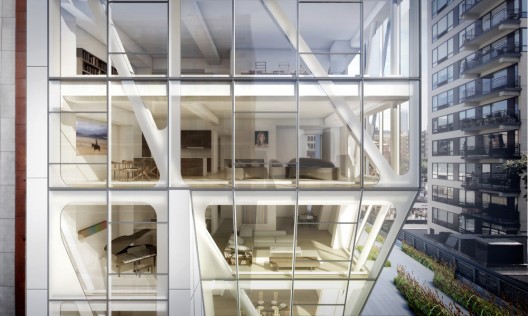

: one unit perspective

: corner section perspective
