House at lake Rupanco

  • 01:00 - 5 July, 2012
House at lake Rupanco
House at lake Rupanco, © Luis Izquierdo
© Luis Izquierdo

© Luis Izquierdo © Luis Izquierdo © Luis Izquierdo © Luis Izquierdo +23

  • Architects

  • Location

    Rupanco, Puerto Octay, Los Lagos Region, Chile
  • Design Team

    Luis Izquierdo, Antonia Lehmann
  • Engineers

    Luis Soler P. y Asociados
  • Area

    353.0 sqm
  • Project Year

    2011
  • Photographs

From the architect. This is a country house located in a prairie along a gentle slope, facing an inlet at the west shore of the lake Rupanco, Chile, around 900 km south from Santiago. It has five guest bedrooms, each of them with its own bathroom, a main bedroom, a spacious living and dining room, a kitchen, a service room, and a garage. All these rooms are placed in a long pavilion facing the lake. They are connected at the rear by a roofed gallery open to an interior patio.

© Luis Izquierdo
© Luis Izquierdo

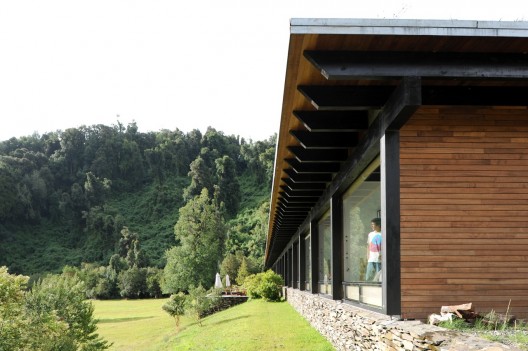

The pavilion has an exposed regular structure made of laminated wood beams coated in black. The structure consists of 2 rows of square pillars with a footprint of 19 x 19 cm. They are set in a distance of 370 cm supporting a master beam of 19 x 34 cm, built without dowels. On top of them sits a group of secondary beams of 9 x 34 cm, each arranged in a distance of 78 cm supporting a flat roof planted with the same grass of the prairie. The concrete chimney of the living room together with the series of partition walls between the bedrooms brace the wood arcades from the horizontal loads. The ceiling made of native wood is nailed to the secondary beams. Together with the wooden sheets of the roof, it forms a rigid plane. All the partition walls have a double row of metal studs covered by plaster sheets or native wood. The interior pavements are made of the same wood, stacked on the slab.

© Luis Izquierdo
© Luis Izquierdo

The retaining walls of the patio, of the pavilion’s basement as well as of the terrace in front, are made of masonry with local stones. The curved wall surrounding the patio follows the contour line of the prairie.

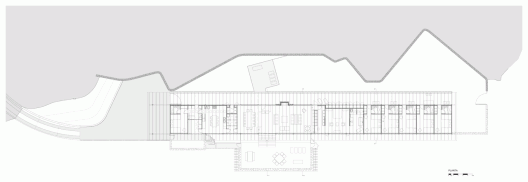

Plan
Plan

The house finds its own place within the landscape while remaining part of it.
