New Terminal at Lucknow Airport / S. Ghosh & Associates

New Terminal at Lucknow Airport / S. Ghosh & Associates
Courtesy of S. Ghosh & Associates
Courtesy of S. Ghosh & Associates

Architects: S. Ghosh & Associates Location: Lucknow, India Team: Sudipto Ghosh and Sumit Ghosh (Principle Designers) as well as Mitesh Kapadia, Rashmi Vakharia, Naeem Rushnaiwala and Ketan Bhartia (Associate Designers) Terminal Area: 20,000 sqm. Site Area: 56,000 sqm. Total Cost: Approx. US $ 23 million Photographs: S. Ghosh & Associates

Courtesy of S. Ghosh & Associates Courtesy of S. Ghosh & Associates Courtesy of S. Ghosh & Associates Courtesy of S. Ghosh & Associates +23

Unlike other buildings that bear the influence of the place where they take root, the Airport terminal has an additional obligation to the sky. The airports belong as much to the ether that keeps the aircrafts buoyant, as to the cities to which they become gateways. The notion of flight and man’s mythic fascination with it is reborn in every child as he folds his paper plane to launch it into the sky. The paper plane with its supple, folded wings – the symbol for that elemental flight that catches our fancy as children – becomes the starting point for the design of Lucknow Airport.

Courtesy of S. Ghosh & Associates
Courtesy of S. Ghosh & Associates

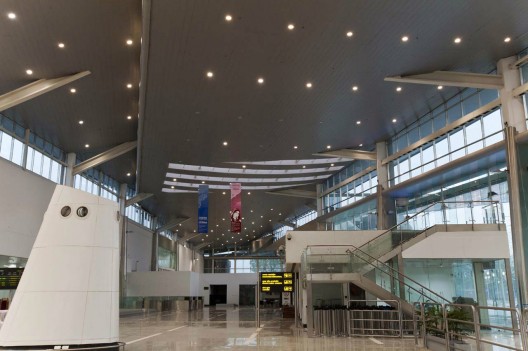

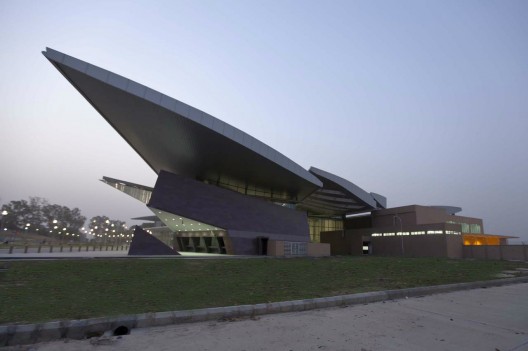

The terminal building’s elevation to the sky resembles the folded wings of the paper plane. Large wing-like cantilevers on either side of the 200m long terminal building suggest lightness and swiftness. The building itself appears as a dynamic object preparing to take flight. Inside, the gently curving ceiling gives the feeling of being under the belly of a giant aircraft.

Courtesy of S. Ghosh & Associates
Courtesy of S. Ghosh & Associates

The design of the building does not labor to represent the culture and heritage of the city, instead gets imprinted with the architects’ own experiences: nightmares about an aircraft crashing down through the roof, the exhilaration of flight, lightness, the indented front of the city as it wraps around the Gomti river, the ruins of the British Residency after the 1857 mutiny-ancient and unhomely, etc. Frosted etchings on the glass façade of the building bear the intricate patterns of chikankari work, Lucknow’s famous embroidery work.

Courtesy of S. Ghosh & Associates
Courtesy of S. Ghosh & Associates

The terminal is designed as a one and a half floor integrated terminal with clear movement paths for international and domestic travelers. There are two security holds on the ground floor for connectivity by bus and two on the first floor for approach to the aircraft through passenger boarding bridges. Three passenger claim belts of 60m lengths have been provided for the arriving passengers. Modern facilities of international standards are important for the country’s new terminals. These not only bring revenue to the airport but also make flying a much more pleasurable experience. The facilities that are envisaged for the proposed terminal are:

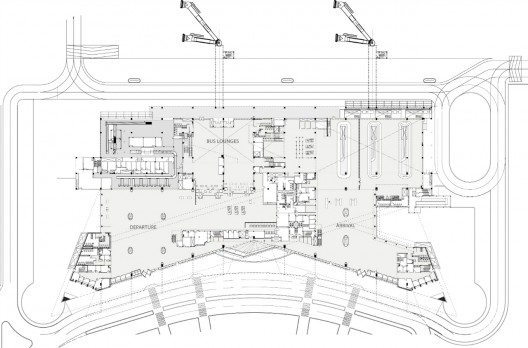

Ground Floor - Courtesy of S. Ghosh & Associates
Ground Floor - Courtesy of S. Ghosh & Associates

  • Business Centers
  • Conference Rooms
  • ATM and Shopping
  • Hospitality Desks
  • VIP Rooms
  • Child Care Rooms
  • Cafeterias
  • Internet Corners
  • Toilets

The terminal building is friendly towards the physically challenged, there are no mobility thresholds and all floors are accessible by lift.

The structure is formed by a set of variable span portals with fixed connections spanned across by variable space trusses that form the final form of the ‘wings’. The design of the section of the portal has been arrived at using a composite of rolled sections forming an overall dimension of 733mm by 375mm. The maximum span of the portals is roughly 43m. The maximum cantilever achieved by the space trusses is 24m.

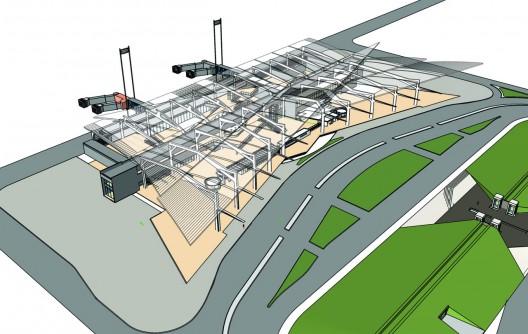

Structural Concept - Courtesy of S. Ghosh & Associates
Structural Concept - Courtesy of S. Ghosh & Associates

Structural Consultants: Descon United Pvt. Ltd. MEP Consultants: Spectral Services Consultants Landscape Architects: Design Accord Lighting Consultants: Lighting Design Works Acoustic Consultants: Suri & Suri Glazing Consultants: Dema Consulting

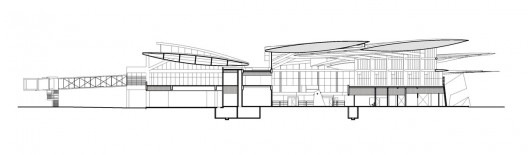

Section 2 - Courtesy of S. Ghosh & Associates
Section 2 - Courtesy of S. Ghosh & Associates

Project Description provided by S. Ghosh & Associates.
