FI House / Punto Arquitectónico

© Tamara Uribe

Architects: Punto Arquitectónico, Alejandra Molina Gual, Mauricio Rosales Aznar, Israel Ramírez Segura
Location: , Yucatan, Mexico
Collaborator: Arq. Manuel Ferrer López
Cost: US $ 300,000.00
Completion: 2010
Land Area: 960 sqm
Construction Area: 380 sqm
Photoghaphs: Tamara Uribe

© Tamara Uribe

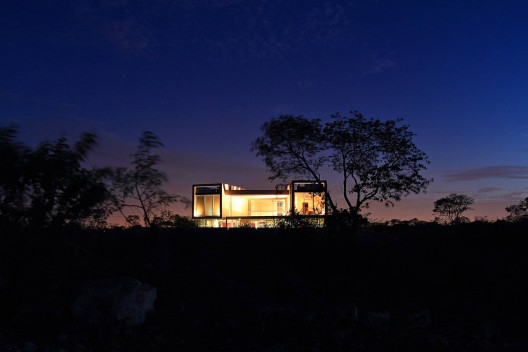

The Fi house is a dwelling situated in a low density residential zone in a village on the outskirts of the city of Mérida. The house is placed in a flat lot, with no vegetation in their limits, with the chance of maximize the external view.

© Tamara Uribe

The architectural program comes from different conditions and will of the client. As a special request, the house should take advantage of the natural sunlight and the prevailing winds. Also, the house should be developed around the swimming pool, always in touch with the garden through the sights.

© Tamara Uribe

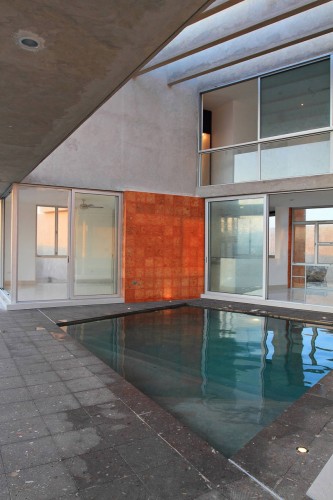

Being the pool the “heart” of the house, all the spaces are around it, perfectly linked through the big windows, that when they’re opened, the living room, the hall, the dining room, kitchen and terraces are merged in one. The scheme, around the central yard, is open as a “V” to the north and east, catching all the winds of the region to cross the entire house continuously.

© Tamara Uribe

Southwards, the façade is shown a little more covered, with windows that allowed the ventilation, but in smaller size to filter the sunlight from the hot weather where the house is found. Upstairs is designed to follow the two wings of the geometry downstairs; one is for the master bedroom, and the other, the kid’s room and a guest room. Both elements are linked direction south with the TV room. Northward,a free bridge connects the master bedroom with the kid’s room. Serving as a viewer and framing the visuals of the TV room.

© Tamara Uribe

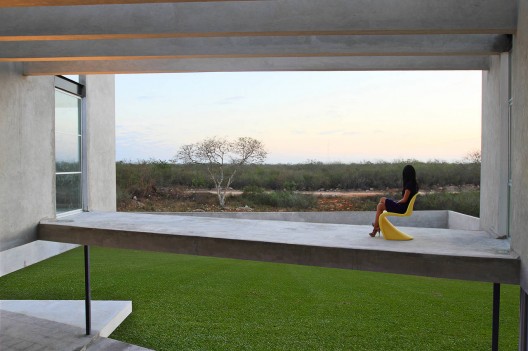

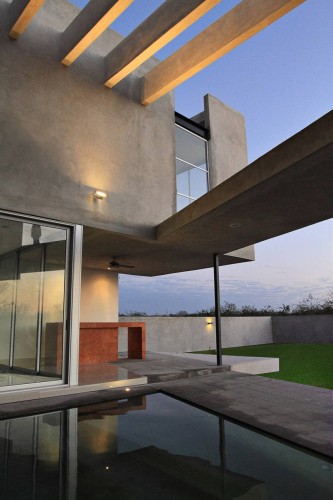

The purpose of the volumetry of the rooms is to maximize the view of the distant nature, opening both rooms to the outside, giving to them the sensation of closeness. Finally, the double height of the internal patio is covered with a concrete pergola.

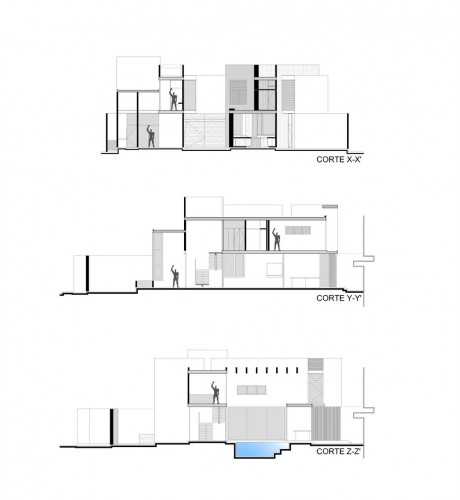

sections

The material palette is thought to contrast each of the elements of the house. The structural elements covered with stone of the region contrast with the lightness of the windows and with the sober texture of the concrete, and inside with the soft finishes of the white walls. The structure of the house is made of white walls of concrete blocks, with concrete and metal beams.
