Maison de Santé / atelier alassoeur architecture

  • 01:00 - 17 November, 2011
Maison de Santé / atelier alassoeur architecture
Maison de Santé / atelier alassoeur architecture, © Brice Desrez
© Brice Desrez

© Brice Desrez © Brice Desrez © Brice Desrez © Brice Desrez +26

  • Architects

  • Location

    Saint Maur, Indre, France
  • Architects

    atelier alassoeur architecture(s) / Emmanuel Alassoeur
  • Collaborating Architect

    Ludovic Biaunier
  • Mechanical Consultant

    BETh Taupin
  • Electrical Consultant

    Etelec Potron
  • Client

    Ville de Saint Maur
  • Area

    549.0 sqm
  • Project Year

    2011
  • Photographs

From the architect. This project is located on the commune of Saint Maur, in the outskirt of the city of Chateauroux, Indre, France. It consists in the conversion of an existing building and its extension at the end of a plot, into a multidisciplinary healthcare center able to accommodate medical and paramedical activities.

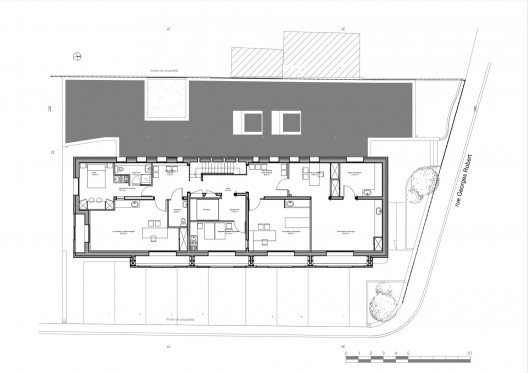

Floor Plan
Floor Plan

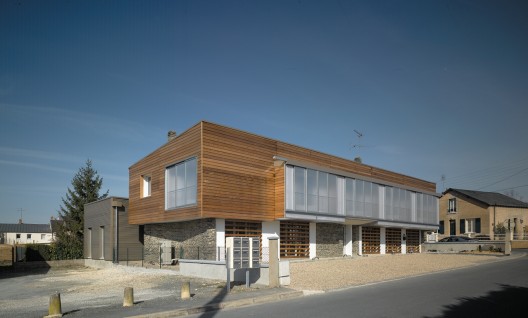

The existing building is typical of the fifties; the first floor differentiates itself from the ground floor thanks to its volume and the materials used. The project was realized in two stages as the first floor was still occupied when the renovation works started.

© Brice Desrez
© Brice Desrez

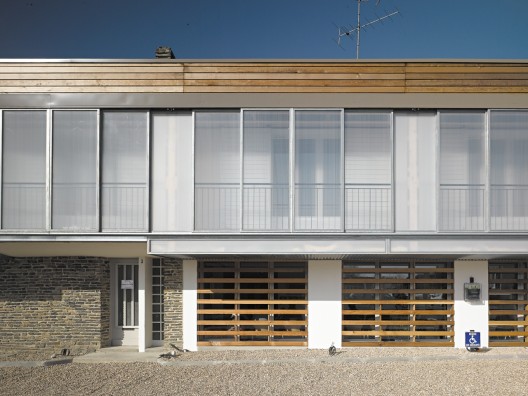

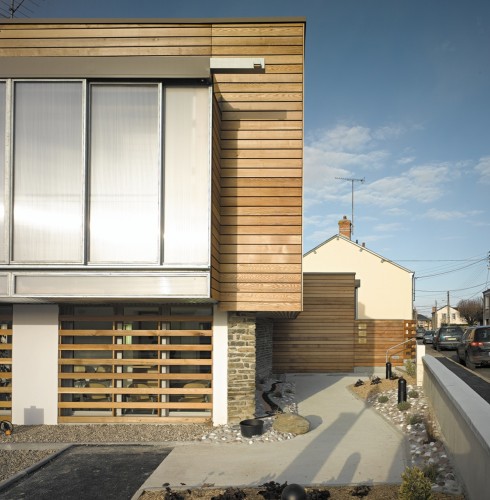

The existing building is modified in its external appearance: however we chose to keep its original frame, that's why the first floor differentiates itself from the ground floor. The wooden box (in red cedar) replaces the coating and the balconies are covered by a polycarbonate facade. This enabled us, by means of an exterior insulation and the use of glass to achieve higher energy efficiency and cooling of the building. The opening of the facade allows to control the provision of heat.

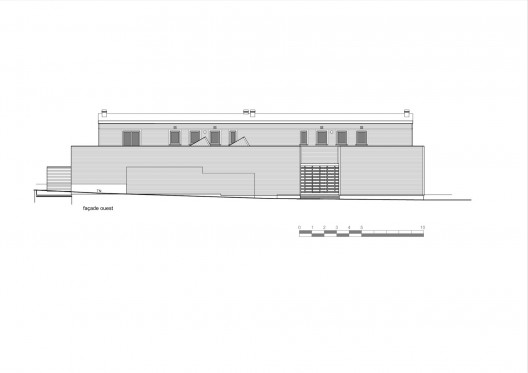

Elevation
Elevation

The ground floor is kept in its existing structure and the garage doors are replaced by windows protected with stud blinds which filter natural light. At the back, a wooden framework extension, which borders the property, is built to provide doctors and dentits' offices. Each room gets natural light either from the shed or the patio.

© Brice Desrez
© Brice Desrez

The lobby situated between the existing building and its extension is signalled with bright colors. The building is equipped with two calorific pumps and one mechanical ventilation with double flux. Natural light is favored and artificial light is controlled according to outside light and presence detection.

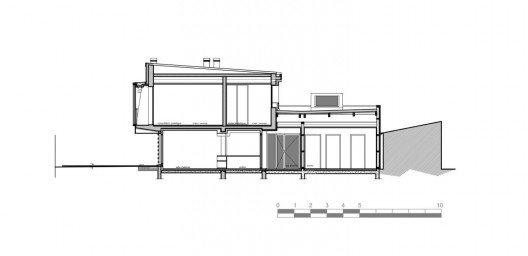

Section
Section
