Neues Museum / David Chipperfield Architects in collaboration with Julian Harrap

© Ute Zscharnt for

Winner of the prestigious Mies van der Rohe 2011 Award, The Neues Museum on Berlin’s Museum Island was originally designed by Friedrich August Stüler and built between 1841 and 1859.  In 1997, David Chipperfield Architects won the international competition for the rebuilding of the Neues Museum in collaboration with .  The design focused on repairing and restoring the original volume, respecting the historical structure.  Both the restoration and repair of the existing is driven by the idea that the original structure should be emphasized in its spatial context and original materiality – the new reflects the lost without imitating it.

Architects: David Chipperfield Architects in collaboration with Julian Harrap
Location: Berlin, Germany
Landscape Architect: Levin Monsigny Landschaftsarchitekten
Exhibition Design: architetto Michele de Lucchi S.r.L.
Structural Engineer: Ingenieurgruppe Bauen
Services Engineer: Jaeger, Mornhinweg+Partner Ingenieurgesellschaft
Site Supervision: Lubic & Woehrlin GmbH
Project Area: 20,500 sqm
Project Year: 2009
Photographs: Ute Zscharnt for David Chipperfield Architects, Courtesy of Flickr CC License / jonas-k, christiane-necker, stijn, audringje, dizdau

© Ute Zscharnt for David Chipperfield Architects

The Neues Museum suffered extensive bombing during the Second World War which left the building in ruins, with entire sections missing completely and others severely damaged. Few attempts at repair were made after the war, and the structure was left exposed to nature.

Courtesy of Flickr CC License / stijn

The key aim of the project was to recomplete the original volume of the parts that remained after the destruction of the Second World War. The original sequence of rooms was restored with new building sections that create continuity with the existing structure. The archaeological restoration followed the guidelines of the Charter of Venice, respecting the historical structure in its different states of preservation. All the gaps in the existing structure were filled in without competing with the existing structure in terms of brightness and surface.

Courtesy of Flickr CC License / stijn

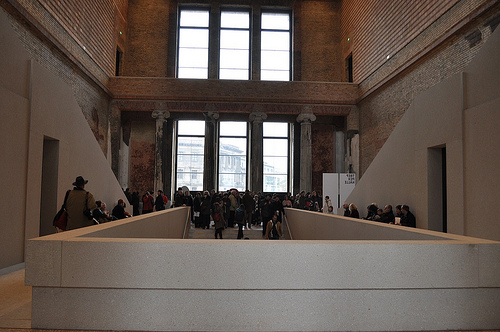

The new exhibition rooms are built of large format pre-fabricated concrete elements consisting of white cement mixed with Saxonian marble chips. Formed from the same concrete elements, the new main staircase repeats the original without replicating it, and sits within a majestic hall that is preserved only as a brick volume, devoid of its original ornamentation. Other new volumes – the Northwest wing, with the Egyptian court and the Apollo risalit, the apse in the Greek courtyard, and the South Dome – are built of recycled handmade bricks, complementing the preserved sections. With the reinstatement and completion of the mostly preserved colonnade at the Eastern and Southern side of the Neues Museum, the pre-war urban situation is re-established to the East. A new building, the James Simon Gallery, will be constructed between the Neues Museum and the Spree, echoing the urban situation of the site pre-1938.

Courtesy of Flickr CC License / christiane-necker

In October 2009, after more than sixty years as a ruin, the Neues Museum reopened to the public as the third restored building on Museum Island, exhibiting the collections of the Egyptian Museum and the Museum of Pre- and Early History.
