Old Tannery School / Tonkin Zulaikha Greer Architects & Greer Hindmarsh Architects

© Glenn Macari

Architects: Tonkin Zulaikha Greer Architects & Greer Hindmarsh Architects
Location: Waterloo, New South Wales, Australia
Design, Project Manager and Builder: Kane Construction P/L
Mechanical and Electrical Engineering: Wood And Grieve Engineers
Photographs: Bruce Usher, Glenn Macari, Nick Bowers

© Glenn Macari

The Old Tannery, a stout brick factory-style edifice built for the training of tanners in the 1930s, enjoys no official heritage status. However, our clients viewed it differently. Kane Construction, a building company that pursues unusual and inventive building projects, wanted their Sydney office building to reflect this interest.

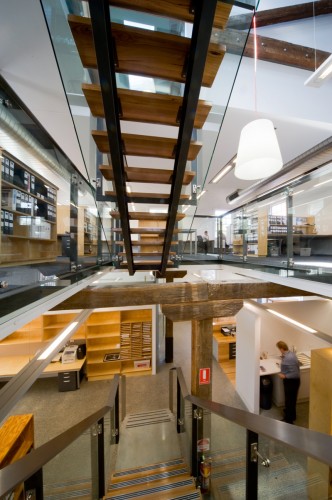

The main original building is two-storeyed, with robust ironbark trabiated structure, exposed bearers, joists and timber cross bracing, and handsome oregon trusses. Next to this were a few ad hoc buildings of lesser quality, with single brick skin in very poor condition.

© Glenn Macari
© Bruce Usher

The brief was to use the main Tannery classroom building for offices, print room and reception, which we located on the ground and first floors, and meeting rooms, two of which we housed on a new mezzanine floor. The building also needed WCs, a kitchen and impressive foyer area, and some means of identifying the company from the street without using overt street signage. Adequate car and bicycle parking and access for the disabled were also required.

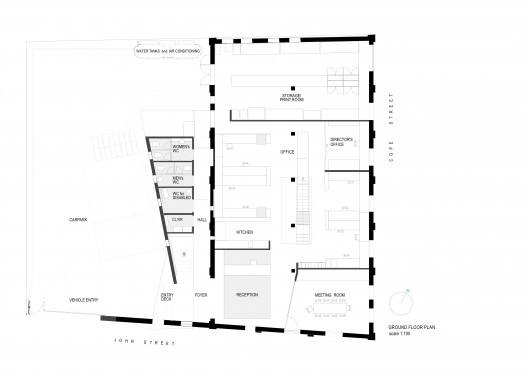

ground floor plan

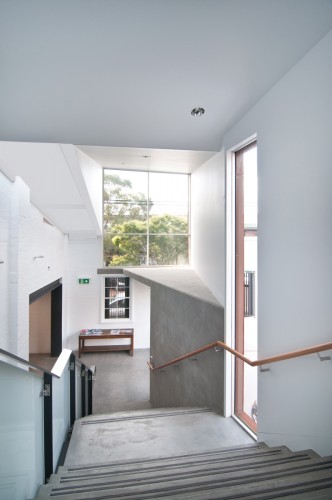

We decided to keep the main old corner building, exhibiting its sturdy craftsmanship, and to demolish the add-on sheds to make way for a new building for the main stairway, foyer, WCs and kitchen. This new part would be in a contemporary ‘landmark’ shape, but aligned with the original building, in the same scale and in strongly industrial-looking materials. It would be visually distinct from the original building so that the strong shape of each could be appreciated from the street.

© Bruce Usher

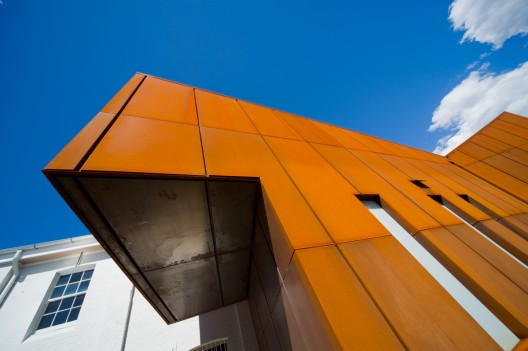

The new building was conceived as a striking interlocking double wedge form, cantilevered above the remnant front brick wall of the demolished shed, and connected to the old building via a glazed slot serving as a passageway. It is a sculptural pavilion in industrial materials: concrete finished through the centre in a double height glass lining, and clad in pre-rusted weathered metal.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Old Tannery School / Tonkin Zulaikha Greer Architects & Greer Hindmarsh Architects" 23 Feb 2011. ArchDaily. Accessed 25 Apr 2014. <http://www.archdaily.com/?p=112592>
