Candoso S. Martinho School Centre / Pitagoras Arquitectos

Feb 2011

Uploaded by Andrew Rosenberg — Filed under: Educational ,Selected , Concrete, Guimarães, Pitagoras Arquitectos, Portugal

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Pitagoras Arquitectos
Location: Guimaraes, Portugal
Project area: 1,000 sqm
Project year: 2006 – 2009
Photographs: Luis Ferreira

The land to be used for the Candoso S. Martinho School Centre, around 8000 m2 in size, is part of the town planning study produced by the passage of the A7 motorway and subsequent reorganisation of the plan for municipal roads in that area.

The land shows visible signs of land works that were carried out there, camouflaging its original topography. As marking components, an age-old cork tree stands out in the high area of the land and a slope filled by medium-sized cork trees and oak trees, which makes the transition between the two platforms which constitute the land.

plan 01

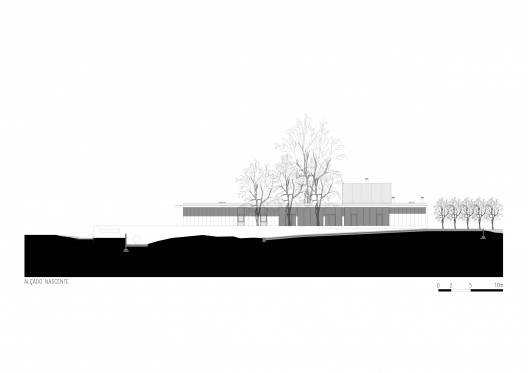

elevation 01

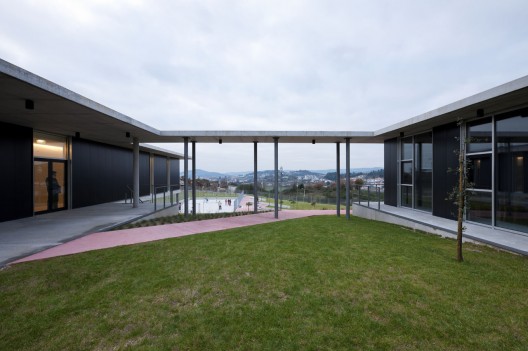

The building is established on the higher land platform delineating a central patio which develops length-wise in the East-West direction, and which involves the striking elements of the land – slope and cork tree area.

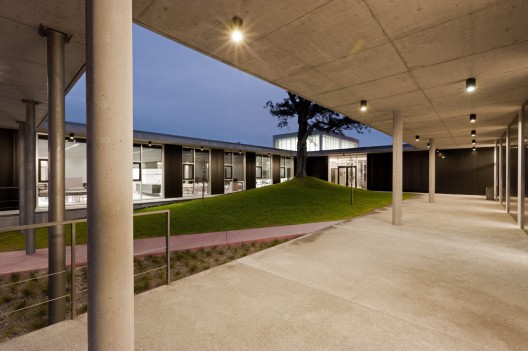

The primary school classrooms as well as the pre-school rooms are turned to face South, with the covered playgrounds facing North, protected from strong winds and in completely independent spaces.

With the saving of means one of the objectives to consider, without losing sight of architectonic and constructive quality criteria and durability and conservation criteria, a building with a simple geometry was chosen, in which the proposed programme fits in a linear form and the spaces are sequential and structured in a clear way.

In terms of size the intention is that the building is essentially defined by two horizontal levels which contain it, floor slabs and covering slabs. The vertical surfaces, opaque and transparent, are given the habitual role of defining the interior/exterior relationship and the hierarchy of different spaces.

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: © Luis Ferreira

: plan 01

: plan 02

: plan 03

: elevation 01

: elevation 02

: elevation 03

: elevation 04

: elevation 05

: section 01

: section 02

: section 03

: section 04
