Refuge Pavilion / Francisco Portugal e Gomes

Architects: Francisco Portugal e Gomes
Location: Santiago/Penafiel,
Collaborators: Fernando Gabriel, architect / João Alexandre Abreu, practice architect
Structure and Foundations: Fernando Gonçalves, engineer
Water Supply and Water Installations: Fernando Gonçalves
Electric Installations and Communications: MEGAVAR – Engenharia, Lda
Project leader: Sónia Almeida, engineer
Constructed Area: 83 sqm
Project year: 2002-2003
Construction year: 2006-2007
Budget: US $1,181 / sqm
Photographs: Fernando Gabriel, Jorge Garcia Pereira


The project anticipates the rearrangement of an already existent construction annexed to a small house, in a refuge pavilion with 50 sqm.

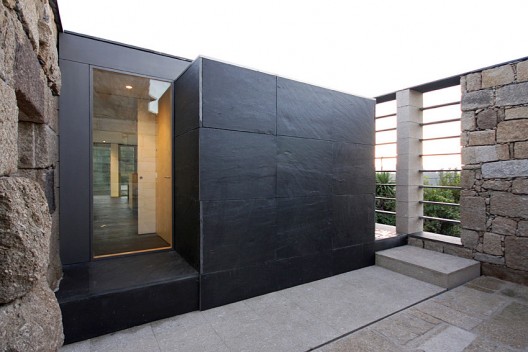

The implanting of the new building follows the limits of this existent construction in the west side, recycling small stone. The opposite side is rebuilt, realigned and, reusing the granite header from the best walls, is created an uncovered yard that serves as entrance and, at the same time, decompresses the proximity with the neighboring house. This reconstructed element melts itself with the new construction interlinking the granite wall with horizontal slate plates of 3 cm in thickness placed in small stone cubes making a continuous grate that draws the building.

This kind of approach aspires to bring this new building near in colours, materials and textures to some vernacular constructions of granite, wood and slate that already exist in the region.

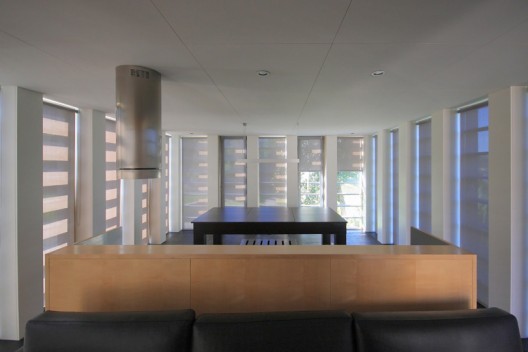

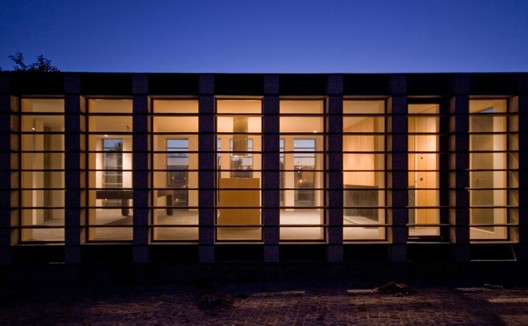

The pavilion organization departs from a nucleus of sanitary and shower fittings, placed between the yard and the covered area, trying to strengthen the entrance direction through its compression, in order to release all the remaining space in a single multi functional compartment. The inner space is marked with structural porches and carpentry facades, which shut make the total closing of this inner space and opened allow the perception of the surrounding landscape from an angle of 180º.

Cite: "Refuge Pavilion / Francisco Portugal e Gomes" 11 Jan 2009. ArchDaily. Accessed 28 Nov 2014. <http://www.archdaily.com/?p=11231>
  • roadkill

    wow… very nice… wonderful details and very routed in it’s context

  • http://suckerpunchdaily.com Kim

    Another generic Post-Modern building that could be built in any site in the world. Return of the Return of International style mixed up with fetischism for regionalism tourism.
    But it is true, nice details. Except the kitchen, too Ikea.

  • freq

    whatever you mean by post-modern, Kim.. I think you have your arch. history details mixed up a little bit – and I don’t get the “regionalism tourism” thing, would you mind elucidating that part?

    oh well…but to each her/his own – the debate will go round and round again the next time another lava-or-the-likes-of-it project is posted here.

  • roadkill

    … too much koolhas rhetoric, my my this is getting boring chemical kim!

  • http://www.l-a-v-a.net Kim

    If I call this Post-Modern, it is not referring to M.Grave and all the Classical nostalgia. It is a deliberate reference to late post-modernity with R.Meier (Corbusier nostalgia) and then the minimalism trend that started in the 90′s based on a nostalgia for the International Style, and early Modern architecture. Instead of Doric columns in plaster, you have boxes for the sake of boxes.

    The reference to regional tourism is a comment on the very effective, commercial and caricature package tours sold in Europe, called “eco-tourism”.

    I think it is important to be critical with minimalism, because it has become the most successfully commercial niche in architecture since 2 decades. There should be an obvious debate on what it means in term of masochism, and fetishism of commodity.

  • Ala

    I had the impression that archdaily presents only notable buildings and projects. This is a very generic building. There is no design invention or formal play or spatial exploration. I don’t know why this building is worth presenting. If you look at Ordos projects in inner Mongolia, China for example, you will understand what I mean by “design invention or formal play or spatial exploration.”

  • Frix

    I thought architecture didn’t resume itself to “design invention or formal play or spatial exploration”; to be honest, if archdaily was only presenting spectacular projects like these ORDOS jokes, it would be very boring.

    … I had a dream today … The whole world was made of ORDOS projects …

  • Rokas

    Anather “great architect”who’s deeply suffering when sees the simple and modest building,isn’t so,Kim?You’ll do better?Then go and do–everyone is capable to lay on the sofa and think deeply about”great architecture”-to do-more work,less talk,colleque!

  • http://suckerpunchdaily.com Kim

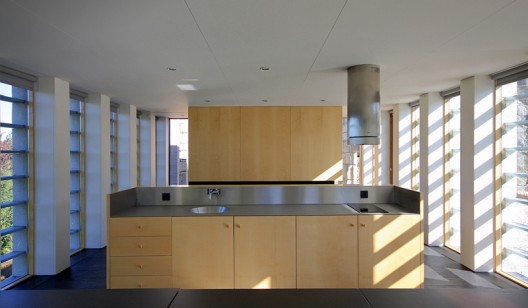

    Rokas, seriously, look at the kitchen bench, it’s really not that exciting. The wood work is basic, and there’s only 2 stoves and 1 sink. When you are cooking you are facing your guest that have only 1 small sofa facing a TV, while you give your back to the dinning table.
