Drywall and Plywood Panel Fasteners - SLX Range | Fastmount™

Drywall and Plywood Panel Fasteners - SLX Range
Drywall and Plywood Panel Fasteners - SLX Range Drywall and Plywood Panel Fasteners - SLX Range Drywall and Plywood Panel Fasteners - SLX Range Drywall and Plywood Panel Fasteners - SLX Range Drywall and Plywood Panel Fasteners - SLX Range

  • Available in

  • Use

    Drywall and plywood panel fasteners

  • Applications

    Retail, offices, hospitality, healthcare, educational, marine interiors

  • Characteristics

    Fire-rated options, two-stage engagement, adjustability

3 General Catalogs

General Product Catalog 2025

18 MB

pdf
Architecture Mini Catalogue 2025

45 MB

pdf
Furniture Mini Catalogue

5.9 MB

pdf
By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Fastmount™ Logo

Contact manufacturer

Fastmount™

Fastmount™ Logo

Contact manufacturer

Fastmount™

More from Fastmount™

Website

More about this product

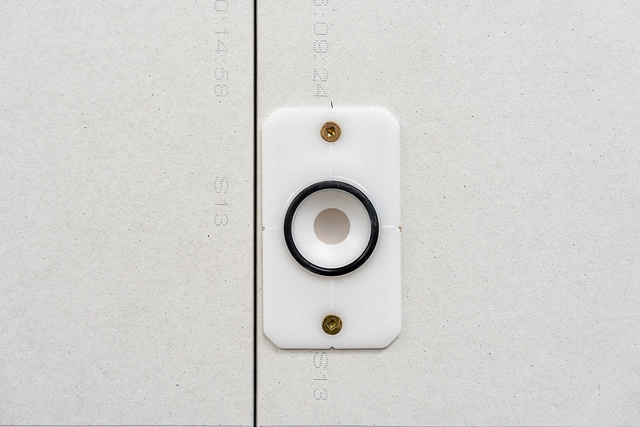

Fastmount is a company that designs and manufactures hidden fasteners for removable panels, providing precise alignment and high-quality finishes. The SLX Range offers advanced panel fasteners specifically developed for drywall and plywood applications in architectural and marine environments. These wall mounting clips incorporate a two-stage engagement system that allows for 6mm/¼” adjustability in all directions, facilitating precise panel alignment.

Features

  • 360° Adjustability: Allows for ¼" (6mm) of lateral adjustment before locking panels into place, enabling precise alignment and reducing rework.
  • Fire-Rated Options: Made from UL-94 fire-rated engineering plastics, the fire-rated version meets ASTM E119 fire testing.
  • Streamlined Installation: Engineered for installation in drywall or plywood, can be installed using standard screws or hollow wall anchors. Installation is fast, intuitive, and eliminates the gap between panel and ceiling.
  • Heavy-Duty Performance: Designed to support heavy panel weights, up to 165 lb. Available in 4 pull-out load ratings, ranging from 11lb up to 55lb pull out load per clip.
  • Non-Sequential Removability: Panels can be removed in any order, offering flexibility for maintenance and design changes.
undefined

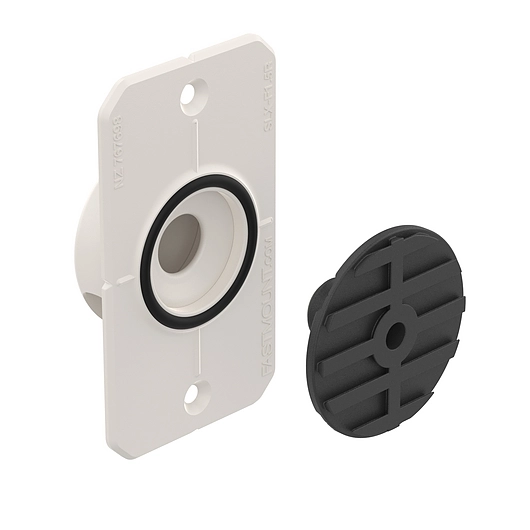

SLX-F1.5R-FR Fire Rated Female Clip for Drywall & Plywood

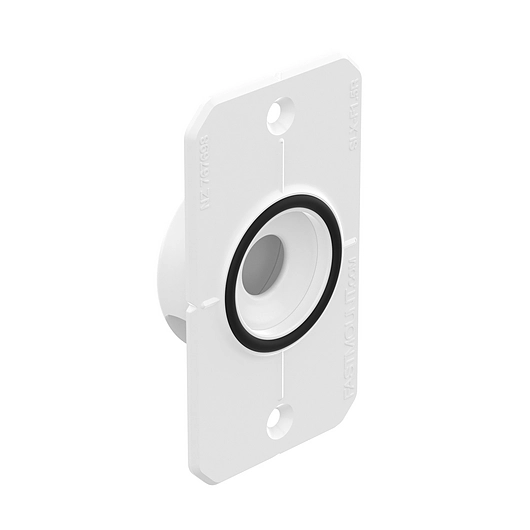

SLX-F1.5R Female Clip for Drywall & Plywood SLX-F1.5R-FR Fire Rated Female Clip for Drywall & Plywood

Female flush mount clip with screw fit installation, designed for drywall.

  • Fits into a ø38mm (1.5″) hole and is secured with 2 x #6 screws into the stud behind, or with 2 x metal hollow wall anchors when installing in drywall if the stud is missed.
  • Clip is 12mm (1/2”) deep to fit into current market substrates with up to 6mm of adjustability.
  • Available in a fire-rated version.
  • Compatible with SLX-M5, SLX-M10 and SLX-M18. No special tools required for installation.

Fire-rated Female flush mount clip with screw fit installation, designed for drywall.

  • Fits into a ø38mm (1.5″) hole and is secured with 2 x #6 screws into the stud behind, or with 2 x metal hollow wall anchors when installing in drywall if the stud is missed.
  • Clip is 12mm (1/2”) deep to fit into current market substrates with up to 6mm of adjustability.
  • Available in a fire-rated version.
  • Compatible with SLX-M18-FR.
  • No special tools required for installation.
undefined
undefined

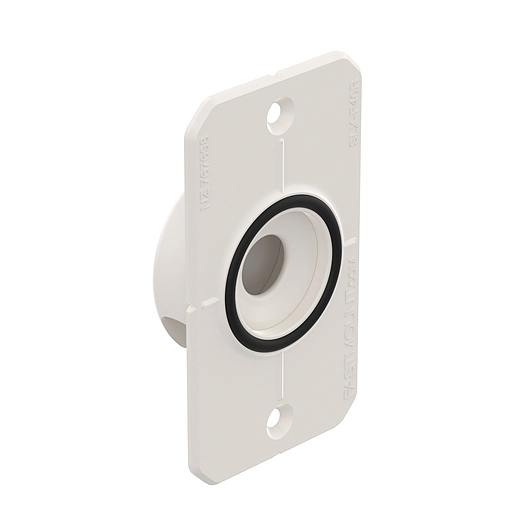

SLX-F40R Female Clip for Plasterboard SLX-F40R-FR Fire Rated Female Clip for Plasterboard

Female flush mount clip with screw fit installation, designed for plasterboard.

  • Fits into a ø40mm (1.57″) hole, and is secured with 2 x #6 screws into the stud behind, or with 2 x metal hollow wall anchors when installed in drywall if the stud is missed.
  • Clip is 12mm (1/2”) deep to fit into current market substrates with up to 6mm (1/4″) of adjustability.
  • Also available in fire rated version.
  • Compatible with SLX-M5, SLX-M10 and SLX-M18.
  • No special tools required for installation

Fire-rated female flush mount clip with screw fit installation, designed for plasterboard.

  • Fits into a ø40mm (1.57″) hole, and is secured with 2 x #6 screws into the stud behind, or with 2 x metal hollow wall anchors when installed in drywall if the stud is missed.
  • Clip is 12mm (1/2”) deep to fit into current market substrates with up to 6mm (1/4″) of adjustability.
  • Available in a fire-rated version.
  • Compatible with SLX-M18-FR. No special tools required for installation,
undefined
undefined

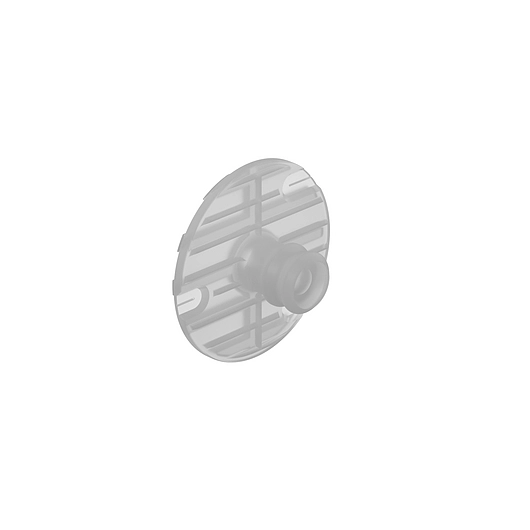

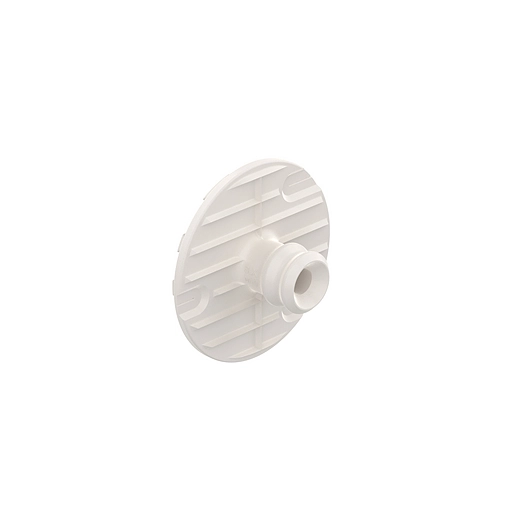

SLX-M5 Male Clip 5kg / 11lb SLX-M10 Male Clip 10kg / 22lb

Male clip with two-stage engagement for adjustable panel positioning and locking.

  • Fixes to panel with either 1 x #6 or #8 screw or 3 x #6 screws; or adhesive fix with a 2-part epoxy adhesive.
  • Mounts into SLX-F40T, SLX-F40R, and SLX-F1.5R
  • 5kg /11lb pull-out load.
  • No special tools required for installation.

Male clip with two-stage engagement for adjustable panel positioning and locking.

  • Fixes to panel with either 1 x #6 or #8 screw or 3 x #6 screws; or adhesive fix with a 2-part epoxy adhesive.
  • Mounts into SLX-F40T, SLX-F40R, and SLX-F1.5R
  • 10kg /22lb pull-out load.
  • No special tools required for installation.
undefined
undefined

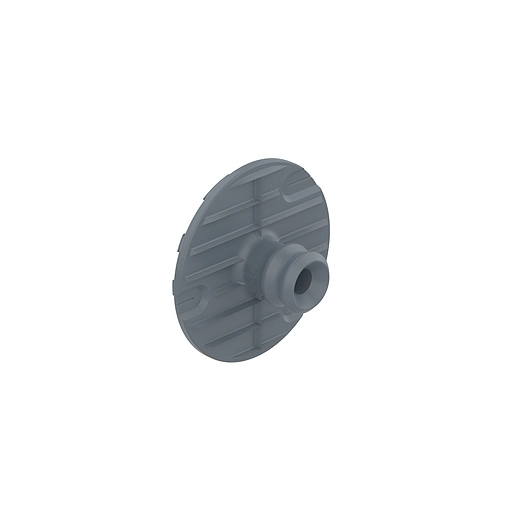

SLX-M18 Male Clip 18kg / 40lb SLX-M18-FR Fire Rated Male Clip 18kg / 40lb

Male clip with two-stage engagement for adjustable panel positioning and locking.

  • Fixes to panel with either 1 x #6 or #8 screw or 3 x #6 screws; or adhesive fix with a 2-part epoxy adhesive.
  • Mounts into SLX-F40T, SLX-F40R and SLX-F1.5R.
  • 18kg / 40lb pull-out load.
  • No special tools required for installation.

Fire-rated male clip with two-stage engagement for adjustable panel positioning and locking.

  • Fixes to panel with either 1 x #6 or #8 screw or 3 x #6 screws; or adhesive fix with a 2-part epoxy adhesive.
  • Mounts into SLX-F40T, SLX-F40R and SLX-F1.5R
  • 18kg / 40lb pull-out load.
  • No special tools required for installation.
