Tejas Borja is a worldwide leader in the production and distribution of ceramic roof tiles. Sourcing clay from Mediterranean quarries for over five decades, their products combine tradition, research and leading design for seamless integration into contemporary projects with cutting-edge technology.

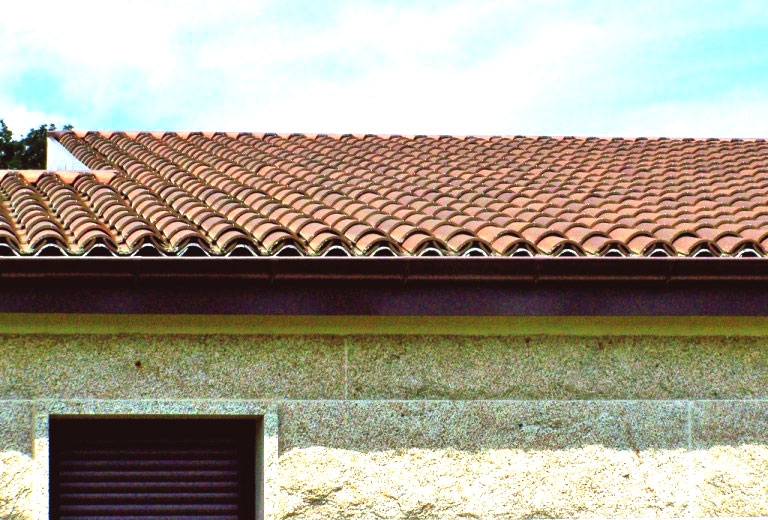

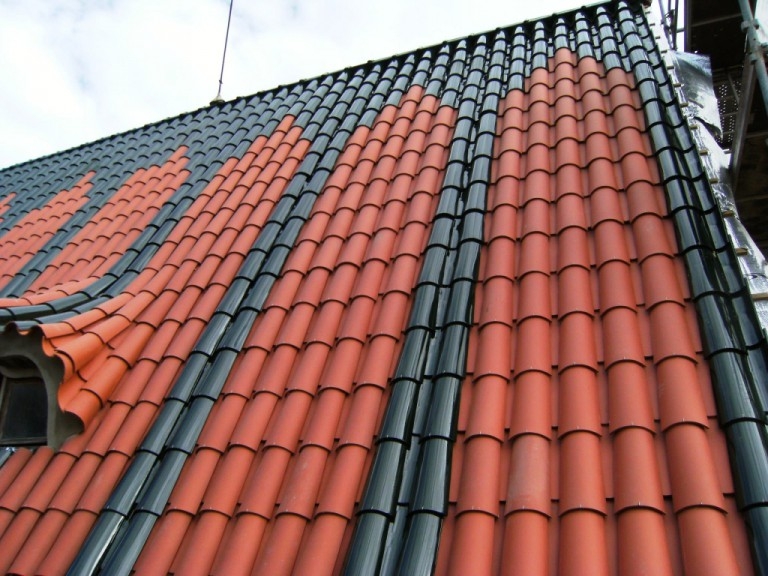

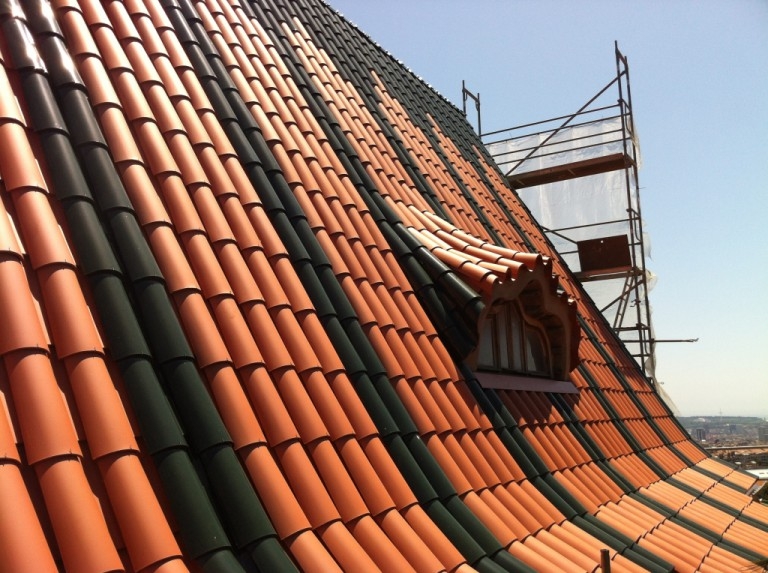

A classic material for sloping roofs, curved roof tiles by Tejas Borja are produced via an extrusion process, available in a range of sizes that lets them adapt to any construction purposes. The same pieces are used to create pans, covers, and joints of the tile. Their design allows for different levels of overlap between roof tiles.

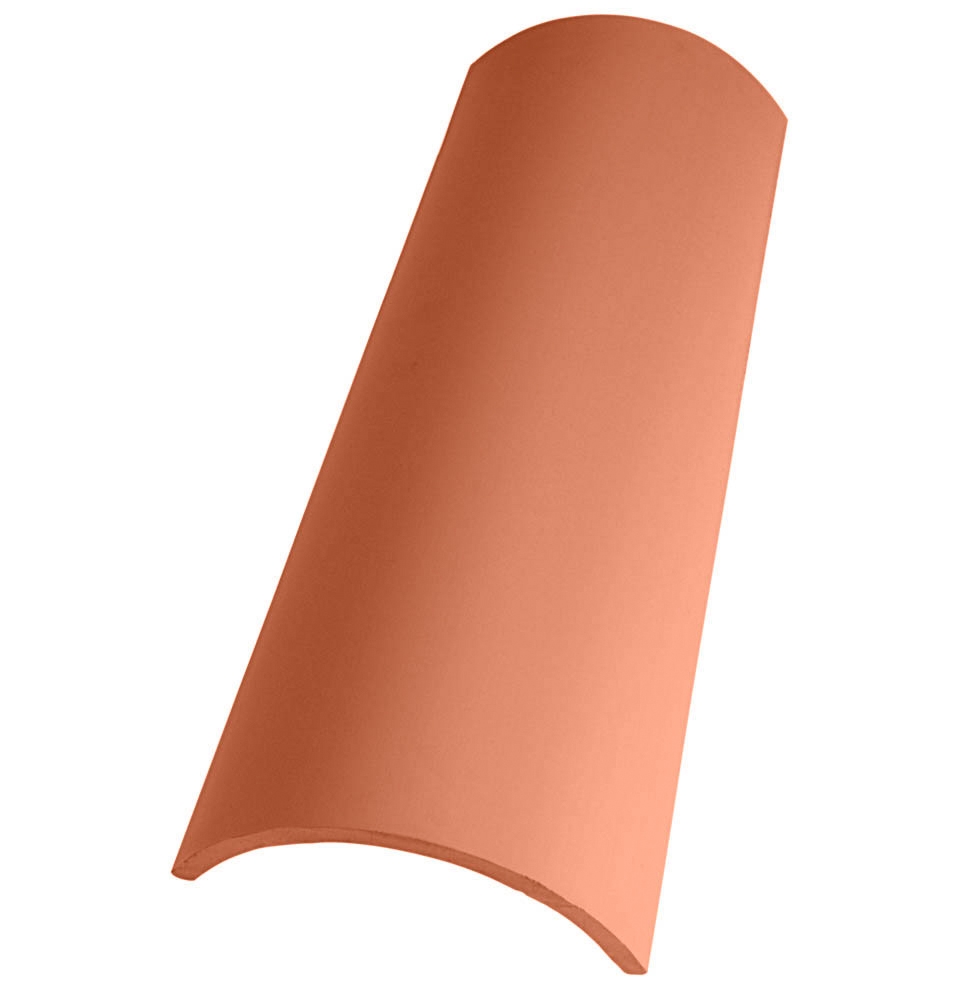

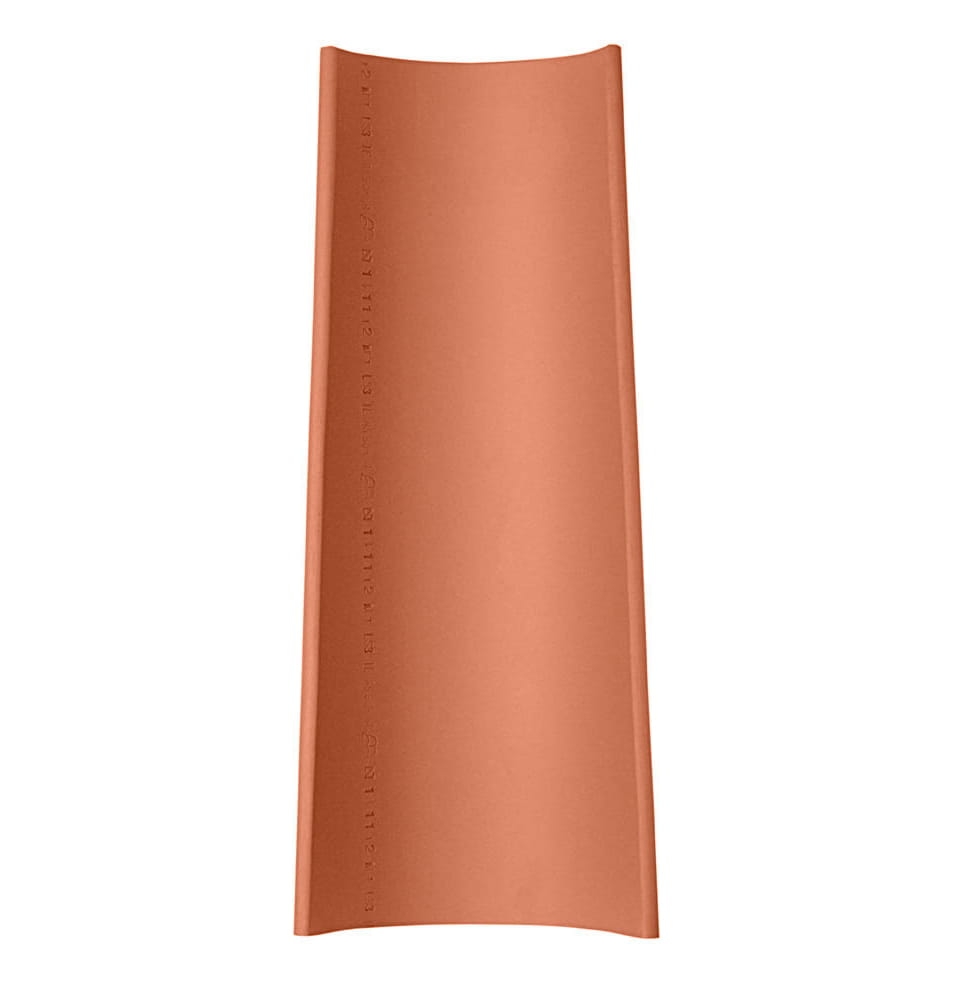

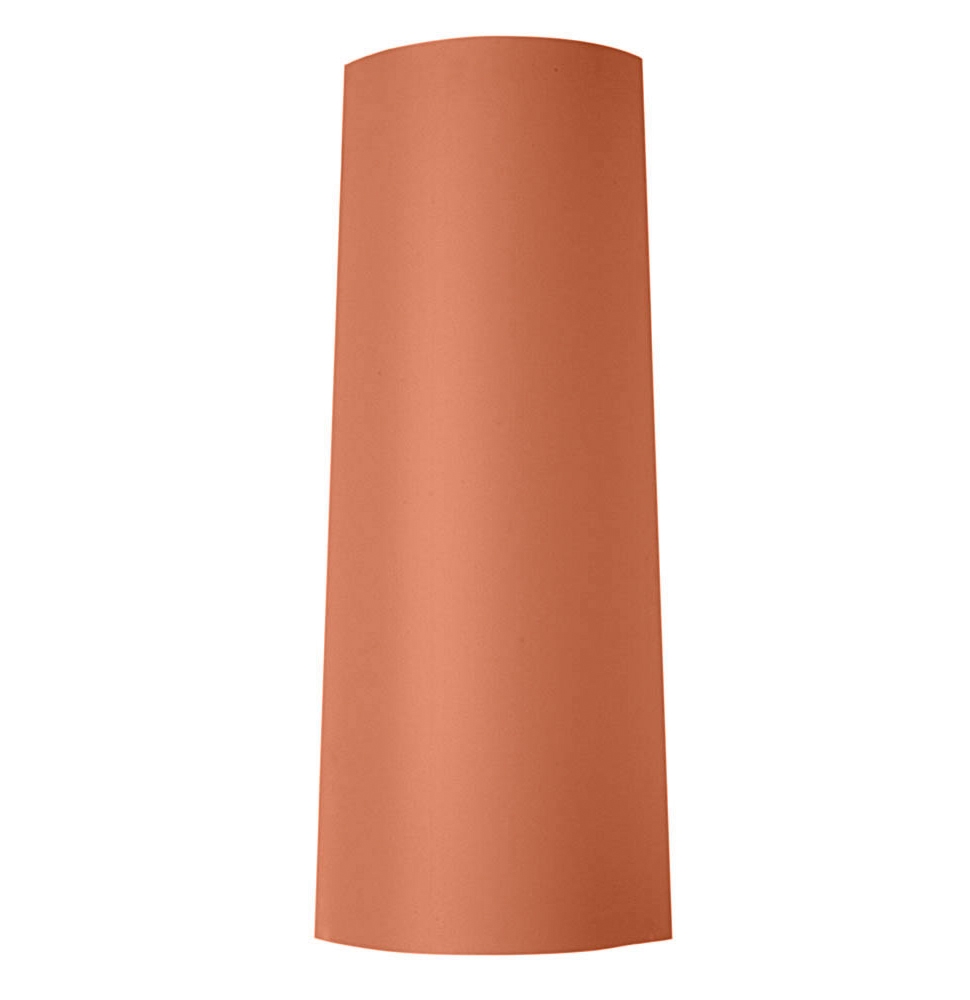

C-50x21 Celler®

Curved roof tile with smooth curvature profile of 50 cm in length and 21 cm wide, which forms a gutter profile roof; its design allows different overlap measures between the parts. The edges tend to be convergent, resulting in a wide end and another narrow end to facilitate the assembly of pans and covers with the same format.

To ensure their optimal installation, C-50.21 Celler® roof tiles should be installed using the Step 50/45 as a pan and should be fixed to a support previously prepared with a double batten layout. Curved roof tiles can also be dry installed on an under-tile Corrugated bitumen sheet or Fiber cement sheets.

	Length	500 mm
	Width	210 mm / 170 mm
	Weight	2,40 Kg/roof tile
	Units / m2	18 roof tiles

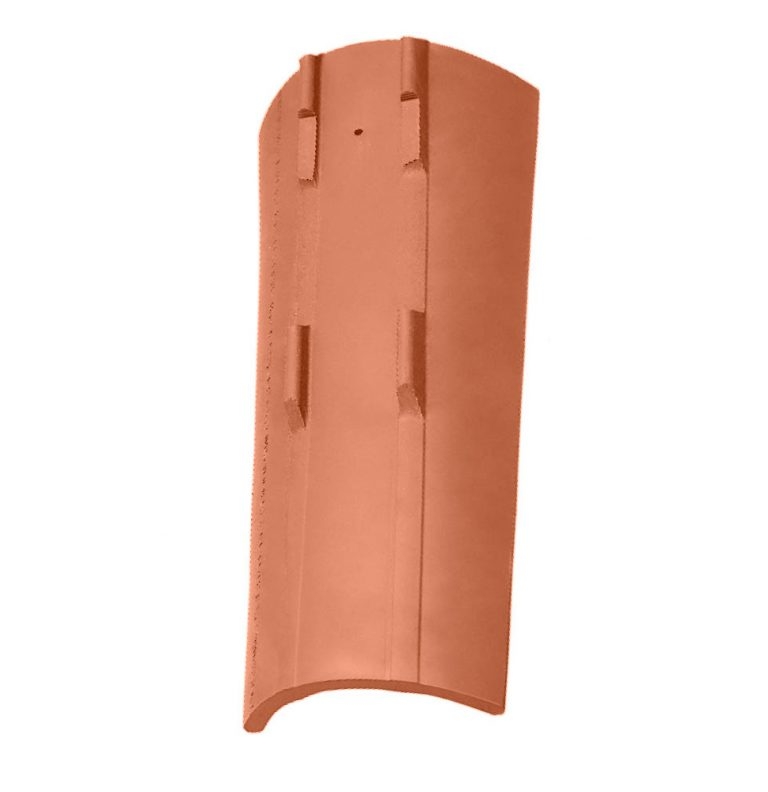

STEP 50/45

Step 50/45 roof tile with nibs on its underside, is placed in the pan position, essential for the proper drainage of water in the C-50.21 Celler® and C-45.20 curved roof tiles roofs by dry-installed on battens or continued support. It also is equipped with a hole to secure nail or screw through the batten.

To ensure their optimal installation, big format of curved roof tile (C-50.21 Celler® and C-45.20) should be installed using the STEP 50/45 as a pan and should be fixed to a support previously prepared with a double batten layout.

	Length	500 mm
	Width	205 mm / 165 mm
	Weight	2,50 Kg/ut.
	Units / m2	10 roof tiles (+ 10 Celler® 50x21 roof tiles)

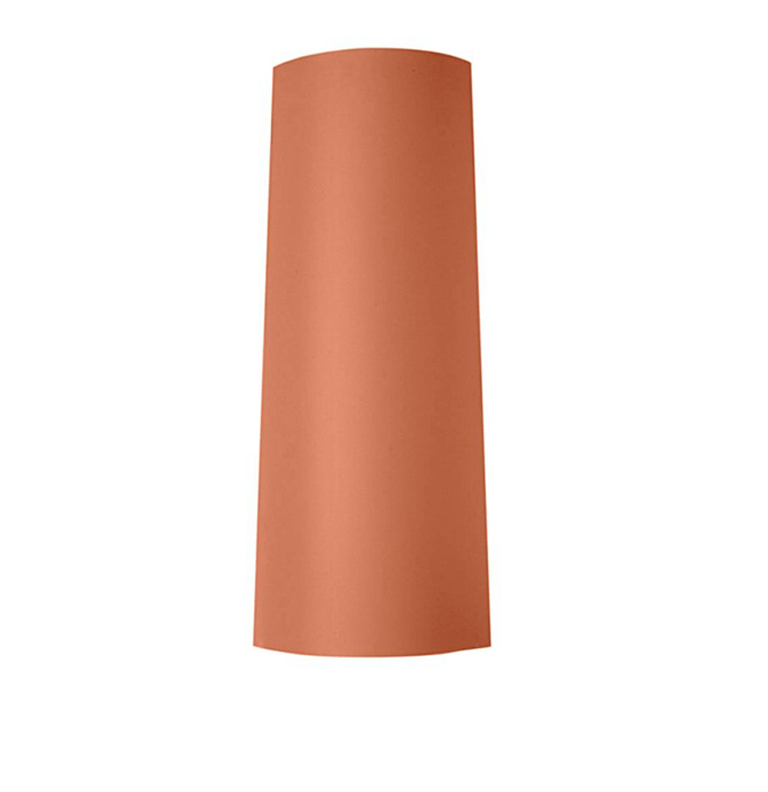

C-45.20

Curved roof tile with smooth curvature profile of 45 cm. in length and 20 cm. wide, which forms a gutter profile roof, its design allows different overlap measures between the parts. The edges tend to be convergent, resulting a wide end and another narrow to facilitate the assembly of pans and covers with the same format.

	Length	45 cm.
	Width	20 cm. (max.) / 16 cm (min.)
	Weight	1,95 Kg./ ut.
	Units / m2	25 roof tiles

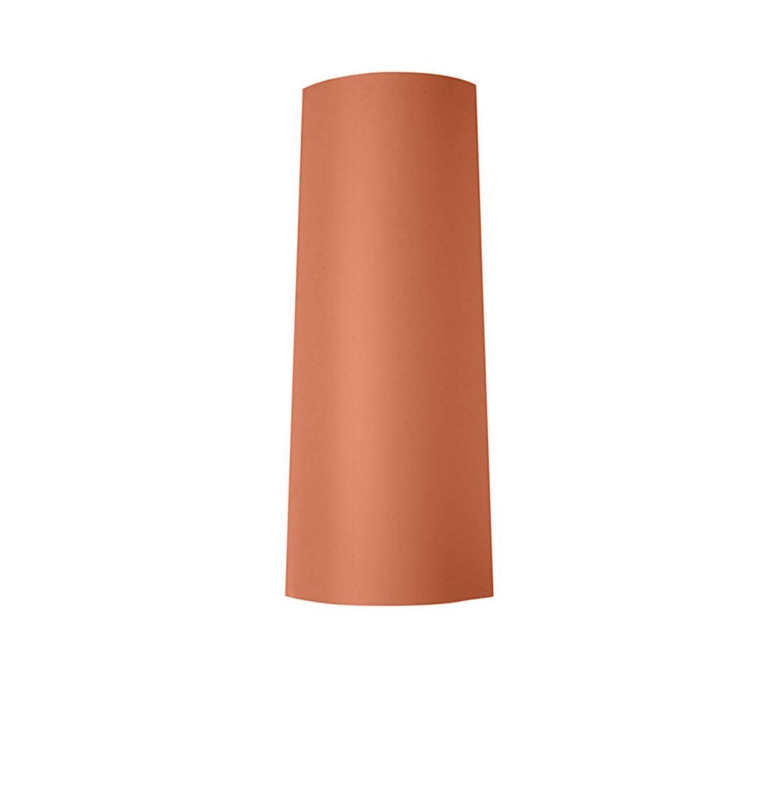

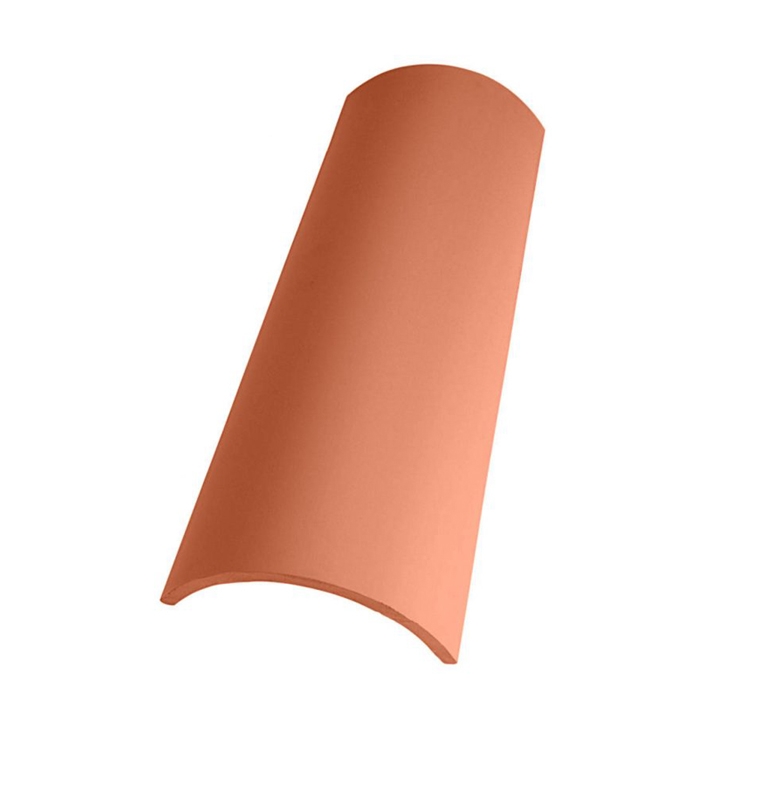

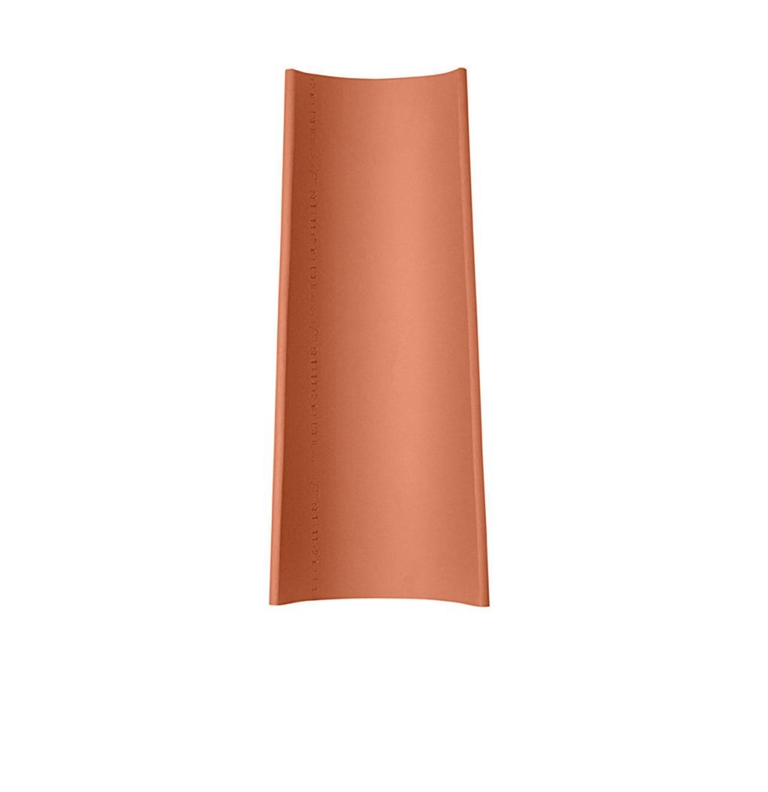

C-40.19

Curved roof tile with smooth curvature profile of 40 cm in length and 19 cm wide, which forms a gutter profile roof; its design allows different overlap measures between the parts. The edges tend to be convergent, resulting in a wide end and another narrow end to facilitate the assembly of pans and covers with the same format.

The curved roof tile C-40.19 is also available in BorjaBLANC (selection of special white clay). Ideal for the Mediterranean climate.

	Length	40.8 cm.
	Width	18.0 cm (max.) / 14.0 (min.)
	Weight	1,6 Kg./ut.
	Units / m2	30 roof tiles

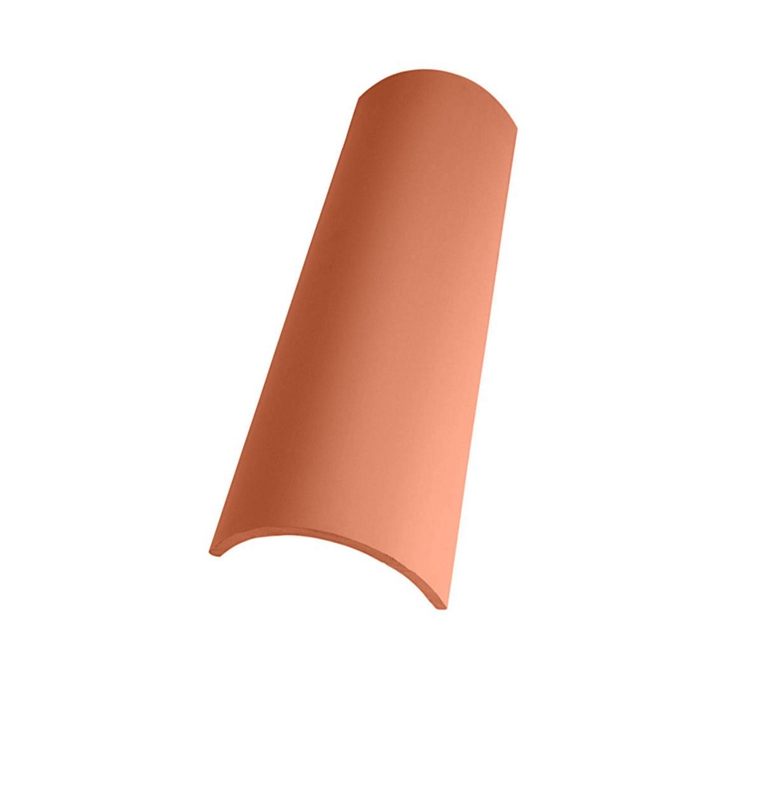

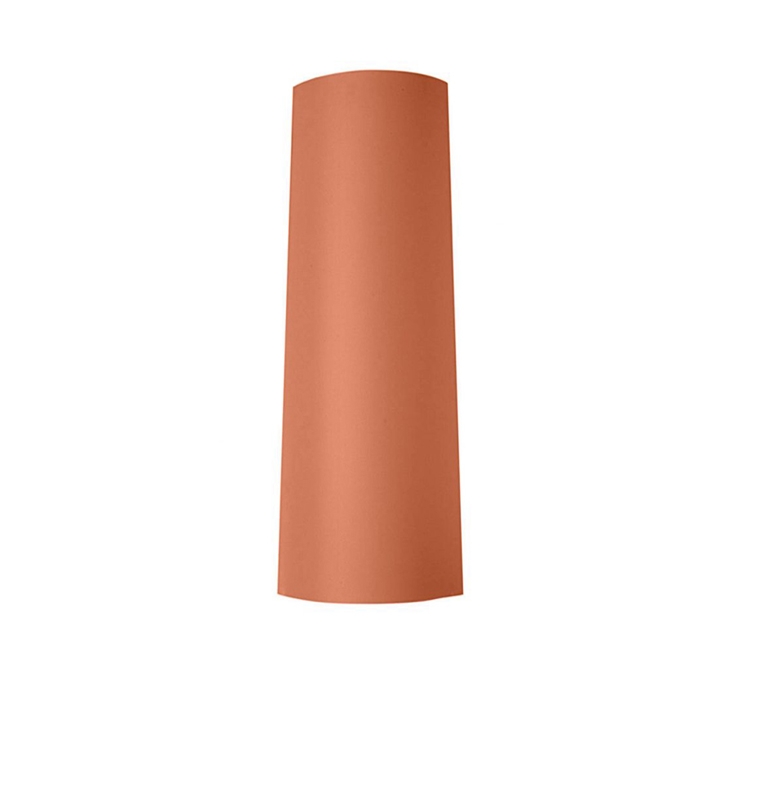

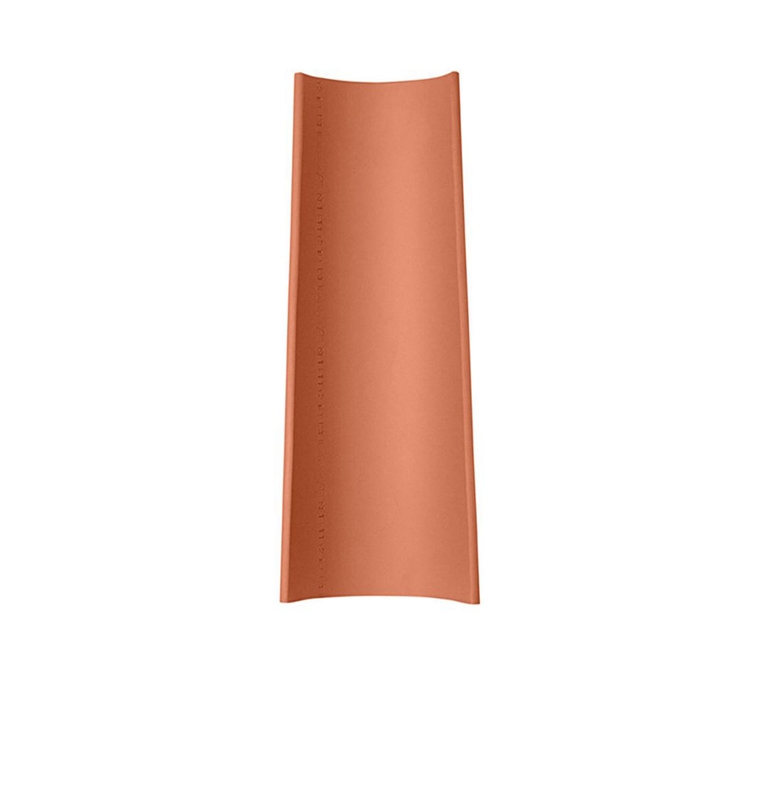

C-40.15

Curved roof tile with smooth curvature profile of 40 cm in length and 15 cm wide, which forms a gutter profile roof; its design allows different overlap measures between the parts. The edges tend to be convergent, resulting in a wide end and another narrow end to facilitate the assembly of pans and covers with the same format.

	Length	40.8 cm.
	Width	15.0 cm. (max.) / 11.6 cm. (min.)
	Weight	1,35 kg / roof tile
	Units / m2	33 units

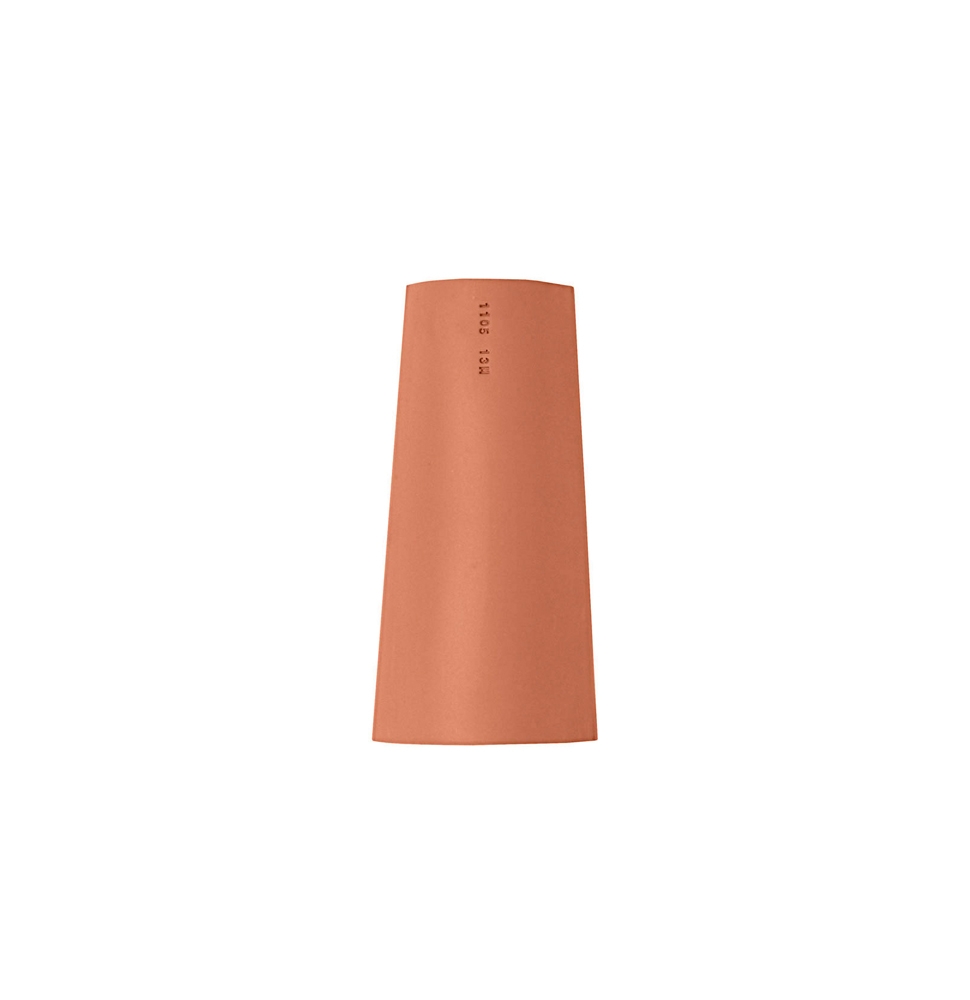

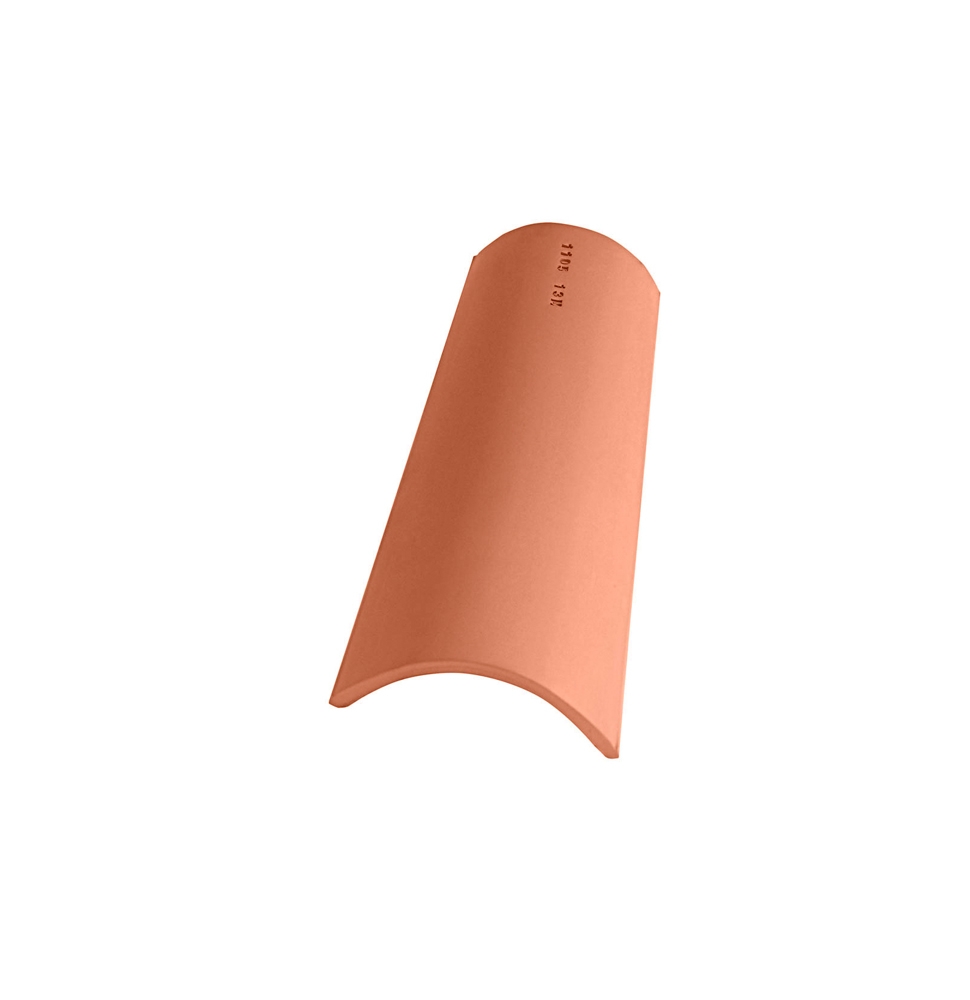

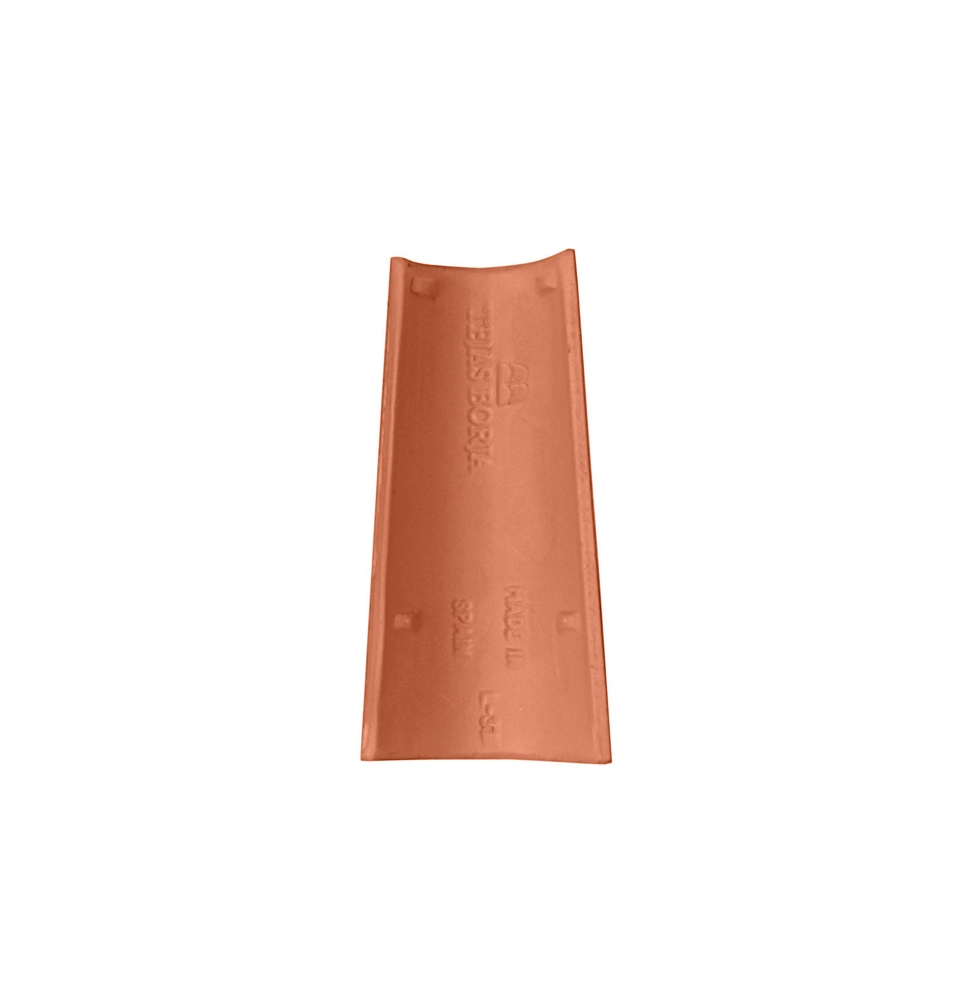

C-25.12

C-25.12 is a decorative curved roof tile, ideal for use in small areas. C-25.12 curved roof tile profile with a unique design that allows an accurate overlap of the roof tiles together, thanks to stoppers on the pan. These elements, due to their small size, are used to cover, decorate, and finish different parts of façades, roofs, and other building elements.

	Length	25 cm
	Width	12 cm. (max.) / 9.5 cm (min.)
	Weight	0,65 Kg./ut.
	Units / m2	70 roof tiles
