Tejas Borja is a worldwide leader in the production and distribution of ceramic roof tiles. Sourcing clay from Mediterranean quarries for over five decades, their products combine tradition, research and leading design for seamless integration into contemporary projects with cutting-edge technology.
The solar solutions by Tejas Borja achieve electricity bill savings and cut electricity bills while helping to reduce our carbon footprint by providing an alternative, environmentally-friendly way to generate electricity.
 |
The photovoltaic panel is perfectly integrated into the tile, this being the best way to achieve a roof that captures clean energy without affecting its aesthetic appearance, preserving the line and the usual thickness of the covering. This perfect integration is completed with the installation of the roof or facade using FLAT-5XL tiles and other ceramic accessories.
The choice of material for the roof tiles is crucial to guarantee the durability, protection, and energy efficiency of the property, and nor should the importance of the roof's aesthetic appearance be overlooked.
The products in the SOLAR range and ceramic tiles by Tejas Borja must always be installed using dry installation systems. Using standard international connections guarantees an optimal level of security, being hidden from the naked eye. In this way, the maximum tightness and durability of the roof are achieved.

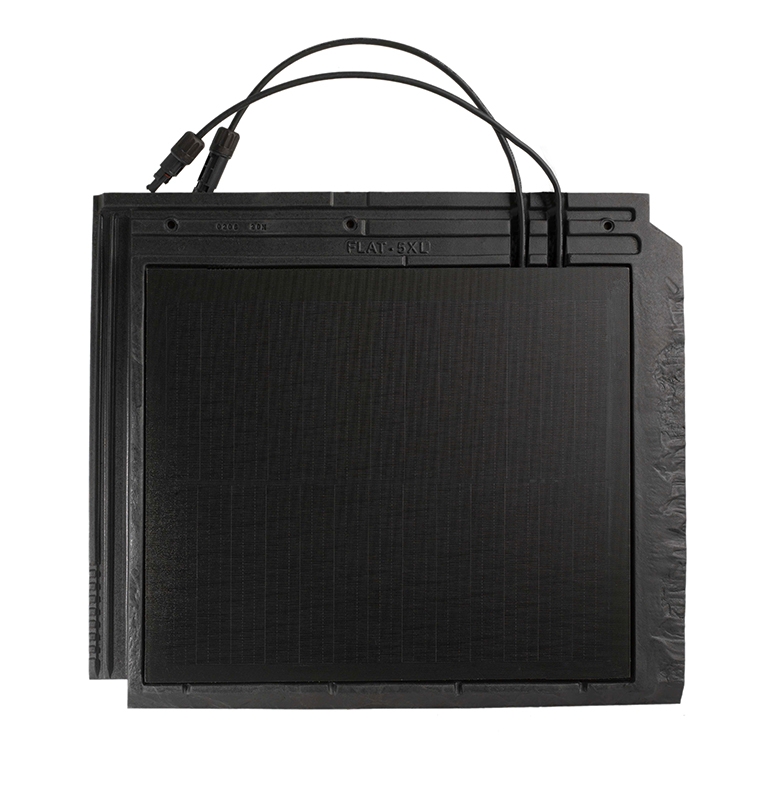

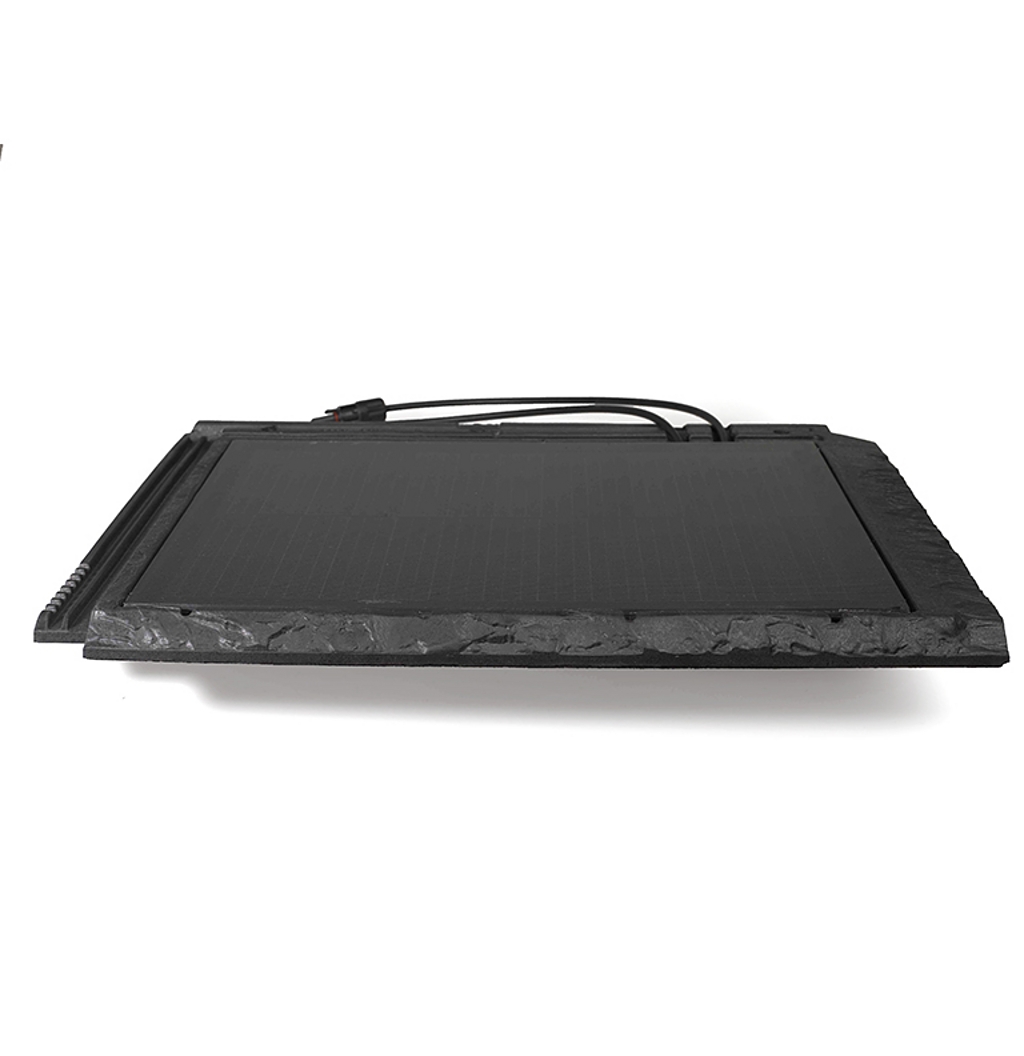

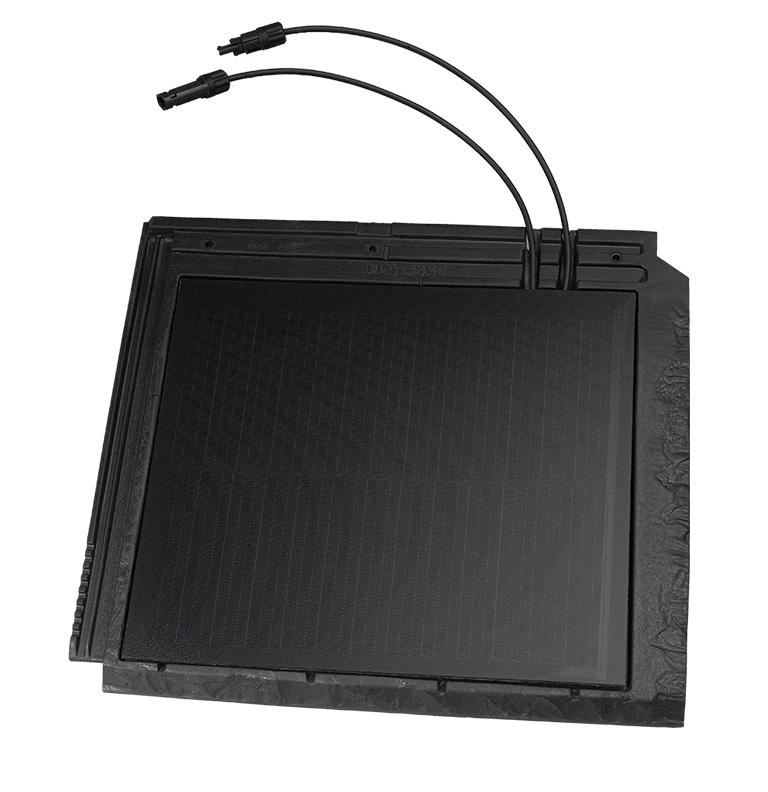

SOLAR FLAT-5XL ceramic roof tile
The SOLAR Flat-5XL ceramic roof tiles has an entirely black (FULL-BLACK), anti-reflective finish, with none of the typically visible connections.
SOLAR FLAT-5XL ceramic roof tiles are the only large ceramic tiles with an integrated solar energy system. They are ideal for providing a reliable supply of solar energy. Thanks to the integration of the solar panel into the tile, the tiles provide all the benefits of a roof made from ceramic tiles in terms of watertightness, without any risk of deterioration or oxidation. The perfect integration is completed with the installation of the roof or facade using FLAT-5XL tiles and other ceramic accessories.
The SOLAR FLAT-5XL ceramic roof tile comes in Monocrystalline version and adapts to each project’s energy generation needs and available space.
| SOLAR FLAT 5XL, Ceramic Roof Tile, Monocrystalline | SOLAR FLAT 5XL, Ceramic Roof Tile, CIGS | |
 |  | |
| Dimensions | 457 x 510 (mm) | 457 x 510 (mm) |
| Weight | 7.50 Kg. | 7.50 Kg. |
| Color | Leon MATTE / Cristal Full Black | Leon MATTE / Cristal Full Black |
| Cell Type | Monocrystalline | CIGS (Cadmium and Lead free products) |
| Solar Module Size | 410 x 360 mm (385 x 315 mm active zone) | 410 x 360 mm (380 x 300 mm active zone) |
| Units/m2 | 5,85- 5,50 Units | 5,85- 5,50 Units |
| Power/m2 | 143.26 Wp/m2 | 102 Wp/m2 |
| Units/kWp | 41,32 Units | 58,82 Units |
| Nominal Power (Pmax) | 23Wp | 17Wp |

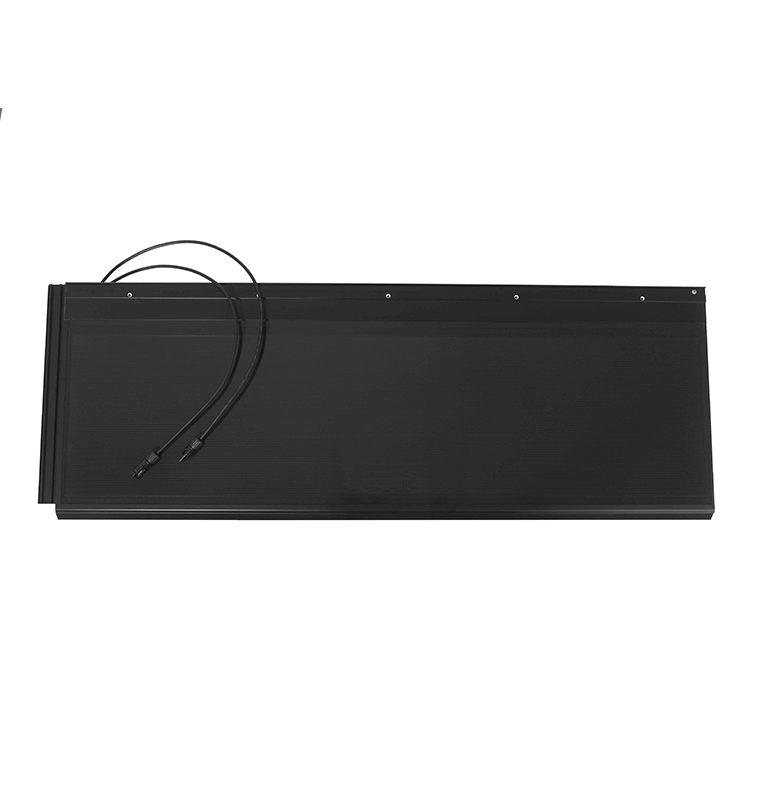

SOLAR FLAT-10
The SOLAR FLAT-10 tile integrates perfectly into the roof, maintaining the same aesthetic appearance as a ceramic tile, preserving the line and usual thickness of the covering layer as thin as the tile itself. The SOLAR Flat-10 roof tile is designed to blend seamlessly into the roof. Thanks to its integration, it confers all the benefits of capturing renewable photovoltaic solar energy as well as presenting excellent reliability in terms of watertightness throughout the roof.
The sealed photovoltaic panel with tempered glass on both sides (GLASS-GLASS), the large surface of the tile and new CIGS (thin film) technology, which is free of cadmium and lead, mean that the Solar Flat-10 tile complies with all the requirements for it to be installed in any sustainable, self-consumption project. Solar FLAT-10 roof tiles have a uniform, anti-reflective black finish, without any of the typically visible connections. They are manufactured on an aluminium frame with a FULL-BLACK finish being the equivalent of five Flat-10 ceramic roof tiles.
The solar roof tiles are connected in various strings and in parallel to increase the efficiency of the panels.
 | |
| Dimensions | 457 x 1 268 mm |
| Weight | 9,30 kg |
| Color | Black / -crystal FULL BLACK |
| Cell Type | CIGS (Cadmium an Lead free products) |
| Solar Module Size | 345 x 1215 mm (300 x 1200 mm active zone) |
| Power / m2 | 123 Wp/m2 |
| Units /m2 | 17.86 Units |
| Nominal Power (Pmax) | 56 Wp |
Durability and performance over time are reinforced by the structure of the product itself and the use of glass-glass panel (double tempered glass) that ensures a durable and watertight encapsulation.

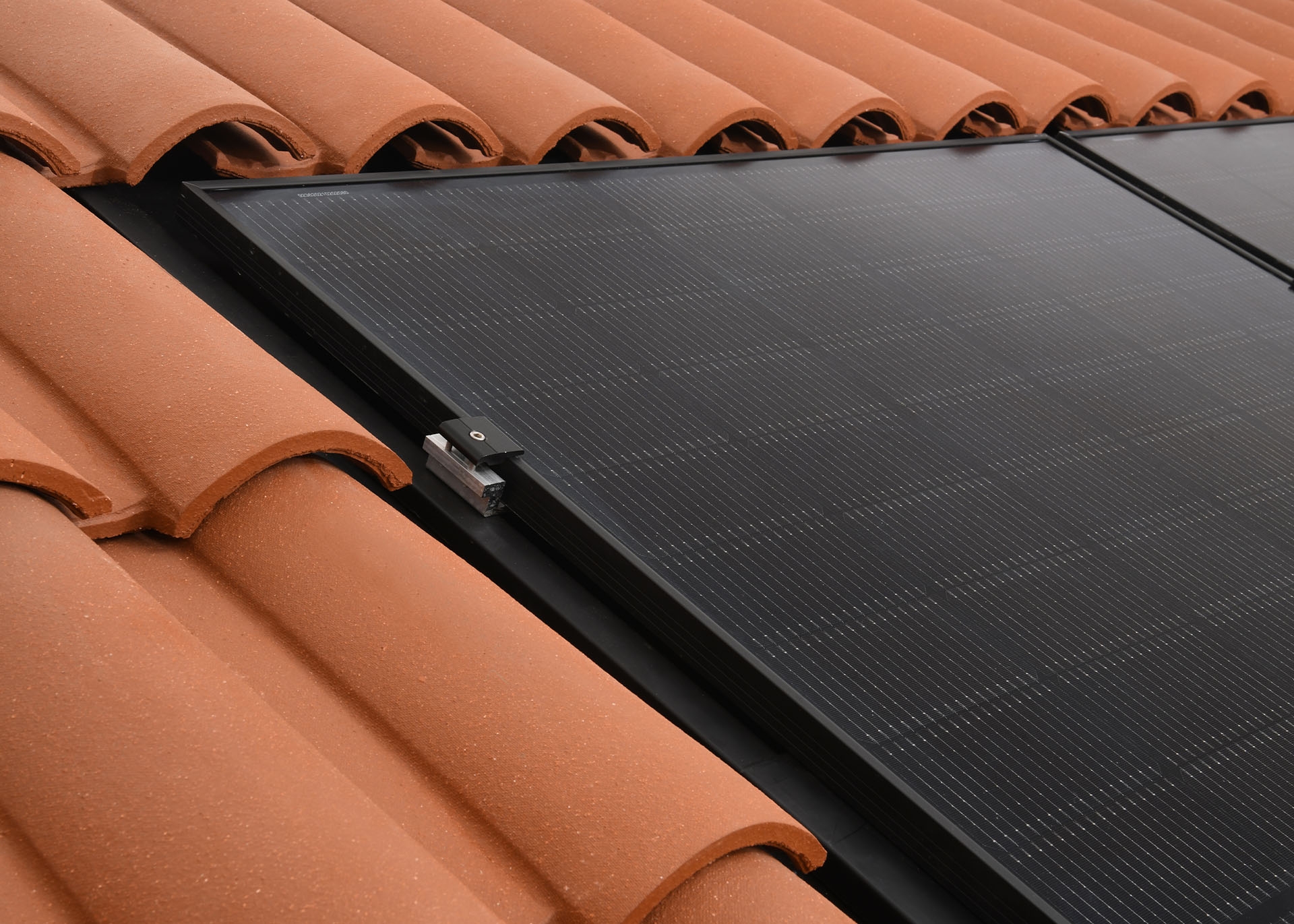

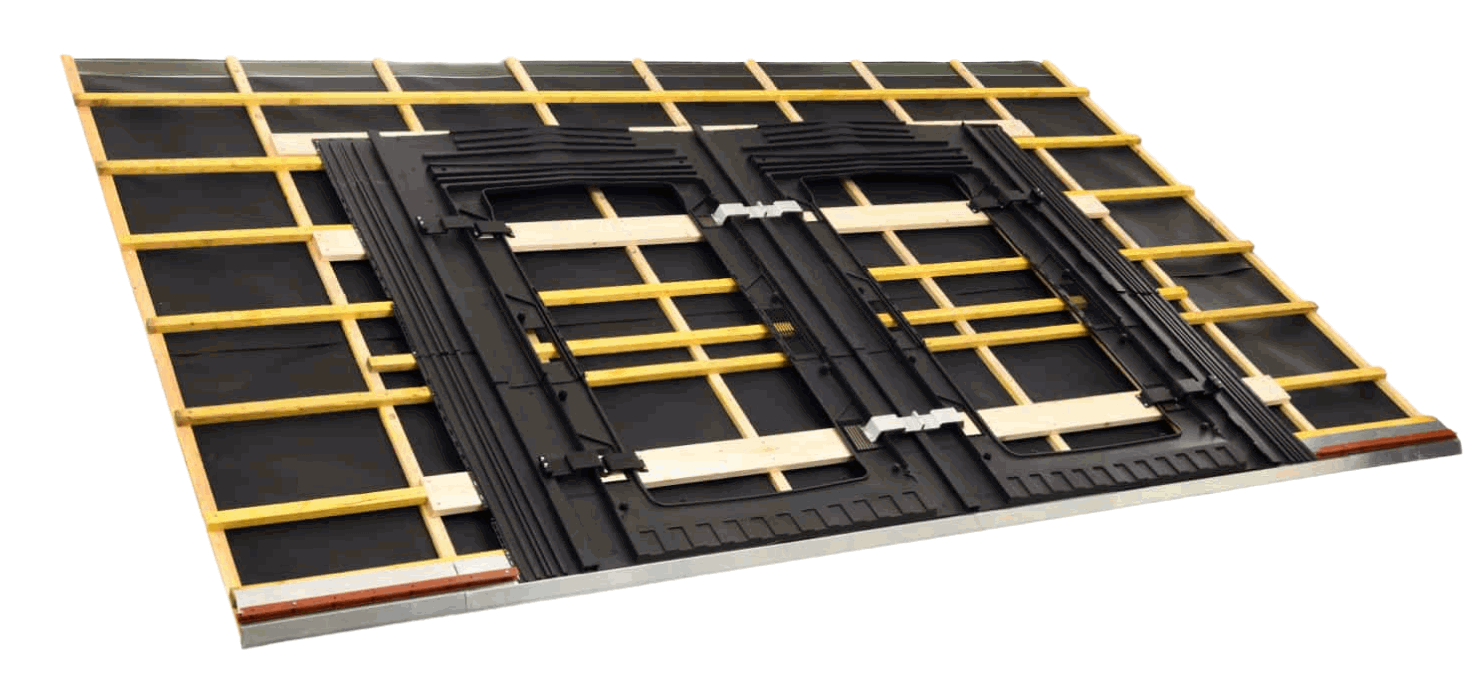

ERI SYSTEM
The EASY ROOF INTEGRATION (ERI) is a revolutionary installation system designed for the integration of photovoltaic panels on ventilated roofs. Its patented fastening process allows the different parts to fit together precisely, without the need for cuts or joints, adapting perfectly to a variety of roofs.
 |
It is a fixing system for integrating photovoltaic panels on pitched roofs with any type of ceramic roof tile. A safe and affordable solution for residential, commercial, public, agricultural, and industrial buildings. Compatible with most solar panels on the market (JINKO, AUO – BenQ, Canadian Solar, JA Solar, LG, REC, Solarwatt, Sunpower…).
As a seamless system, watertightness is ensured by the overlapping of parts. It is also UV, hail, rust, heat, snow, and wind resistant. It is most effective for roofs with a pitch of 10° to 50°. Panels from 1680 to 2000 mm long, with an estimated installation time of 6 hours for a 3 kW installation.
ERI has a patented concept separating the PV panel attachment from the waterproofing function, while air inlets and outlets under each module improve energy efficiency.
