NATURCLAD - W Wood Louvers in Capitol Vista Ankara | PARKLEX PRODEMA
  1. ArchDaily
  2. Products
  3. Louvers
  4. NATURCLAD - W Wood Louvers in Capitol Vista Ankara

NATURCLAD - W Wood Louvers in Capitol Vista Ankara | PARKLEX PRODEMA

Share
  • Use

    Wood louvers
  • Applications

    Facade, interior
  • Characteristics

    Operable, shading system, panels, sustainable
  • Colors

    Pale
  • Certification

    Honor Award For Design Excellence, 2018 By Boston Society Of Architects; 2018 International Architecture Awards Chicago Athenaeum And The European Centre For Architecture Art Design And Urban Studies; Architectural Design / Tall Buildings 2017 American Architecture Prize

Contact manufacturer

PARKLEX PRODEMA

More about this product

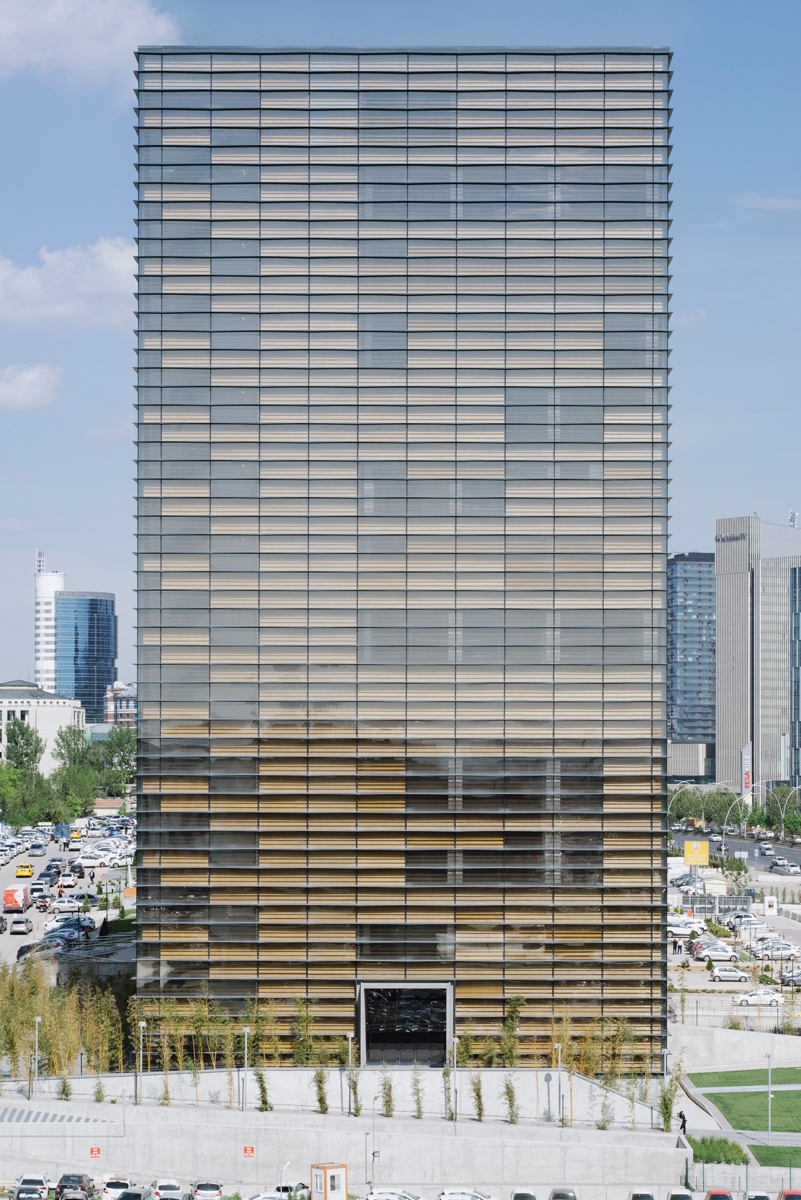

The Capitol Vista Ankara Office Tower is an office building in Turkey designed to situate local and international high technology companies interested in capitalizing on nearby educational and research institutes. The building was designed by Anmahian Winton Architects with significant consideration of the rapidly developing Eskeşehir Highway area, west of Ankara's city center. In response to its site, the building takes on a simple geometric form with a focus on an intricate curtain wall and PARKLEX PRODEMA's wooden louver shading system.

Design Concept

Anmahian Winton Architects were inspired by the surrounding context of Ankara in their design of the Capitol Vista office tower. At one edge, the building borders an emerging residential neighborhood, while it is flanked on the opposite side by a transportation hub for highways, public transport, and pedestrians. Thus, the tower is set back from the highway to allow space for an occupiable urban garden.

Wood Louver System | ProdEx

The building has fourteen concrete framed levels clad with a high-performance curtain wall and four levels of underground parking. Anmahian Winton Architects incorporated high ceilings to create generous open spaces filled with natural light and provide an overall comfortable work environment. With a modern glass volume and wood material palette, the project is distinguished from its surroundings.

NATURCLAD - W Exterior Wood Cladding

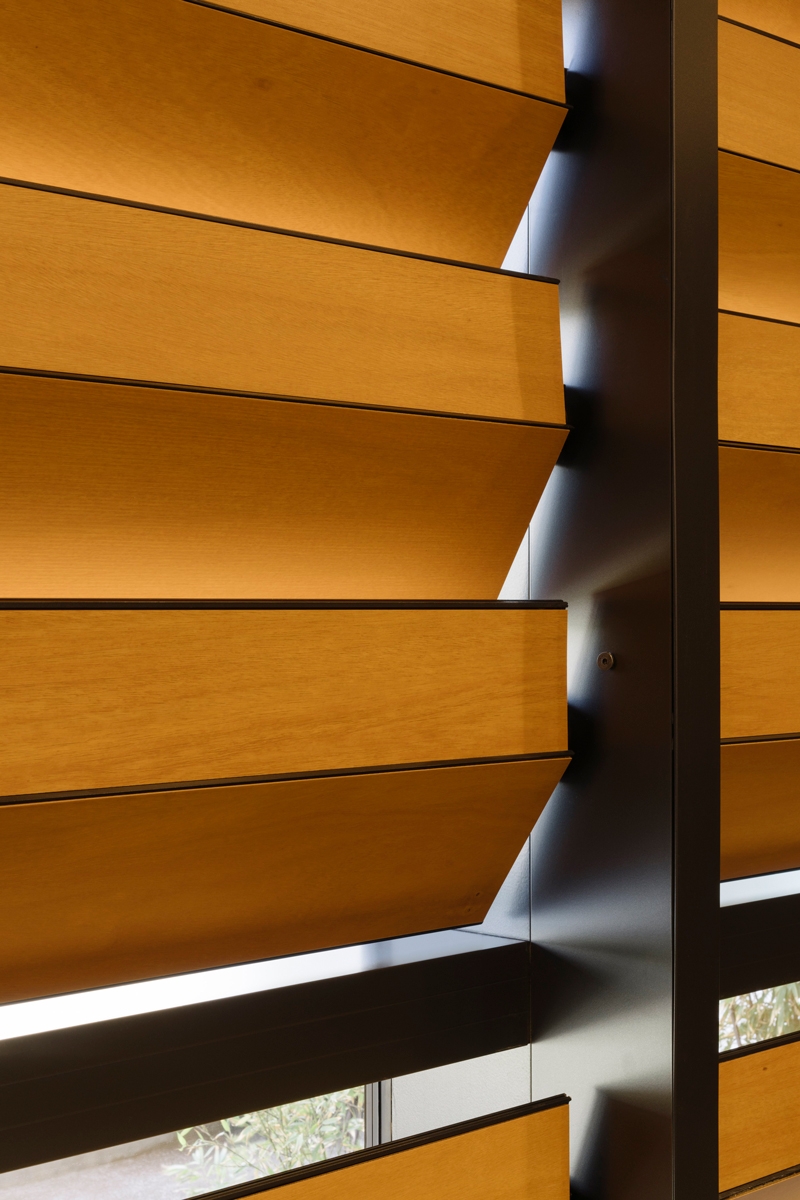

For the facade, Anmahian Winton Architects focused on increasing passive environmental strategies while maintaining a contemporary aesthetic. In collaboration with PARKLEX PRODEMA, a system of operable wood louvers is used on the interior to give occupants customizable natural lighting. To complement this, deep horizontal mullions on the exterior control solar gain.

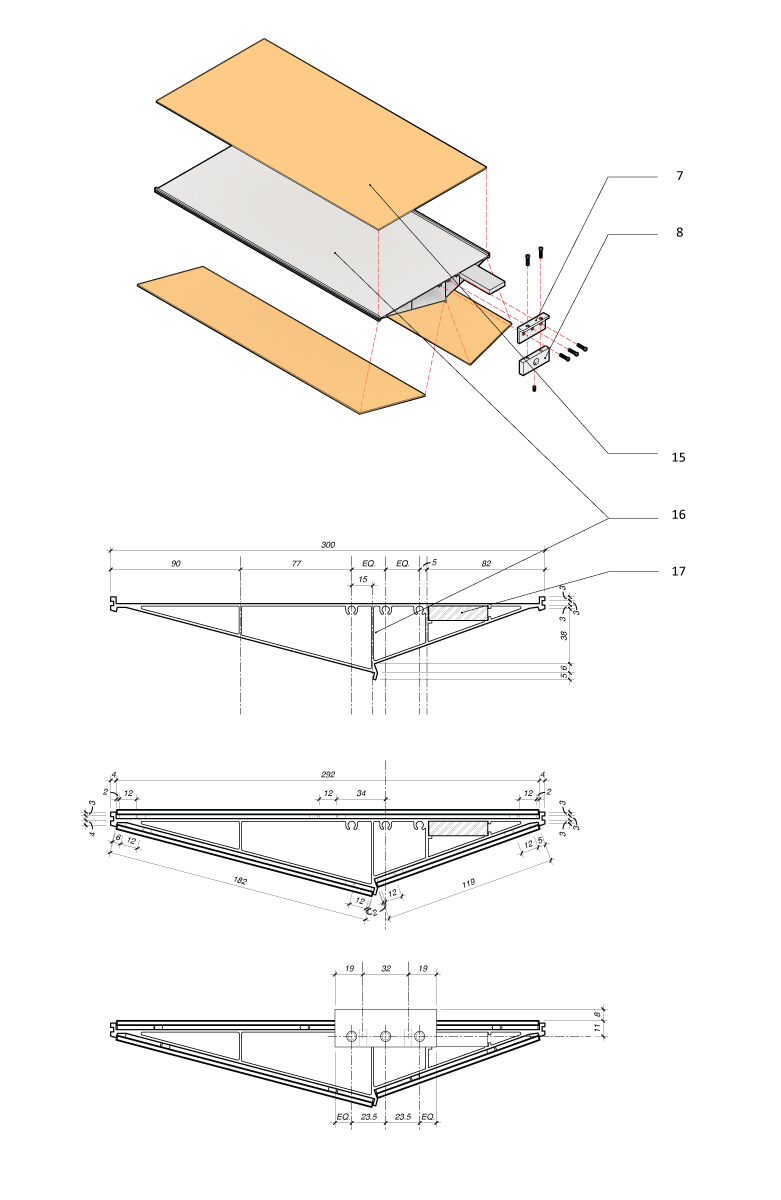

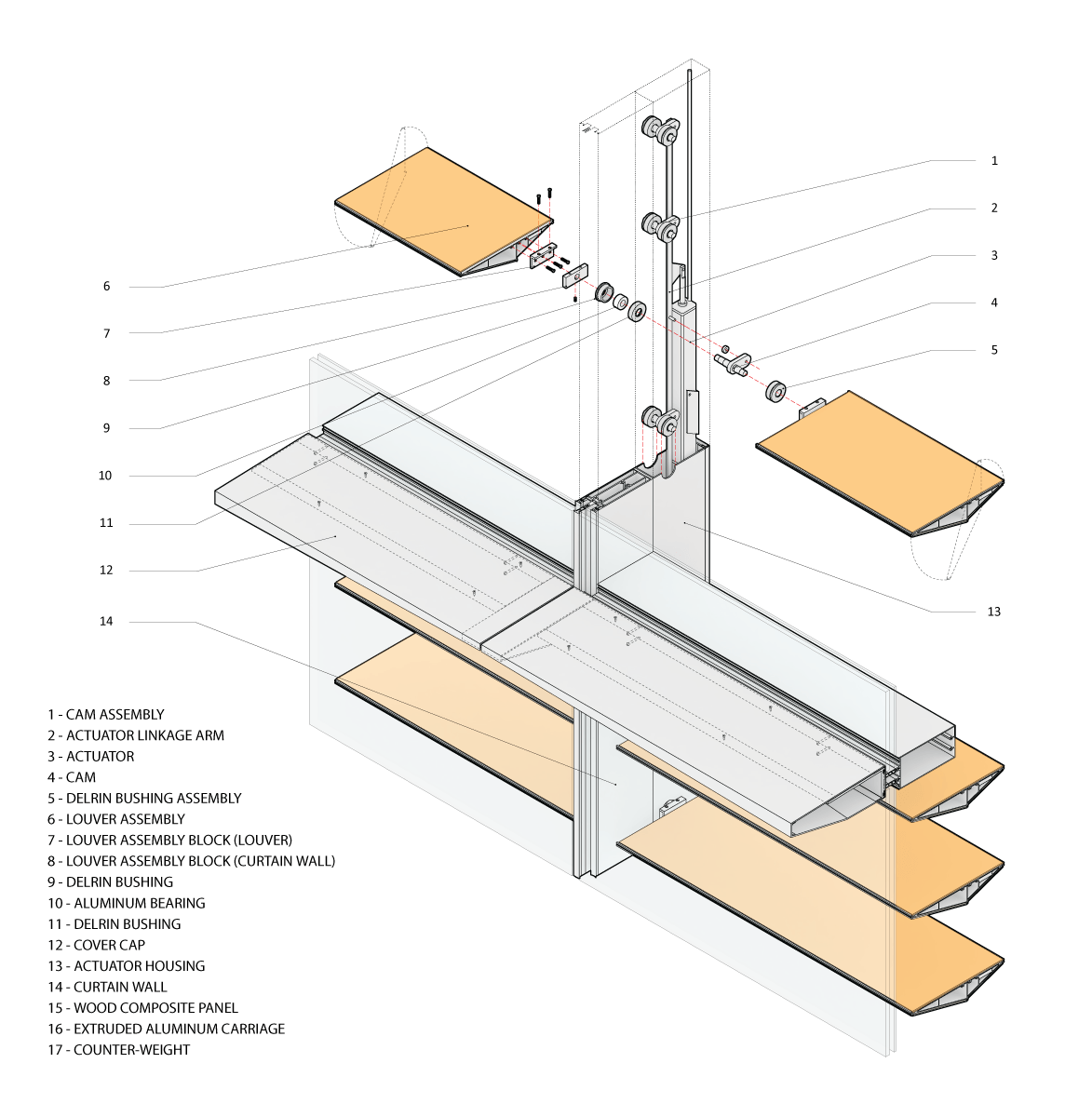

Wood Louver Assembly | ProdEx

NATURCLAD - W wood louvers are made with PEFC certified wood which increases the sustainability of the building. The Capitol Vista tower benefits from customized NATURCLAD - W panels which create an extensive network of louvers and ensure adjustable interior lighting, while also acting as striking design elements.

Wood Louver System | ProdEx

Project Details

Location Ankara, Turkey
Architect Anmahian Winton Architects
Area 250,000 m2
Year 2016
Project Type Offices
Photography Florian Holzherr
Product Used PARKLEX PRODEMA NATURCLAD - W wood louver panels
Wood Tone Pale
