Trough Sink - Monolith C Series | The Splash Lab

  • Available in

  • Use

    Trough sink
  • Applications

    Commercial
  • Characteristics

    Wall-mounted fixtures, hygienic, solid surface sink, durable, versatile, modular, eco-friendly, clean aesthetic, easy specification, simple-installation, 'one trade' installation, hand-crafted, made in the USA
  • Certification

    IRC 2009, 2012, 2015,2018; UPC 2009, 2102, 2015, 2018, 2021; NPC 2005, 2010. 2015; CSA B45.5 / IAPMO Z124-2107; ADA; LEED

4 BIM Objects

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
The Splash Lab Logo

Contact manufacturer

The Splash Lab

The Splash Lab Logo

Contact manufacturer

The Splash Lab

More from The Splash Lab

Website Phone

More about this product

The Monolith Type C is a modular solid surface trough sink from The Splash Lab that has been designed for use with wall-mounted fixtures. It has a two-inch back deck which allows secure mounting while ensuring ample clearance for soap and water dispensing. The minimalist basin accommodates from one to four user stations within the integrated enclosure. The angled basin leads to a discreet channel along the rear face and incorporates the drainage holes. Subtly rounded corners nuance the outer face of the sink. Optional pipe skirts are square and are available in stainless steel, black, or white powder coat. Optional side caps for pipe skirts can be specified where necessary. These sinks are designed for use with the Channel System and Radius Collection fixtures.

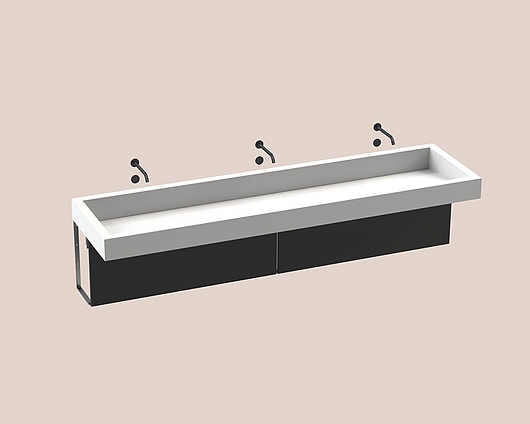

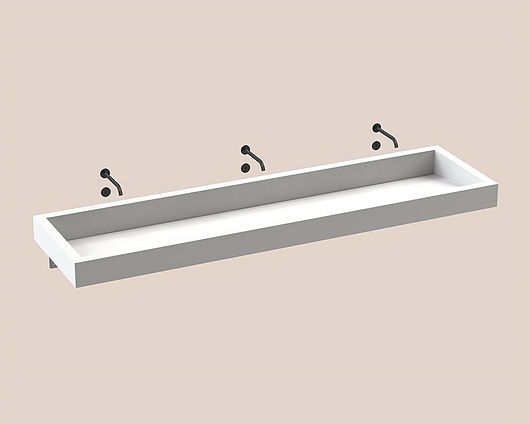

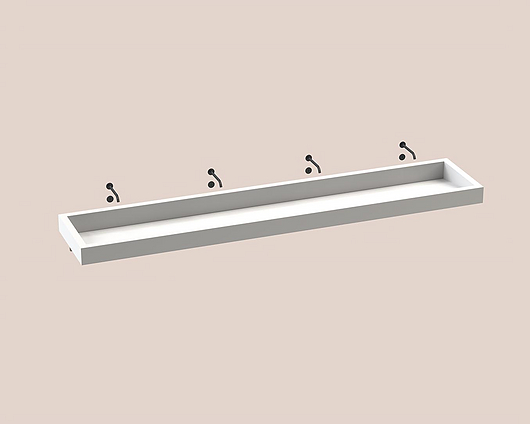

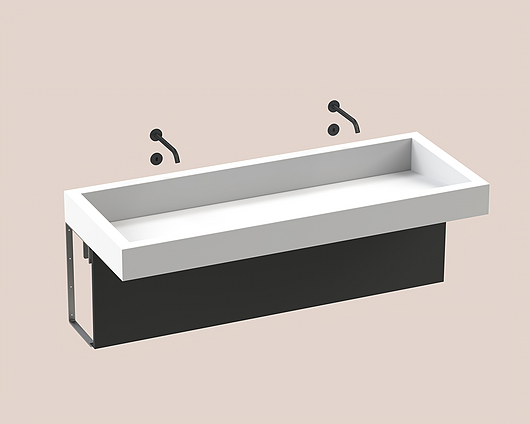

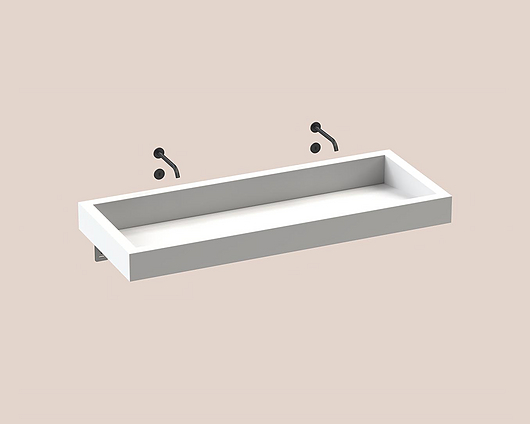

Without Pipeskirt With Pipeskirt
1 User
2 Users
3 Users
4 Users

Technical Data

  • Sink composition: 100% solid surface (acrylic/resin)
  • Bracket composition: Stainless Steel
  • Pipeskirt composition: Stainless steel
  • Pipeskirts: available in stainless steel, black, or white powder coat
  • Pipeskirt style: Square
  • Fabrication: Fabricated using CNC and hand-finishing in Los Angeles and British Columbia

Monolith System

Designed in conjunction with architects, Monolith offers total freedom of expression, within a system of modules that are pre-configured to meet building codes and offer an intuitive installation process. Manufactured in North America using CNC machines and hand-finishing techniques, Monolith is a competitive, contemporary design solution that captures the quality of old-world craftsmanship. Installed worldwide at such recognizable locations as The Staples Center and London’s Design Museum, Monolith is effortlessly minimal yet hard-wearing, and versatile enough for any restroom. The four series comprise a comprehensive line that complements any aesthetic, fixture type, and installation needs:

  • Monolith A Series: A trough sink for deck-mounted fixtures (1-4 users)
  • Monolith B Series: A divided sink with countertops for deck-mounted fixtures (1-4 users)
  • Monolith C Series: A trough sink for wall-mounted fixtures (1-4) users
  • Monolith D Series: A divided sink with countertops for wall-mounted fixtures (1-4 users)
