Divided Sink - Monolith B Series | The Splash Lab

Share
  • Use

    Divided sink
  • Applications

    Commercial, high-volume restrooms, restaurants
  • Characteristics

    Deck-mounted fixtures, hygienic, solid surface sink, durable, versatile, modular, eco-friendly, clean aesthetic, easy specification, simple-installation, 'one trade' installation, hand-crafted, made in the USA
  • Certification

    IRC 2009, 2012, 2015,2018; UPC 2009, 2102, 2015, 2018, 2021; NPC 2005, 2010. 2015; CSA B45.5 / IAPMO Z124-2107; ADA; LEED

More about this product

The Monolith Type B is a modular solid surface sink in Glacier White Corian™ from The Splash Lab that was developed for use with deck-mounted fixtures. It has a 6" back deck to accommodate most commercial faucets and soap dispensers. Accommodating from one to four users, each station is separated by a ten-inch divider, that offers hygienic spacing and counter space. The single-user sink has a 12" countertop to the right of the washbasin. Ideally suited for both high-volume restrooms or restaurant installations where surface area offers both personal spaces, and room to place belongings while washing up. Optional pipe skirts can be specified, with two designs (squared or angled) available in stainless steel, black, or white powder coat. Optional side caps for pipe skirts can be specified where necessary. These sinks are designed for use with Ribbon System fixtures.

1 Fitting 2 Fittings 3 Fittings

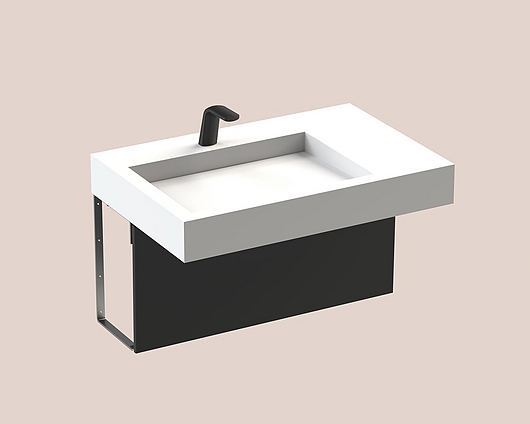

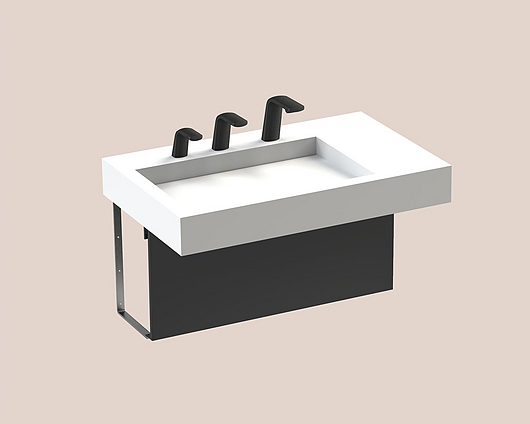

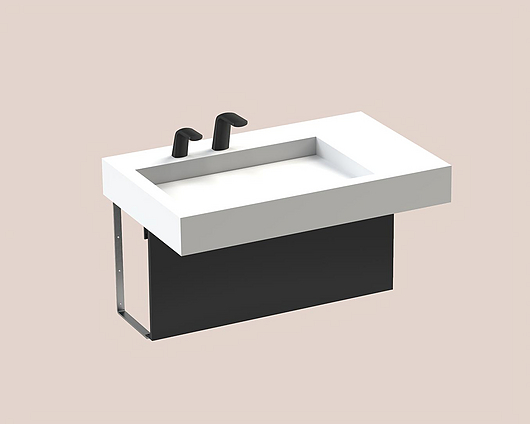

1 User The Splash Lab | Monolith B | 36 1 fitting - square The Splash Lab | Monolith B | 36 2 fittings - Square The Splash Lab | Monolith B | 36 2 fittings - Square

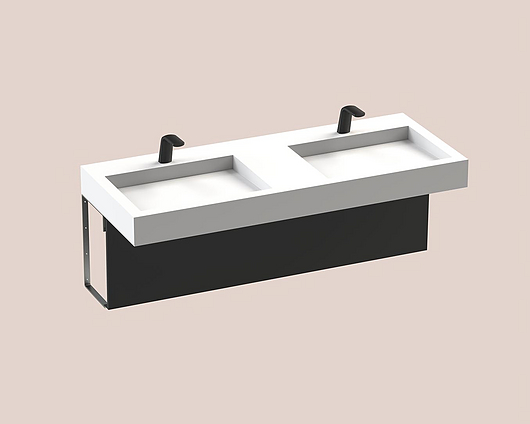

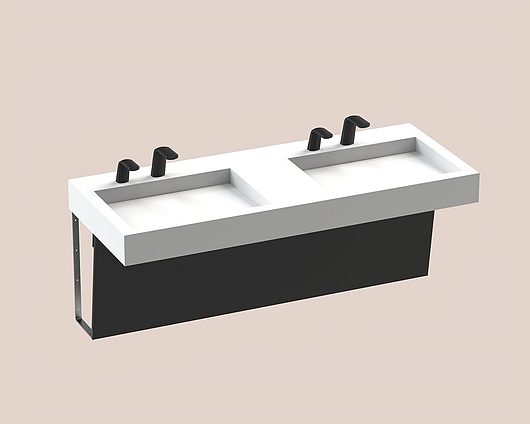

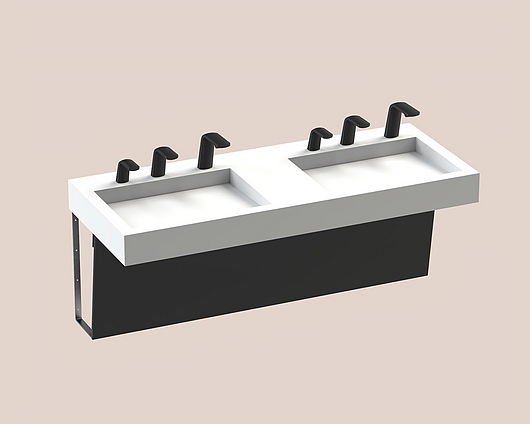

2 Users The Splash Lab | Monolith B | 62 1 fitting - square The Splash Lab | Monolith B | 62 2 fittings The Splash Lab | Monolith B | 62 3 fittings

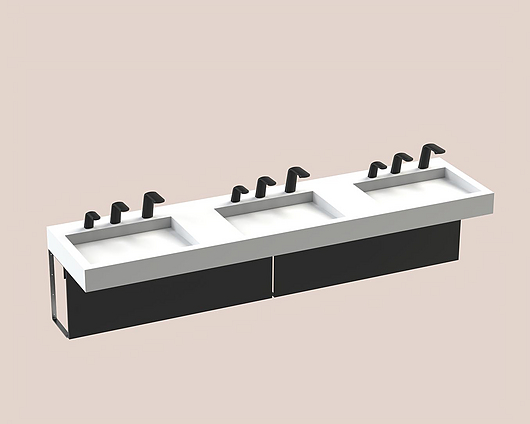

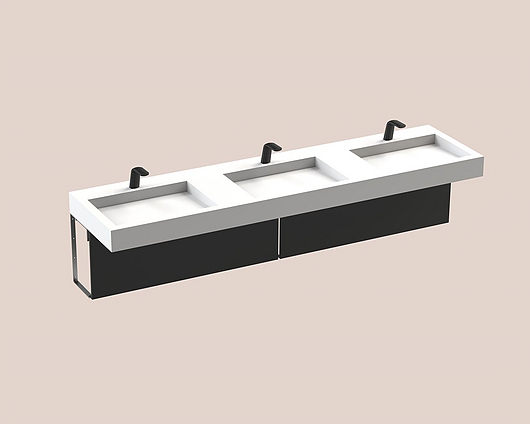

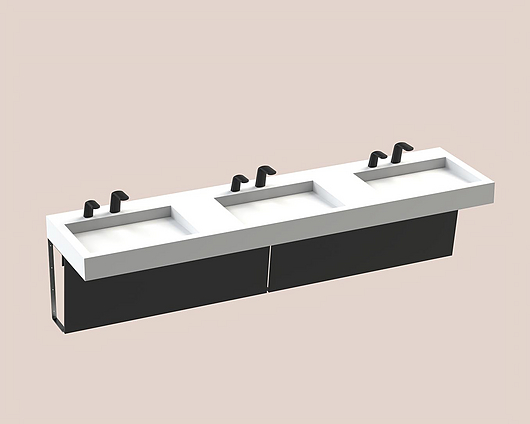

3 Users The Splash Lab | Monolith B | 96 1 fitting - square The Splash Lab | Monolith B | 96 2 fittings The Splash Lab | Monolith B | 96 3 fittings - Square

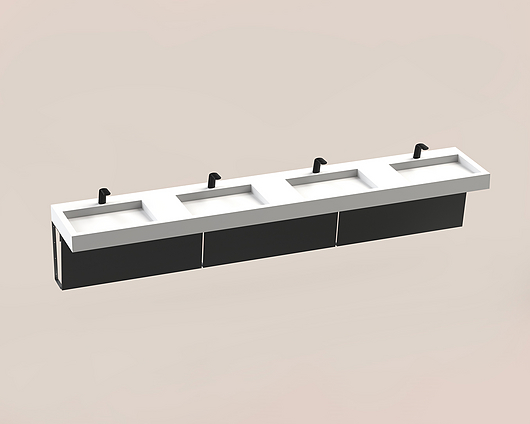

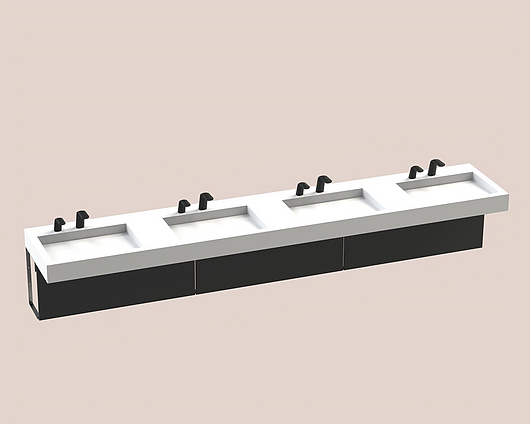

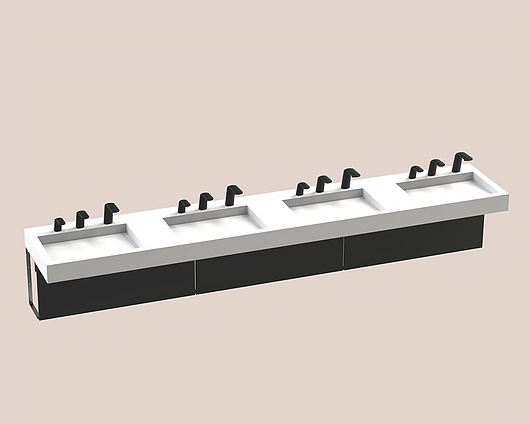

4 Users The Splash Lab | Monolith B | 130 1 fitting The Splash Lab | Monolith B | 130 2 fittings - Square The Splash Lab | Monolith B | 130 3 fittings - square

Technical Data

  • Sink composition: 100% solid surface (acrylic/resin)
  • Bracket composition: Stainless Steel
  • Pipeskirt composition: Stainless steel
  • Pipeskirts: available in stainless steel, black, or white powder coat
  • Pipeskirt style: Square or angled
  • Fabrication: Fabricated using CNC and hand-finishing in Los Angeles and British Columbia

Monolith System

Designed in conjunction with architects, Monolith offers total freedom of expression, within a system of modules that are pre-configured to meet building codes and offer an intuitive installation process. Manufactured in North America using CNC machines and hand-finishing techniques, Monolith is a competitive, contemporary design solution that captures the quality of old-world craftsmanship. Installed worldwide at such recognizable locations as The Staples Center and London’s Design Museum, Monolith is effortlessly minimal yet hard-wearing, and versatile enough for any restroom. The four series comprise a comprehensive line that complements any aesthetic, fixture type, and installation needs:

  • Monolith A Series: A trough sink for deck-mounted fixtures (1-4 users)
  • Monolith B Series: A divided sink with countertops for deck-mounted fixtures (1-4 users)
  • Monolith C Series: A trough sink for wall-mounted fixtures (1-4) users
  • Monolith D Series: A divided sink with countertops for wall-mounted fixtures (1-4 users)
