Fire Resistant Panel - Trimoterm FTV | Trimo

  • Available in

  • Use

    Logistic center & warehouse, production facility, power plant & oil and gas, food & hygiene, aviation, sport & leisure, data center, retail, show rooms, public buildings
  • Applications

    Insulated façade, insulated flat roof, soffit, internal wall, ceiling
  • Characteristics

    Total envelope solution, tailor-made project solutions, design flexibility, aesthetics, prefabricated, self-supporting, load-bearing (backing wall possibility), single-spanning, long spans, fast & easy installation, extreme thermal values, mineral wool insulation, fire resistance, noise protection, water & airtightness, moisture resistant, durability, burglary resistance, easy cleaning, sustainability, 99% recyclability, BIM libraries
  • Format

    Length: up to 14000mm; module width: 600mm - 1200mm; thickness: 50mm, 60mm, 80mm, 100mm, 120mm, 133mm, 150mm, 172mm, 200mm, 240mm, 250mm; Vertical/Horizontal/Segmental
  • Certification

    CE, Zulassung, LPCB, FM
Trimo Logo

Contact manufacturer

Trimo

Trimo Logo

Contact manufacturer

Trimo

More from Trimo

Website Phone

More about this product

Trimoterm FTV from Trimo provides a complete envelope solution system.

Trimoterm FTV is the first panel in the world made with a mineral wool core in the year 1987. It covers a total envelope system solution from a flat roof, facade, soffits, internal wall, and ceilings. The Trimo panel works as an acoustic panel, carrier backing wall for secondary cladding, blast panel with the protection of 1 bar blast, a hygienic panel with a smooth surface, and a powerful fire panel with fire resistance up to 4 hours.

Complete Envelope Solution

  • Insulated façade, insulated flat roof, soffit, internal wall, ceiling
  • Tailor-made project solutions; prefabricated corners, aluminum extrusions,…
  • Design flexibility; wide range of profile type finishes
  • Versatile and reliable backing wall system or carrier structural wall for secondary cladding solutions
  • Wide range of color options

Applications

Typically used for logistic center & warehouse, production facility, power plant & oil and gas, food & hygiene, aviation, sport & leisure, data center, retail, showrooms, public buildings.

Maximum Safety

  • Class A1 non-combustible mineral wool insulation core
  • Exceptional fire resistance up to class EI240
  • Reaction to fire A2-s1, d0
  • Advanced thermal and sound insulation
  • The highest level of airtightness and watertightness
  • Burglary resistance RC3 class
  • Certified product
Color range Bright, medium, dark
Unit dimension T (mm) 60-250
M (mm) 600-1200
L (mm) up to 14000
External steel sheet Thickness t (mm) 0.5-0.7
Profile G, S, V, V2, M, M2, M3
Internal steel sheet Thickness t (mm) 0.5-0.7
Profile G, S, V, V2, M, M2, M3
Features Mineral Wool core (EN 14509) Power T, Power S, Perform C, Perform R
Weight (kg/m2) up tp 40.2
Reaction to fire A2-s1, d0
Fire resistance up to El 240
Thermal transmittance U (W/m/m2K) as low as 0.15
Airborn sound insulation Rw(C:Ctr) (dB) up to 32(-1;-2)
Water permeability (EN 14509) class A (1200Pa)
Air permeability (EN 14509) n=1.5: C=0.00005
Burglary resistance class (EN 1627) RC3

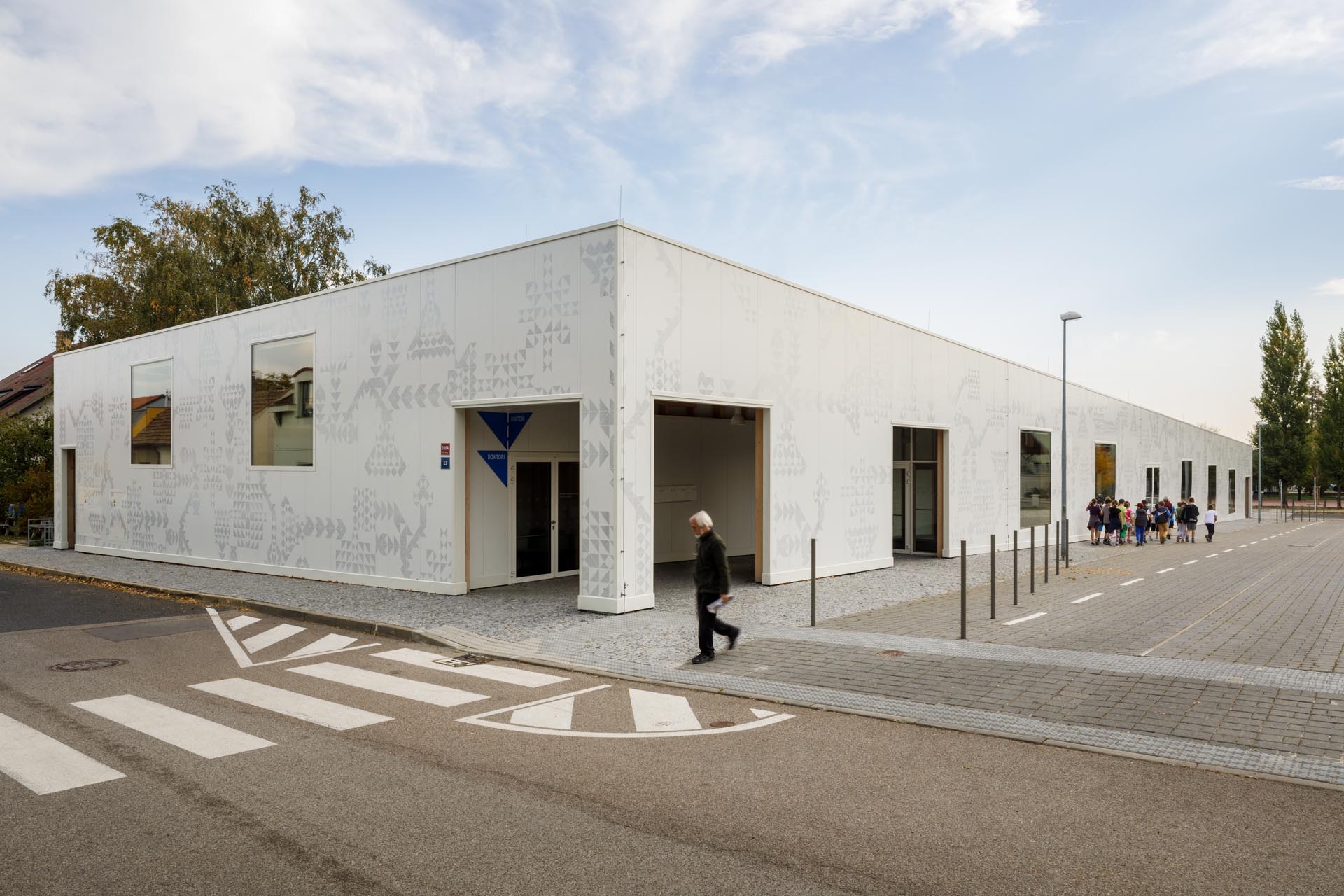

Product gallery
