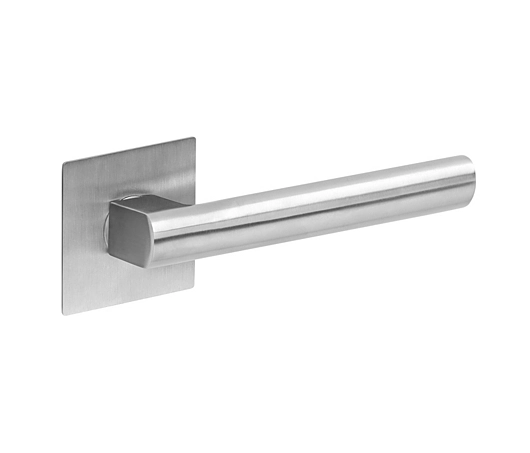

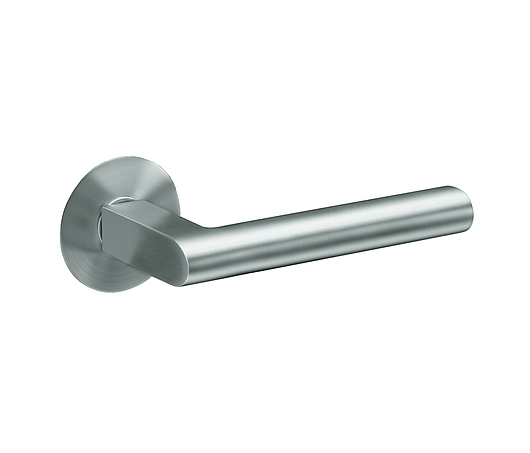

Door Handle Madeira EPL45/EPL45Q (71/83) | Karcher Design

The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

PLAN DESIGN Rose EZ180/EZ180Q With Lever

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

EZ180	EZ180Q

• Clip rose
• With 7mm lugs
• Thread in bushing
• Nylon floating bearing
• Sprung loaded inner plate with attached lever
• Heavy-duty bolt through M4 fixings
• 8mm offset drilled spindle


• Mounting versions: flush (Karcher milling template Z600D) or surface mounting.
• Door thickness: 40-50mm, depending on mounting and door version (rebated or flush)
• For a flush mounting, the leftover wood must be at least 4 mm.


• Attention: Before mounting check length of profile cylinder

Options

• OS – without escutcheon
• BB – supplied with lever key escutcheons
• PZ – supplied with euro profile escutcheons
• BAD – supplied with bathroom turn/release set

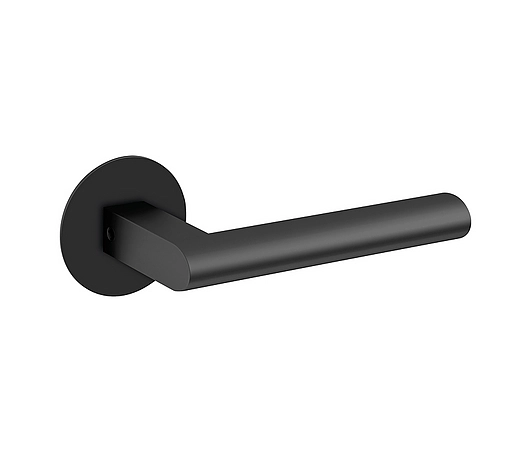

Finish code 71	Finish code 83
EPLXX OS 71 – without escutcheon EPLXX BB0 71 – supplied with lever key escutcheons EPLXX PZ0 71 – supplied with euro profile escutcheons EPLXX BAD 71 – supplied with bathroom turn/release set	EPLXX OS 83 – without escutcheon EPLXX BB0 83 – supplied with lever key escutcheons EPLXX PZ0 83 – supplied with euro profile escutcheons EPLXX BAD 83 – supplied with bathroom turn/release set
