The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

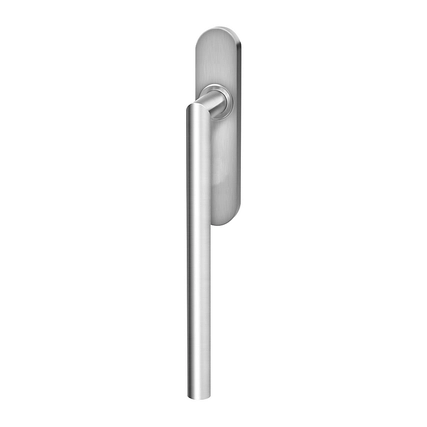

Lift and Slide Door Handle EHS28
- Secret face fixing plate 160mm x 34mm x 14,5mm
- Fixed with M6 x 25 threaded screws
- Sprung loaded inner plate with attached lever
- Nylon floating bearing
- Solid spindle 9/10mm
- Screw fixing center 80 mm
- Diameter of handle: 19mm
Karcher Article No.
Finish: Satin stainless steel (finish code 71)
- EHS28 UN 71 Inner plate with lever handle, blank
- EHS28 PZ 71 Inner plate with lever handle, Euro Profile 69 mm
- EHSSET28 UN 71 Sliding door handle set, Inner plate with lever handle+outside sliding door handle, blank
- EHSSET28 PZ 71 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside sliding door handle, blank
- EHSSET28 DD 71 Sliding door handle set, Inner + outside plate with lever handle, Euro Profile 69 mm
Finish: Oil rubbed bronze (finish code 81)
- EHS28 UN 81 Inner plate with lever handle, blank
- EHS28 PZ 81 Inner plate with lever handle, Euro Profile 69 mm
- EHSSET28 UN 81 Sliding door handle set, Inner plate with lever handle+outside sliding door handle,
blank - EHSSET28 PZ 81 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside sliding door handle, blank
- EHSSET28 DD 81 Sliding door handle set, Inner + outside plate with lever handle,Euro Profile 69 mm
Finish: cosmos black (finish code 83)
- EHS28 UN 83 Inner plate with lever handle, blank
- EHS28 PZ 83 Inner plate with lever handle, Euro Profile 69 mm
- EHSSET28 UN 83 Sliding door handle set, Inner plate with lever handle+outside sliding door handle,
blank - EHSSET28 PZ 83 Sliding door handle set, Inner plate with lever handle, Euro Profile 69 mm + outside sliding door handle, blank
- EHSSET28 DD 83 Sliding door handle set, Inner + outside plate with lever handle, Euro Profile 69 mm
