Pull Handle ES46/ES46Q (83/71)
  • Available in

  • Use

    Pull handle
  • Applications

    Residential, commercial
  • Characteristics

    Made of stainless steel, adhere to industry guidelines, designed by Karcher Design with recognized designers, trademark fixing assembly
  • Certification

    In accordance to DIN/EN1906

3 General Catalogs

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Karcher Design Logo

Contact manufacturer

Karcher Design

Karcher Design Logo

Contact manufacturer

Karcher Design

More from Karcher Design

Website Phone

More about this product

The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

To suit lever handle ER46Q Seattle

ES46 (83) ES46Q (71)
Fixing center: 400mm
Overall: 435mm
Handle diameter: 19mm x 22 mm
Fixing center: 300 mm, 400mm
Overall: 325 mm, 425mm
Handle diameter: 19mm x 22 mm

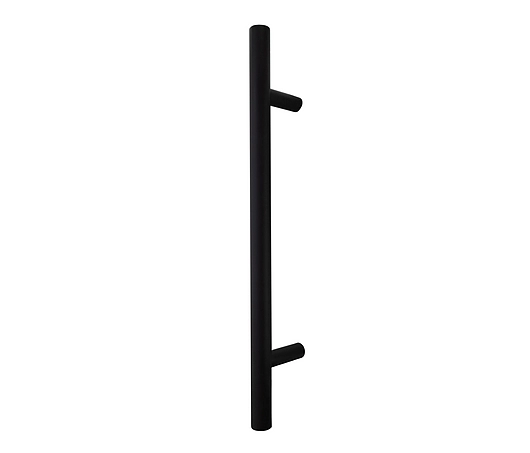

Finish: cosmos black
Karcher article no.:
ES46 400 83
Finish: satin stainless steel
Karcher article no.:
ES46-300 71
ES46-400 71

Features

  • T - shape, stainless steel tube
  • 2 fixing points
  • Fixing with M8 single bolt through fixing or back to back pair fixing
  • For timber, metal, PVC or glass doors

Bolt Fixings

  • EZ1060 back to back fixing as pair for timber, metal or PVC door
  • EZ1061 back to back fixing as pair for glass door
  • EZ1062 bolt through fixing for glass door with cover caps on the opposite side
  • EZ1063 secret face fixing for timber doors
  • EZ1064 secret face fixing for frame/PVC doors
  • EZ1065 bolt through fixing for timber or frame door with cover caps on the opposite side
  • EZ1066 bolt through fixing without cover caps (single fixing)
