ah! Pivot | panoramah!®

Share
  • Use

    Frameless, insulated pivoting doors
  • Applications

    Residential, Commercial, Restaurants, Hotels, Corporate
  • Characteristics

    Aluminum structure, self supporting glass, limitless number of rails, ah!60 thermal insulation up to 0.708W/m².K, sound insulation: 44 dB, security RC4, ah!38 thermal insulation up to 0.816W/m².K, sound insulation: 41 dB, security RC2
  • Format

    Pivot
  • Sizes

    ah!60 vertical profile: 23mm, maximum leaf dimensions: 9000mm. Maximum glazed area: 29m2 (double glazing) or 19m2 (triple glazing). Glass thickness: 60mm. ah!38 vertical profile: 20mm, maximum leaf dimensions: 6000mm. Maximum glazed area: 19m2 (double glazing) or 6m2 (triple glazing). Glass thickness: 38mm.
  • Certification

    ISO 9001:2015 Quality Certified

2 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

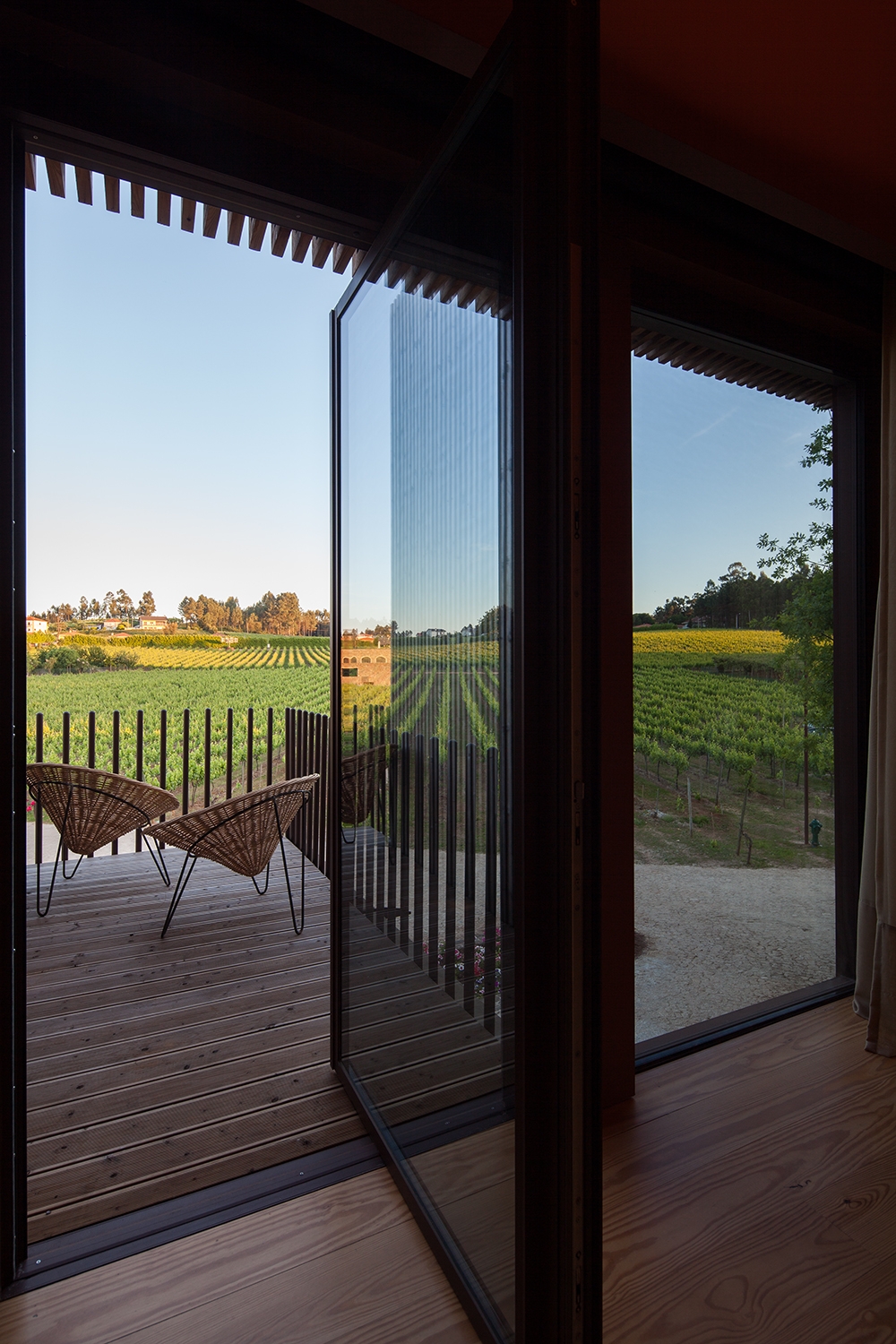

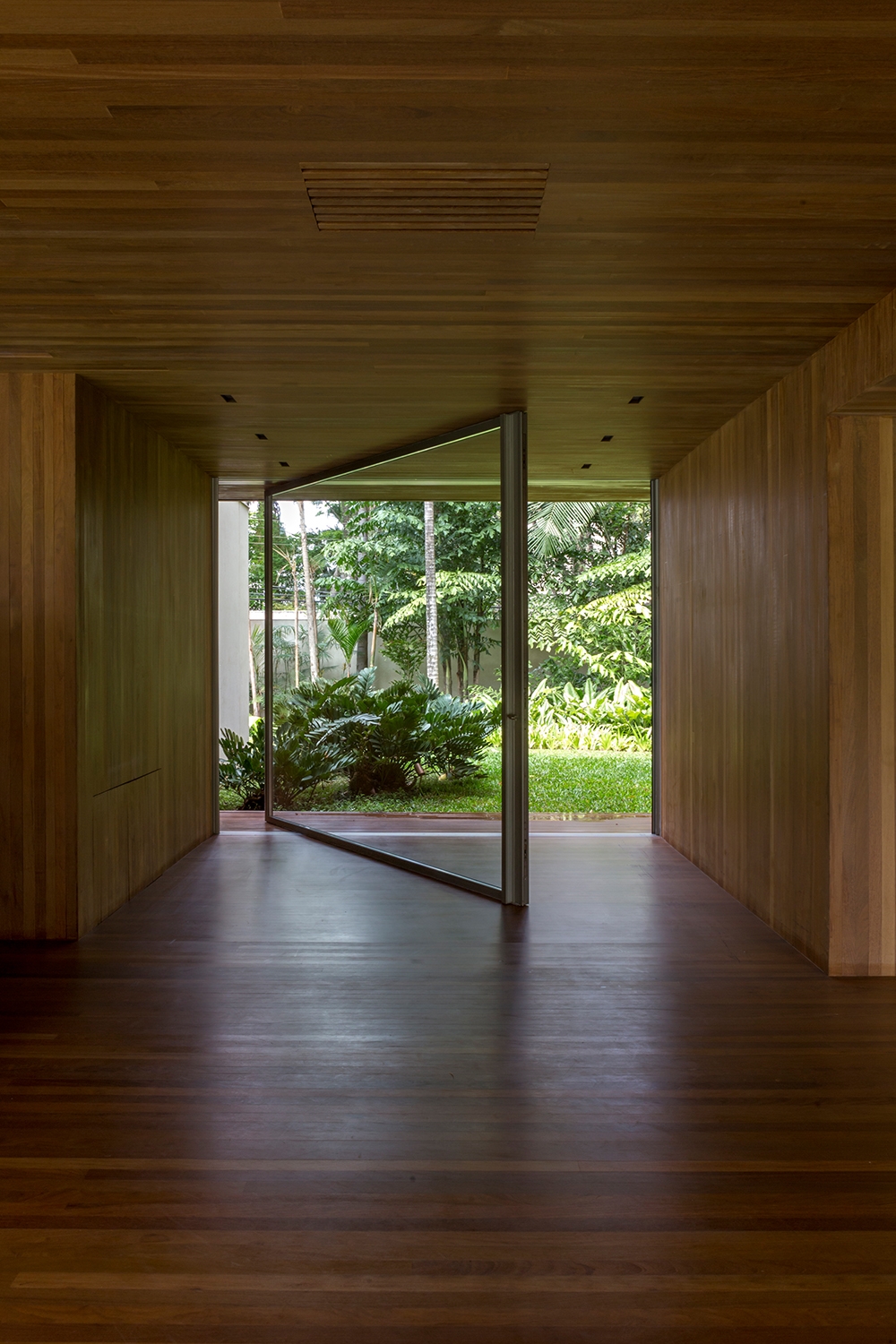

In this case, panoramah!® presents Pivot, an opening system that functions by means of a pivoting component with a central or side rotation axis. Through this system, large glass surfaces are able to be rotated and opened through both sides of a window.

ah! Pivot is ideal for openings where windows cannot be slid or sashed due to lack of space; by pivoting in its place, the ah! Pivot system is a solution for narrow spaces, as well as an aesthetic solution that challenges the stability of space.

Characteristics

  • ah!60 thermal insulation up to 0.708W/m².K, sound insulation: 44 dB, security RC4.
  • ah!38 thermal insulation up to 0.816W/m².K, sound insulation: 41 dB, security RC2.

Sizes

  • ah!60 vertical profile: 23mm, maximum leaf dimensions: 9000mm. Maximum glazed area: 29m2 (double glazing) or 19m2 (triple glazing). Glass thickness: 60mm.
  • ah!38 vertical profile: 20mm, maximum leaf dimensions: 6000mm. Maximum glazed area: 19m2 (double glazing) or 6m2 (triple glazing). Glass thickness: 38mm.
