Minimalist Window - ah! Corner | panoramah!®

  • Available in

  • Use

    Frameless, insulated sliding doors and windows
  • Applications

    Residential, Commercial, Restaurants, Hotels, Corporate
  • Characteristics

    Aluminum structure, self supporting glass, limitless number of rails, ah!60 thermal insulation up to 0.708W/m².K, sound insulation: 44 dB, security RC4, ah!38 thermal insulation up to 0.816W/m².K, sound insulation: 41 dB, security RC2
  • Format

    Corner
  • Certification

    ISO 9001:2015 Quality Certified

2 General Catalogs

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
panoramah!® Logo

Contact manufacturer

panoramah!®

panoramah!® Logo

Contact manufacturer

panoramah!®

More from panoramah!®

Website Phone

More about this product

panoramah!® Minimal Frame Window is a sliding aluminum casement system that challenges the structural properties of glass, enabling the execution of large glazed areas with the use of vertical, minimal (slender) aluminum profiles. Unlike traditional casement systems, glass is panoramah!®’s self-supporting, main component, while the aluminum frame takes on the secondary functions of guiding its sliding motion, providing additional structural reinforcement and ensuring the window’s sealing capacity.

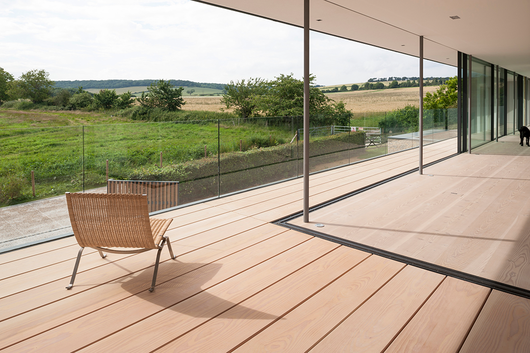

In this case, panoramah!® presents Corner, a framed angle setup that allows two bi-parting units to slide without the need for a fixed vertical upright.

The perception of interior space is heavily altered by the elimination of a vertex; once the corner of a room disappears, it loses its rigid, enclosed rationality, resulting in a new, loose, and open space, tightly connected to the exterior.

Hurst House | John Pardey Architects + Ström Architects | Buckinghamshire, United Kingdom | © Andy Stagg

In order to enhance the illusion of continuity between interior and exterior, the frames of the windows can be hidden within the floor and ceiling, leaving a single plane extending from interior to exterior.

Characteristics

  • ah!60 thermal insulation up to 0.8W/m².K, sound insulation: 44 dB, security RC4.
  • ah!38 thermal insulation up to 1.165W/m².K, sound insulation: 41 dB, security RC2.

Sizes

  • ah!60 vertical profile: 20mm, maximum leaf dimensions: 9000mm, maximum glazed area: 29m2 (double glazing) or 19m2 (triple glazing), glass thickness: 60mm.
  • ah!38 vertical profile: 20mm, maximum leaf dimensions: 6000mm, maximum glazed area: 19m2 (double glazing) or 6m2 (triple glazing), glass thickness: 38mm.
