Wood – Solid Wood Linear Ceilings & Walls | Hunter Douglas Architectural (Europe)

  • Use

    Interior ceilings and wall systems
  • Applications

    Corporate, retail, hospitality, healthcare, educational, residential
  • Characteristics

    Environmentally friendly and durable solution, made-to-measure, FSC/PEFC certification, high acoustic performance

1 Supplementary File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

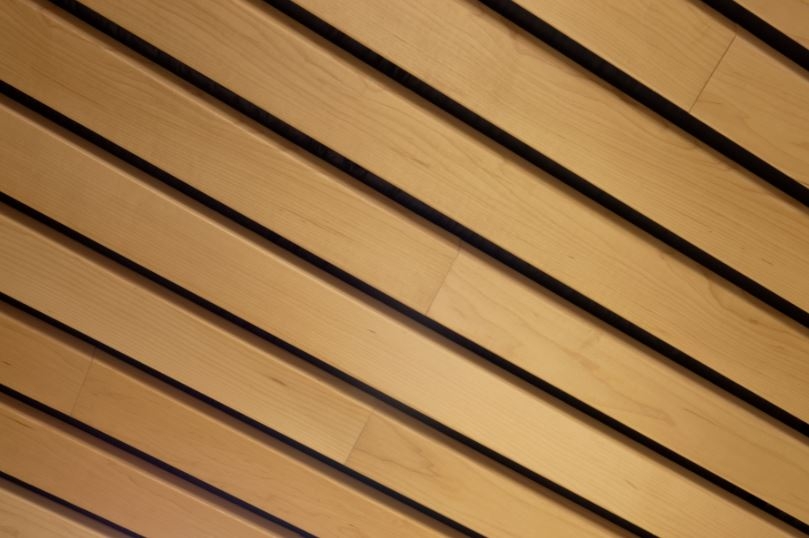

Hunter Douglas Architectural presents Linear Solid Wood, a ceiling and wall system wood solution in it's most natural form. A wide range of wood species are available, all with their own characteristics. Various panel widths can be combined creating a unique look. The system is easy to install and allows the ceiling to be demountable to give access to the plenum.

The advantage of the system is that it is a made-to-measure solution, meaning no cutting adjustments are required at site, significantly reducing the installation time and cost. Any design is possible as the panel and gap size is fully customizable.


  • Environmentally friendly
  • Durable solution
  • A made-to-measure solution, minimizing installation time and site adjustments
  • Acoustic performance up to alpha w 0.70 (without optional acoustic mat)
  • Reaction to fire classification B-s2,d0 according to EN 13501-1 (higher classification upon request)
  • An all-natural and sustainable wooden ceiling or wall solution with FSC/PEFC certification
  • Curved solutions possible by using a special carrier or CNC cutting.

System Characteristics

A perfect fit on-site is guaranteed, as the panels are made-to-measure. This avoids any cutting on-site, reducing the installation costs and maintaining the beautiful details of the wooden panels. The Solid Wood Linear ceiling and wall system are developed in such a way to maximize efficiency and minimize installation costs. The specially developed suspension system consists of pre-fixed clips, which are easily put together in the carriers. Light fixtures, vents or speakers can be easily fixed into the ceiling.

Linear Solid Wood

Ceiling Solution:

The Solid Wood Linear ceiling system consists of solid wooden panels with pre-fixed clips, which allows them to be easily fixed onto the carrier. The wooden panels are supplied in various or fixed lengths and are connected with a tongue and groove connection to create a seamless joint.

  • Three demountable solutions; Linear Open, Closed & Multi-panel
  • Quick installation with pre-assembled clips
  • Curved and undulating shapes possible
  • Panel widths from 75mm up to 180mm
  • Combine various panel widths with the Multi-panel system

Wall Solution:

The Solid Wood Linear wall system is developed to create a natural, made-to-measure wall solution. The aluminum SLR profile, together with the pre-assembled clips guarantee easy installation in a horizontal or vertical direction.

  • Take the ceiling to the wall, in a horizontal or vertical direction
  • Combine various panel widths into one system
  • Quick installation with pre-assembled clips
  • Curved wall solutions also possible


Hunter Douglas Architectural offers an extensive choice of wood species available, ranging from the deep warm colors including Western Red Cedar, Merbau or Mahogany to the light wood tones of Poplar, Maple or Ayous.

The wooden slats may have a planed, fine-sawn and rough-sawn surface finish. The wooden panels are finished as standard with high-quality varnish to protect the wood against moisture, dust, and dirt. Other wood species are available upon request.

For more information regarding the available colors, click here to see the complete Wood Species and Finishes Selector.

Please find more detailed information here.
