Drive-Over In-Ground Recessed Linear LED Light | Alcon Lighting®

• Available in

• Use

  Exterior lighting

• Applications

  Driveways, walkways, entries, plazas, exterior paths, concrete installations, hardscapes, commercial exteriors, hospitality exteriors, retail exteriors

• Characteristics

  Durable military-grade aluminum construction; field-cuttable linear design; glare-free frosted lens; 120-degree beam angle; 5000 lb drive-over rating; static white and RGBW options; 24V; continuous runs up to 32 ft.

• Format

  In-ground recessed linear LED fixture for concrete and drive-over applications

• Colors

  Anodized silver, custom RAL finishes

• Sizes

  3 ft., 4 ft., 6 ft. and 8 ft.; continuous runs up to 32 ft.; static white cuttable every 1.9" and RGBW cuttable every 2.46"

• Certification

  IP67 outdoor wet location rated body; IP65 outdoor rated LED tape light; cULus/UL listed for LED components; CE and RoHS for LED components (static white only); cETL listed for transformer

• Guarantee

  5 years carefree for parts & components (labor not included)

Contact manufacturer

Alcon Lighting®

Contact manufacturer

Alcon Lighting®

More from Alcon Lighting®

Website Phone Send Message

More about this product

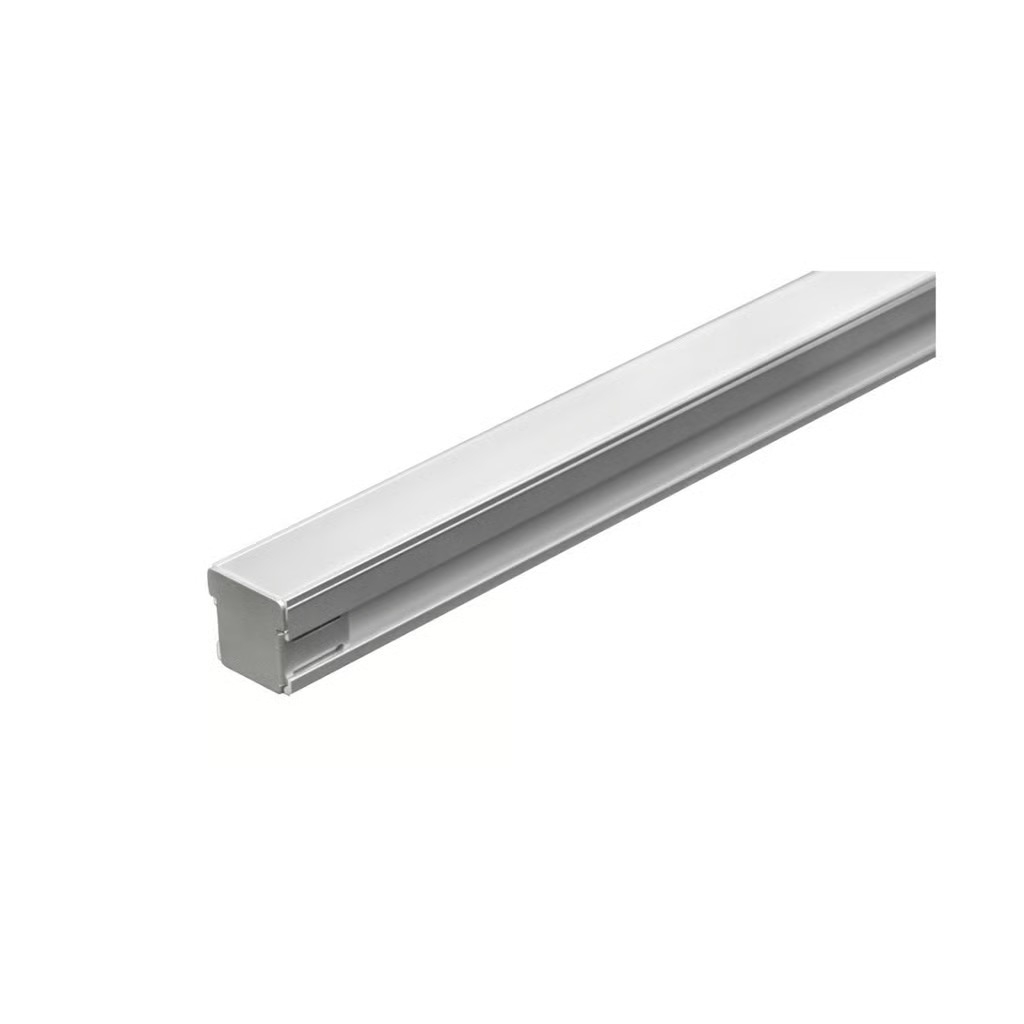

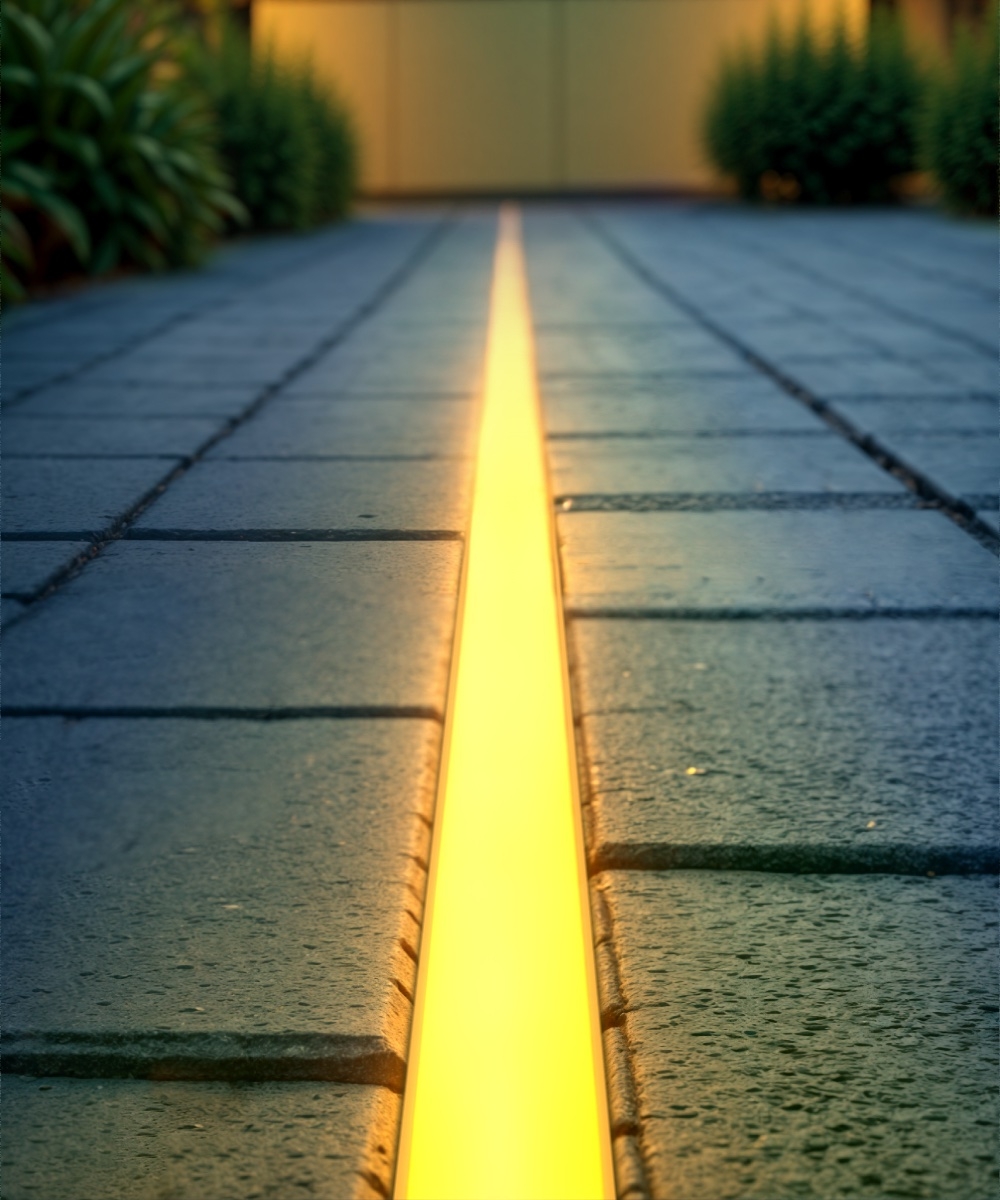

Alcon Lighting’s drive-over in-ground recessed linear LED light is an exterior linear fixture for recessed installation in concrete. The product is designed for outdoor applications where a low-profile linear source is installed flush with the surrounding surface. Static white and RGBW configurations are available within the series.

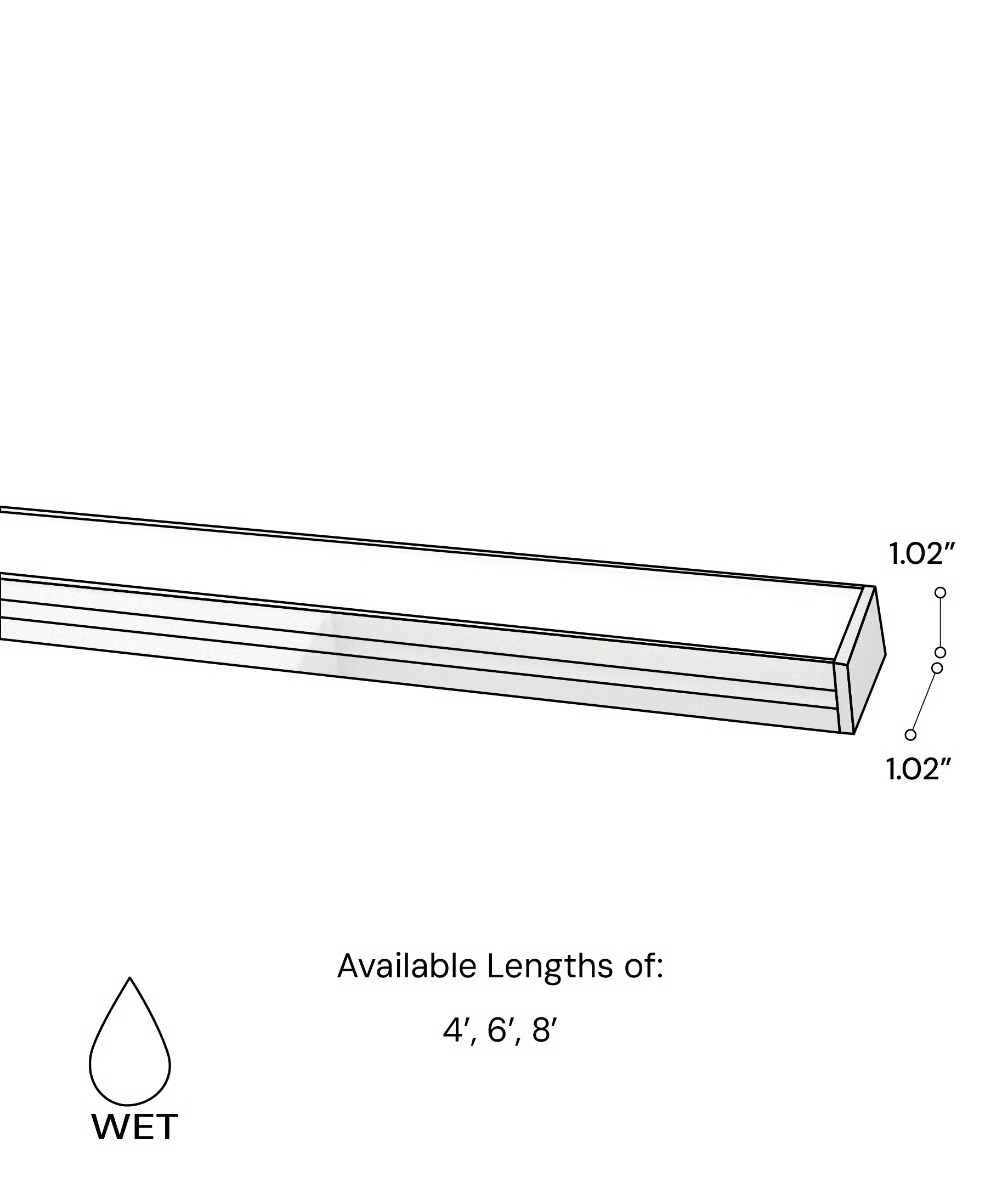

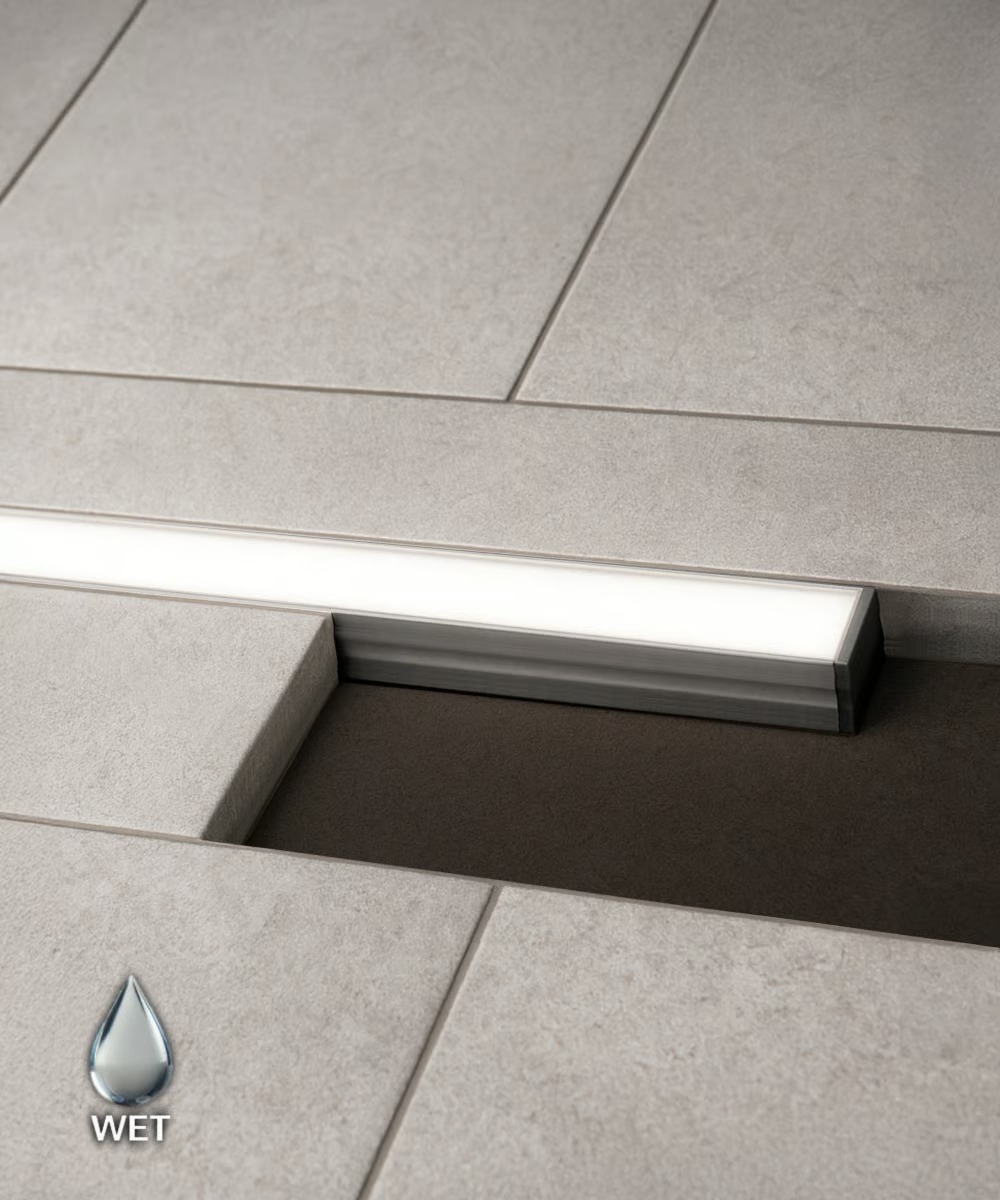

The fixture uses a military-grade aluminum housing suitable for recessed applications and is designed for installation in concrete. The frosted lens is glare-free and can be removed for future repair when required. The profile measures approximately 1.02 in. wide by 1.02 in. deep, with a low-profile exposed lens.

The RGBW version is also listed for LED components under Title 24. Installation details, drainage conditions and concrete coordination should be reviewed with project drawings before specification.

Technical Specifications

Specification	Static White	RGBW
Beam angle	120°	—
Power consumption	5.3 W/ft.	5.3 W/ft.
Light output	Approx. 245 lm/ft.	Approx. 320 lm/ft.
Color temperature	2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K	RGB + 2700K or RGB + 4000K
CRI	95+	90+
Voltage	24V LED; 120–277V system input	—
Driver / transformer	Remote driver	Remote non-dimming transformer
Dimming / control	0-10V, ELV or TRIAC, depending on system	Mobile app with WiFi, RF remote, DMX wall control, or DMX wall control with WiFi
Length options	3 ft., 4 ft., 6 ft., 8 ft., continuous runs	Continuous runs; home run required every 16 ft.
Finish	Silver anodized or custom RAL	—
