Architectural Cylinder LED Track Light Head | Alcon Lighting®

• Available in

• Use

  Interior lighting

• Applications

  Offices, classrooms, conference rooms, museums, galleries, retail spaces, hotels, restaurants, hospitality interiors and residential interiors

• Characteristics

  One-piece CNC-spun aluminum cylinder; clear tempered glass lens; multifaceted specular reflector; 90+ CRI; field-selectable color temperature; 0 to 90-degree pivot; 355-degree rotation; 15, 25 and 45-degree beam options; black hexcell louver, snoot and glow ring accessories

• Format

  Cylinder LED track head; compatible with Halo, Juno and Lightolier track styles and round or square monopoint canopies

• Colors

  White, black

• Sizes

  Small (2.25" x 3.75" track head), medium (3" x 4.125" track head), large (3.375" x 6.25" track head) and extra large (3.375" x 7.125" track head); 12W to 36W; 800 lm to 3300 lm

• Certification

  ETL/cETL listed; suitable for dry locations

• Guarantee

  3 years carefree for parts & components (labor not included)

Contact manufacturer

Alcon Lighting®

Contact manufacturer

Alcon Lighting®

More from Alcon Lighting®

Website Phone Send Message

More about this product

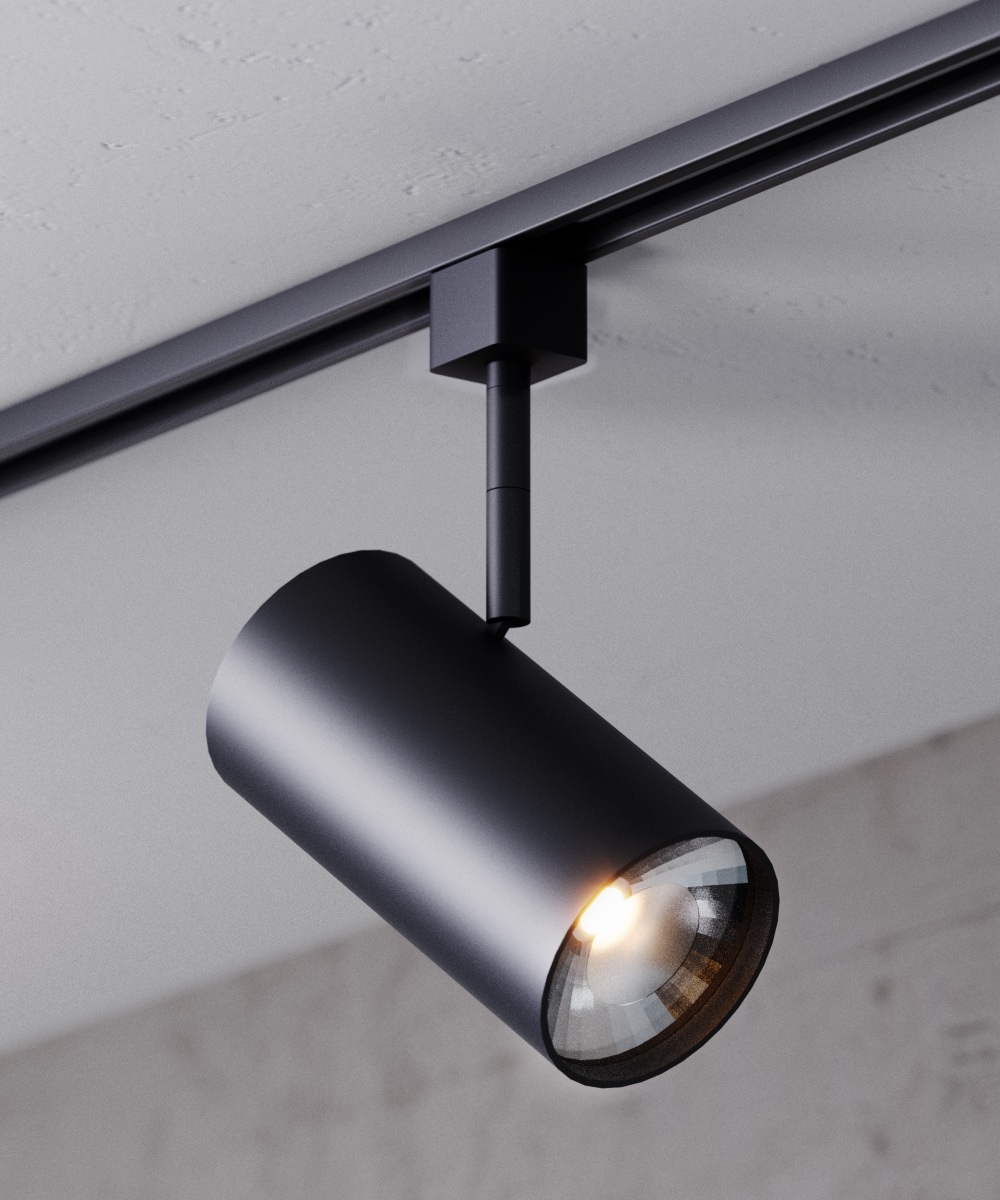

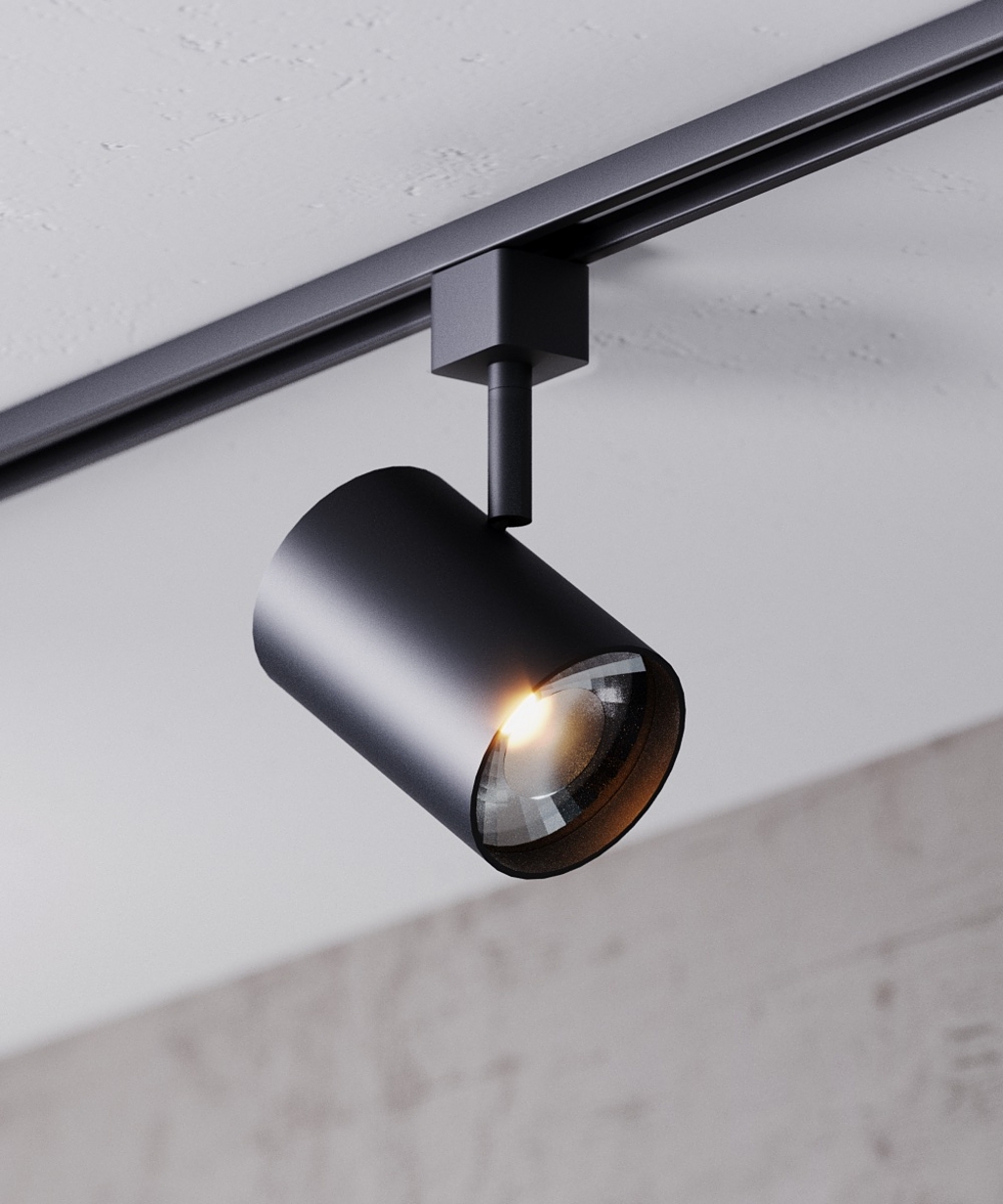

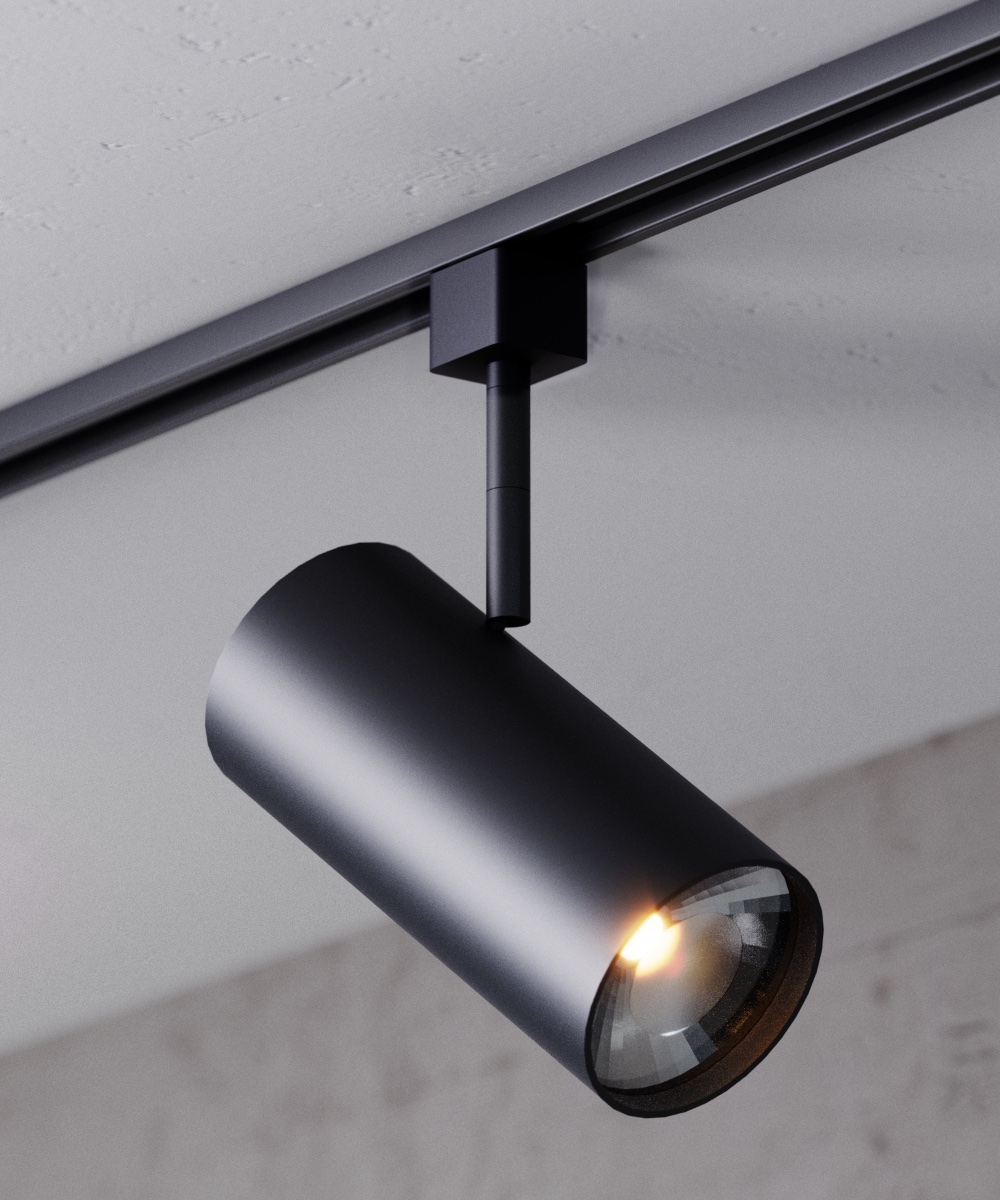

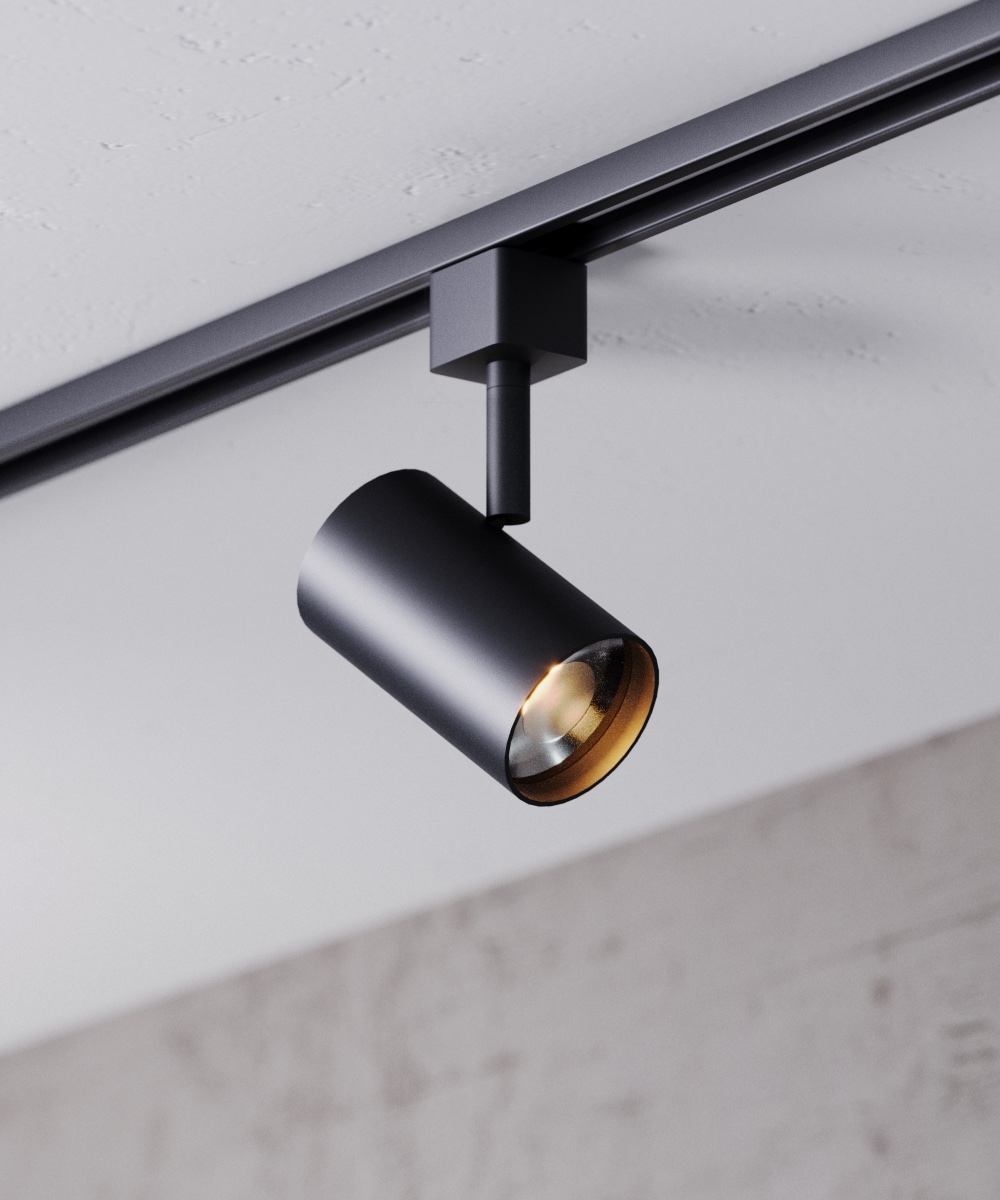

Alcon Lighting’s architectural cylinder LED track head is an adjustable track and monopoint fixture for interior applications. The product is designed for spaces that require directional illumination from a compact cylindrical source. The four size options allow the fixture family to be used across smaller accent areas, general display lighting and higher-output applications within the same project.

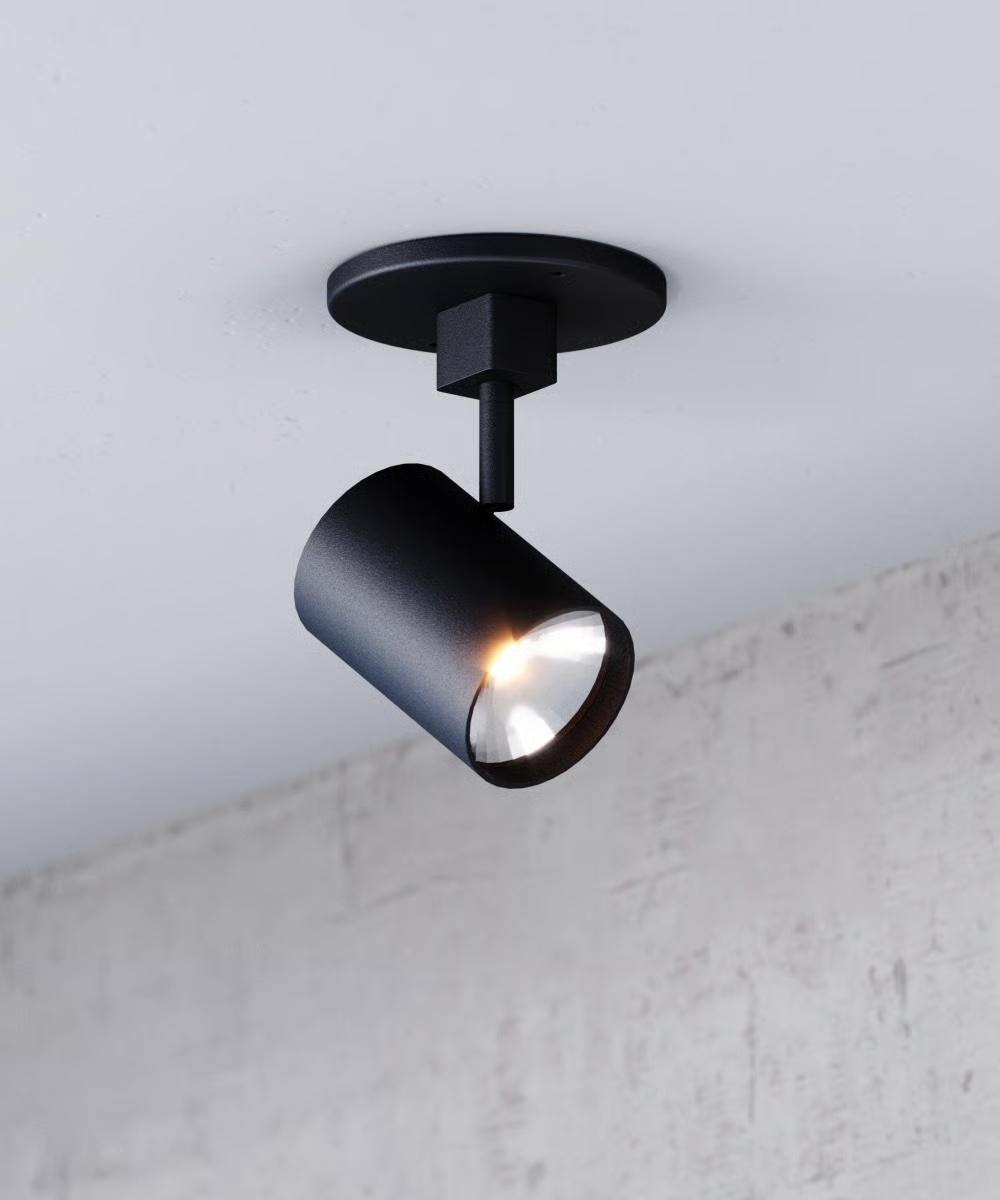

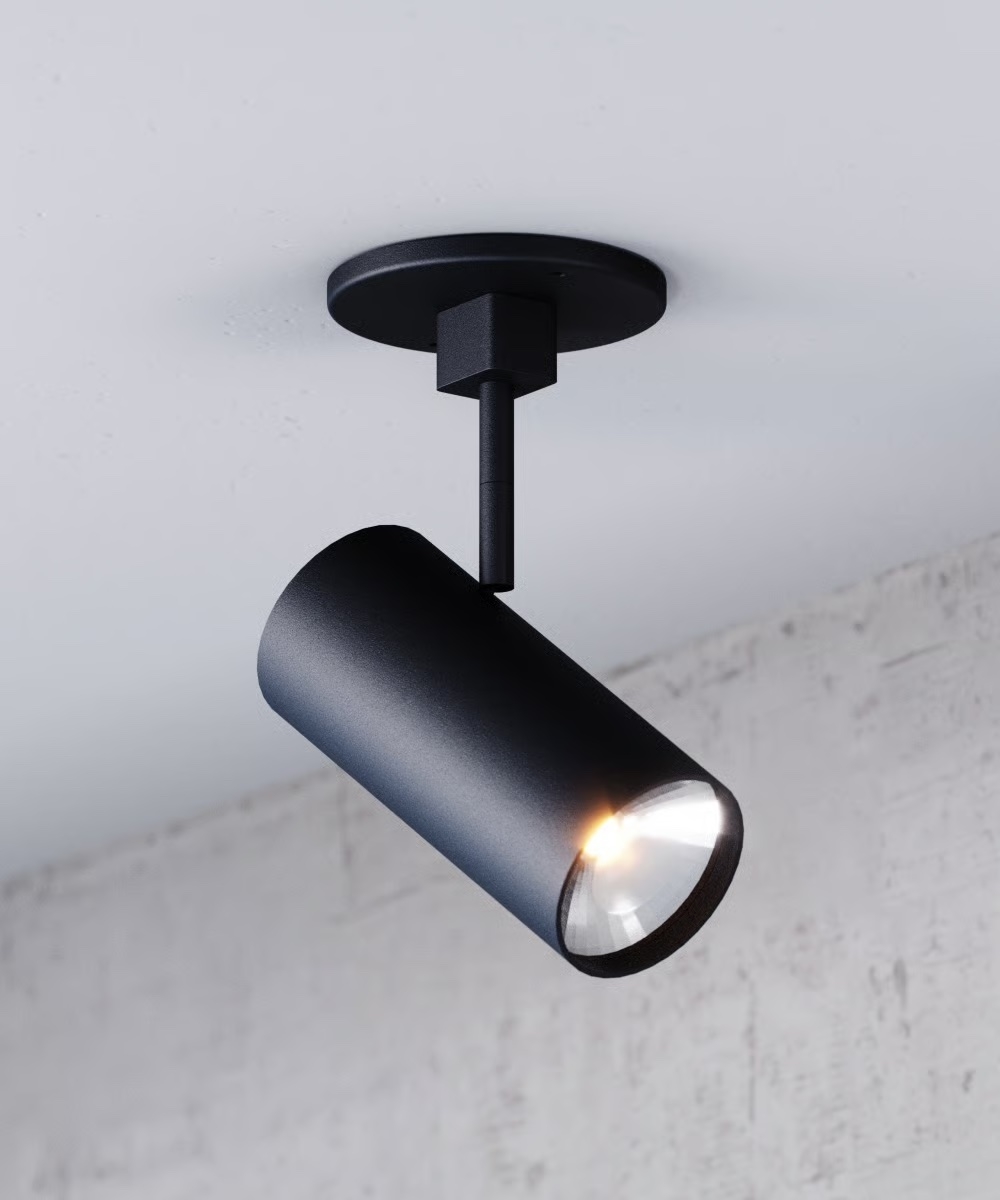

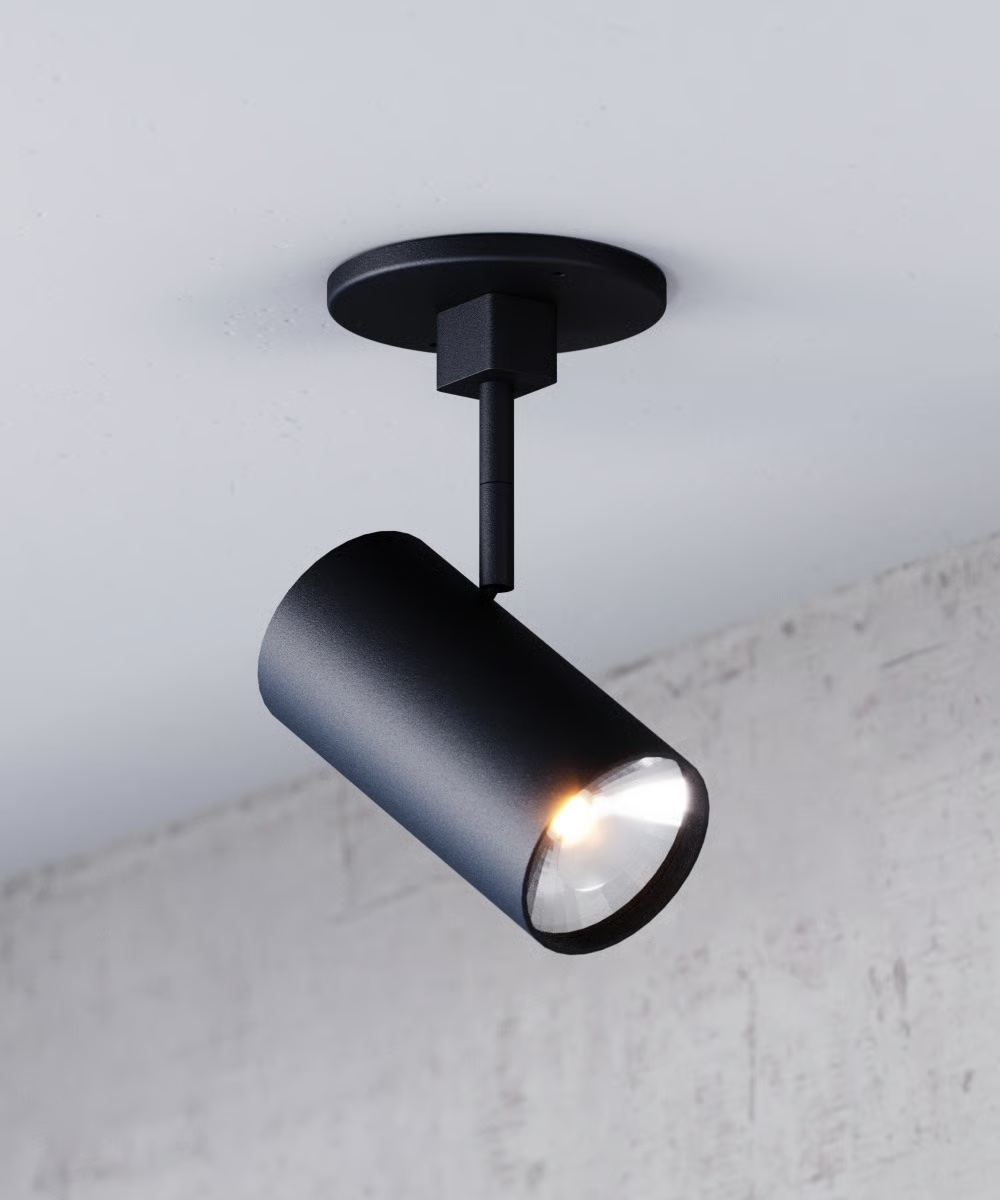

The fixture uses a precision-formed, one-piece CNC-spun round aluminum cylinder with threaded top and lens caps for assembly. It includes a clear tempered glass lens and a multifaceted specular reflector. The cylinder pivots from 0 to 90 degrees and rotates up to 355 degrees, allowing for precise aiming as layouts, displays or focal points change. The fixture is compatible with Halo, Juno and Lightolier track styles and can also be specified with round or square monopoint canopies. It is designed for 1-circuit, 1-neutral track applications.

Available Models

Small Architectural Cylinder LED Monopoint Ceiling Spot Light	Medium Architectural Cylinder LED Monopoint Ceiling Spot Light, Black	Large Architectural Cylinder LED Monopoint Ceiling Spot Light, Black
X-Large Long Architectural Cylinder LED Monopoint Ceiling Spot Light, Black	Small Architectural Cylinder LED Monopoint Ceiling Track Light	Medium Architectural Cylinder LED Monopoint Ceiling Track Light
Large Architectural Cylinder LED Monopoint Ceiling Track Light	X-Large Architectural Cylinder LED Monopoint Ceiling Track Light

Technical Specifications

Construction	CNC-spun round aluminum cylinder
Lens	Clear tempered glass
Reflector	Multifaceted specular reflector
Tilt	0–90°
Rotation	Up to 355°
Mounting	Track or monopoint
Track Compatibility	Halo, Juno and Lightolier
Track Circuit	1-circuit, 1-neutral
Available Sizes	Small, medium, large, extra-large
Power / Lumens	Small: 12W / approx. 800 lm; Medium: 18W / approx. 1,400 lm; Large: 28W / approx. 2,100 lm; Extra-large: 36W / approx. 3,300 lm
Color Temperature	Small, medium, large: 2700K, 3000K, 3500K, 4000K, 5000K; Extra-large: 3000K, 3500K, 4000K
CRI	90+
Beam Spread	15° narrow, 25° narrow flood, 45° flood
Accessories	Black hexcell louver, snoot, glow ring
Finish	White, black
Input Voltage	120V
Dimming	2-wire incandescent and ELV
Rated Life	35,000 hours L70
Warranty	3 years for parts and components, excluding labor
