Myrtus Convention Center / Ramon Esteve

  • 01:00 - 25 December, 2013
  • Translated by Lorena Quintana
Myrtus Convention Center / Ramon Esteve
Myrtus Convention Center / Ramon Esteve, Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

Courtesy of Ramon Esteve Courtesy of Ramon Esteve Courtesy of Ramon Esteve Courtesy of Ramon Esteve + 14

  • Architects

  • Location

    46530 Puçol, Valencia, Spain
  • Construction Manager

    Gonzalo Llin, Juan Antonio Ferri
  • Architect Collaborators

    Olga Badía, María Daroz, Daniela Adame
  • Project Architect

    Ramon Esteve
  • Technical Architect

    Emilio Pérez
  • Collaborators

    Silvia M. Martínez
  • Client

    Inmuebles Altia SL
  • Construction

    Construcciones Francés SL
  • Project Area

    5712.0 m2
  • Project Year

    2009
  • Photography

    Eugeni Pons, Sergio Pomar, Courtesy of Ramon Esteve, Léa Chave
Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

Text description provided by the architects. The idea of the project is to generate a building which serves to accommodate large events for up to a thousand people. The organic geometry of the building, designed on a circular grid, generates continuous and fluid spaces, inducing free movement in a flexible space.

Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

The sinuous line that generates the building envelope in plan gives it a gentle nature. Following this line, we design an alternating sequence of glass and white concrete planes, that tear the volume vertically along the perimeter of the building. Inside, these intermittent openings generate a space that is visually connected with the garden, and the interior / exterior boundaries blur. Only the walls that enclose the auxiliary program are shown as rigid and closed cores, around which the different areas are configured.

Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

The program is designed on three floors, the ground floor houses the kitchen and conference rooms with different possibilities of being compartmentalized. This gives the interior a dynamic character and can generate separate rooms. On the first floor are the offices and restaurant, and parking and other services are located in the basement.

Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

The structural typology adopted allows 22-meter spans without intermediate supports, facilitating the flexibility of uses in the conference rooms. The structure is left exposed through the interstices of the circular plates of varying diameters that make up the ceiling plane.

Courtesy of Ramon Esteve
Courtesy of Ramon Esteve

The curved geometry of the plan organizes the exterior space into three areas, two main areas with large porches that allow the possibility of hosting activities outside, and an area for services.

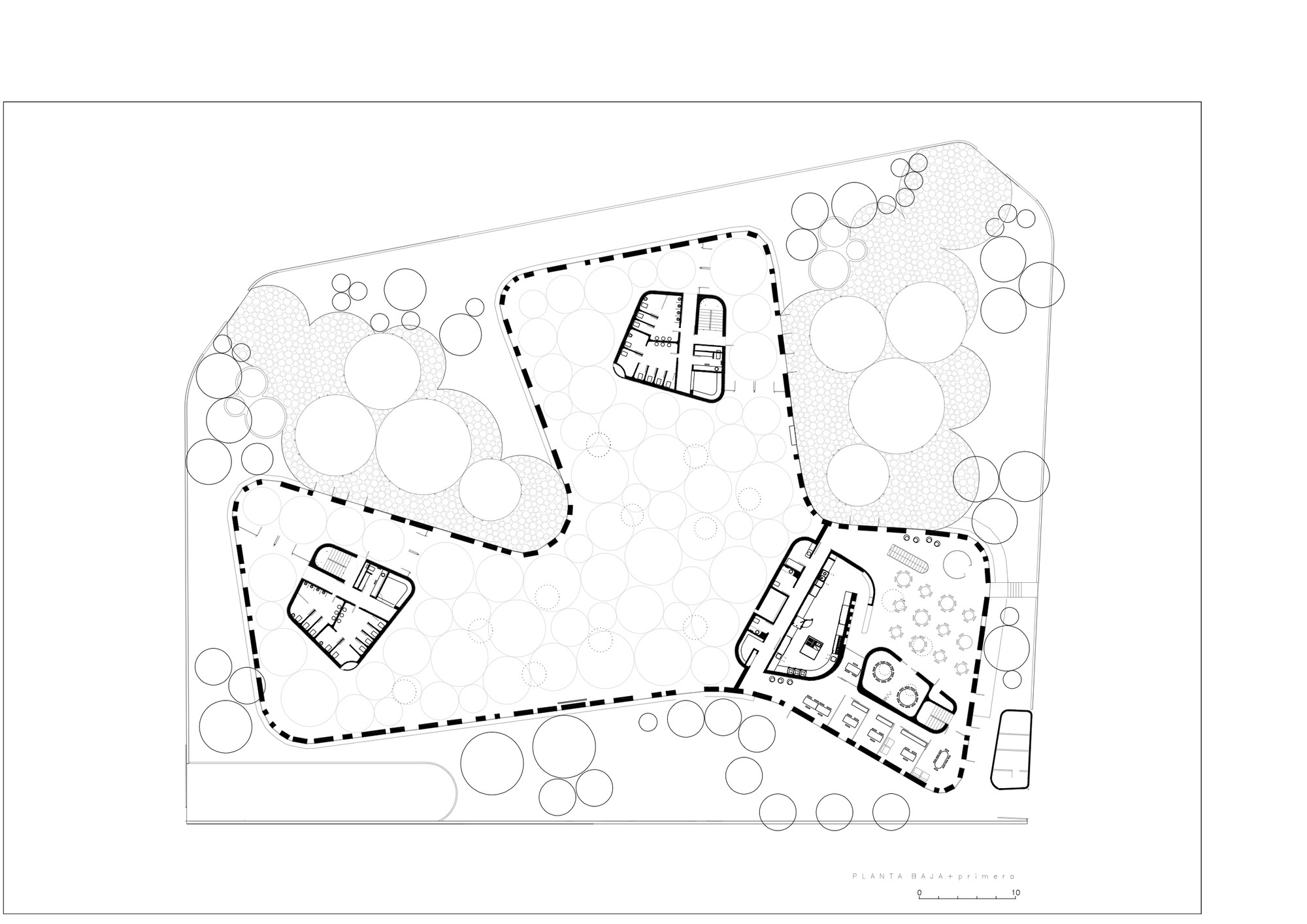

Ground Floor Plan
Ground Floor Plan
